Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 10 illustrations

Illustrations

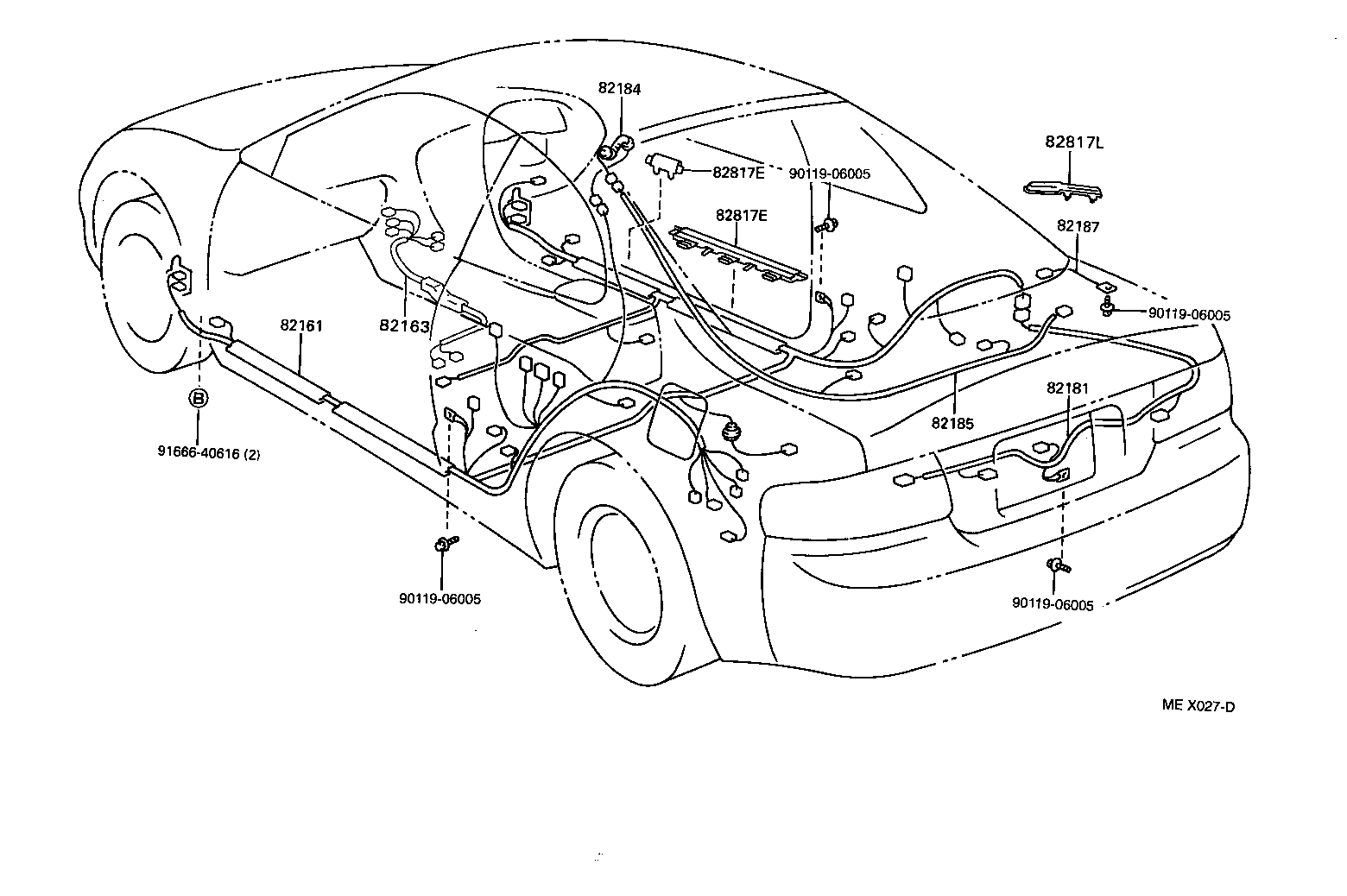

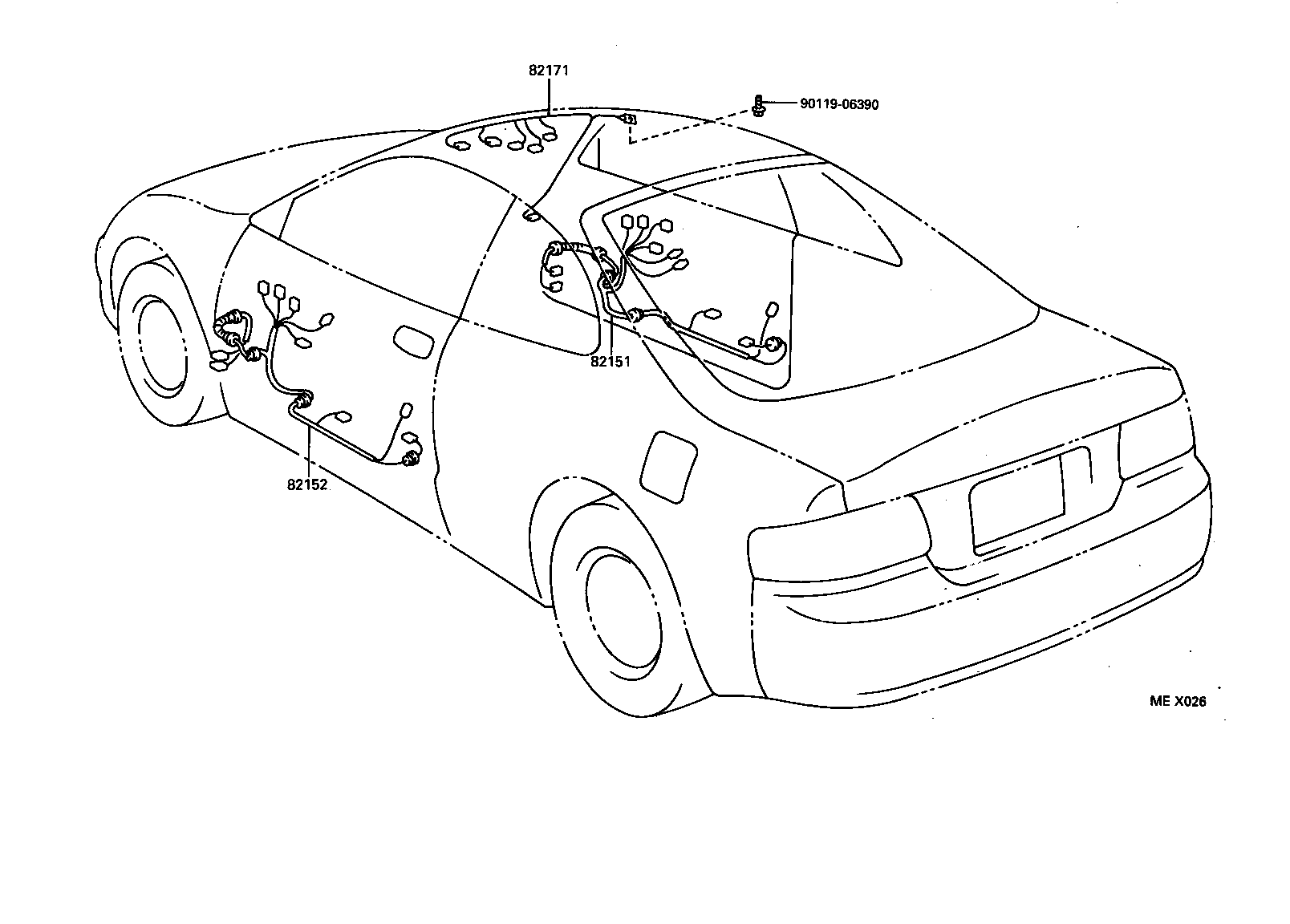

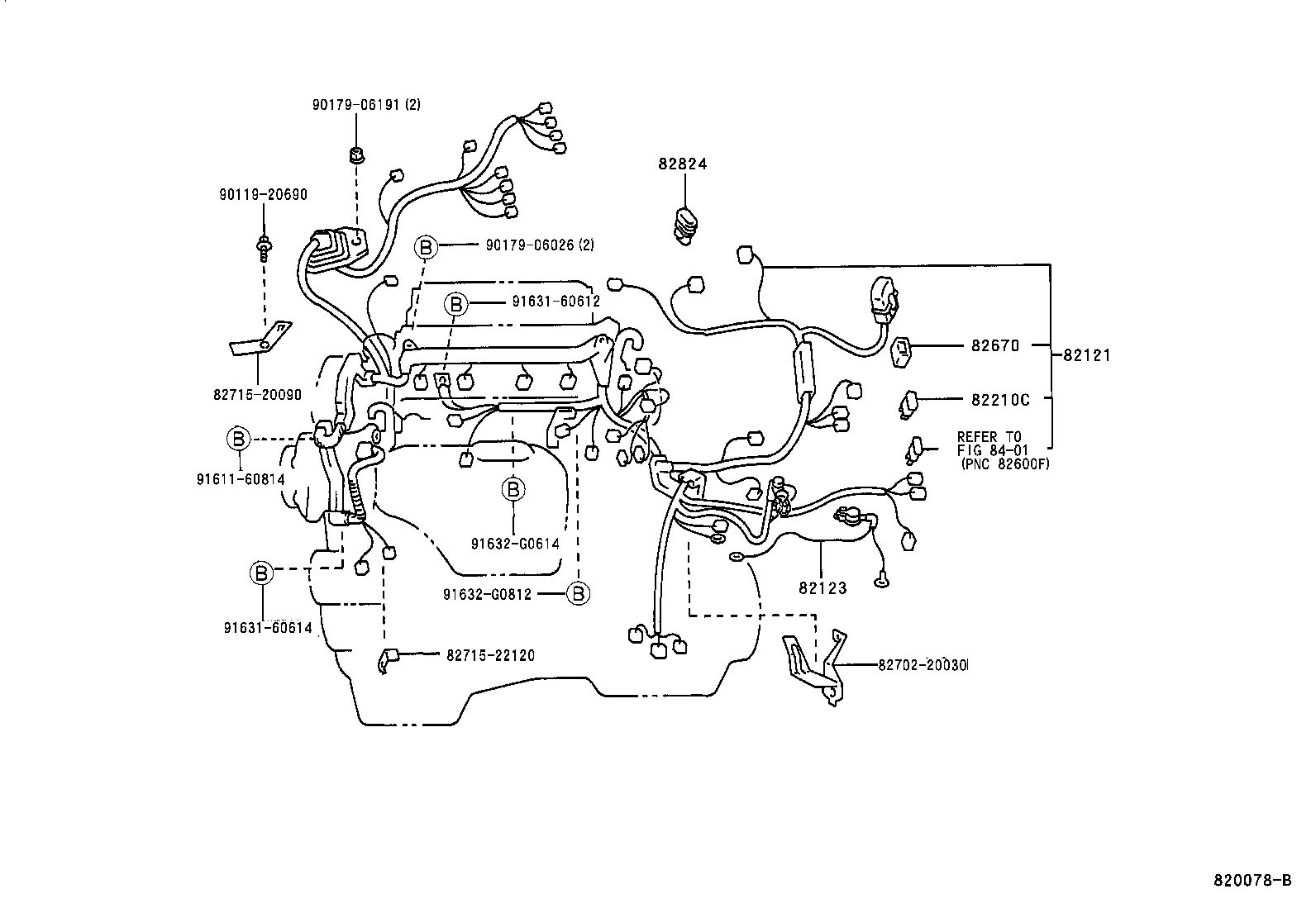

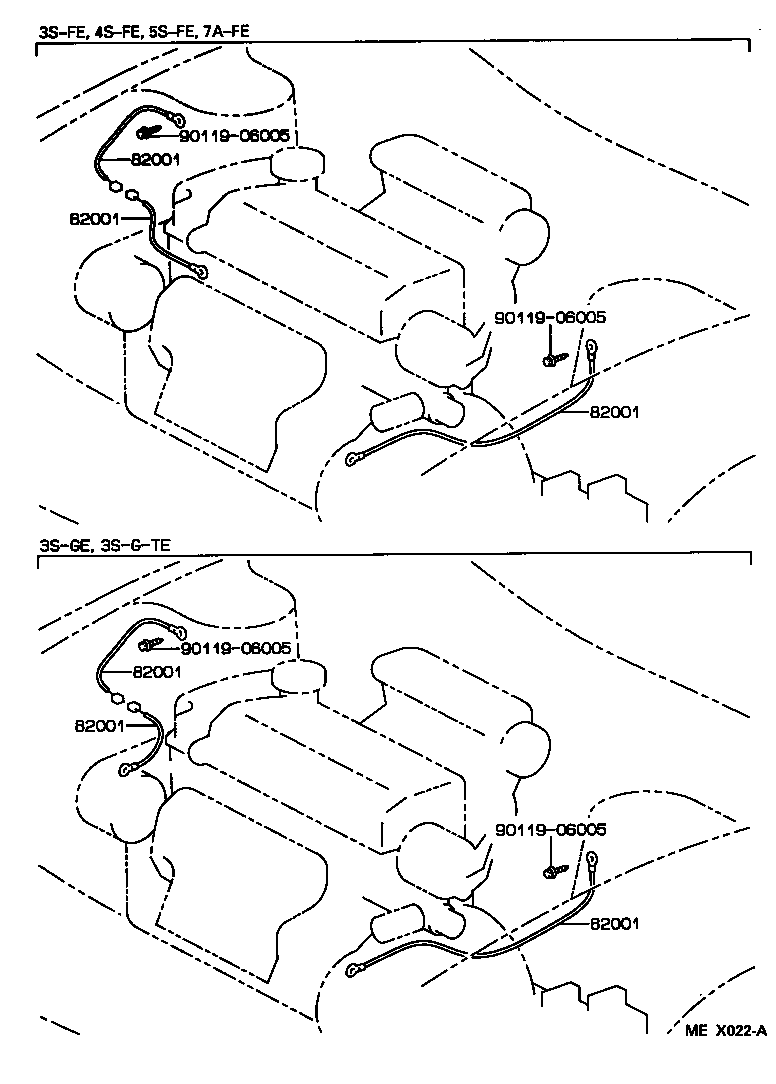

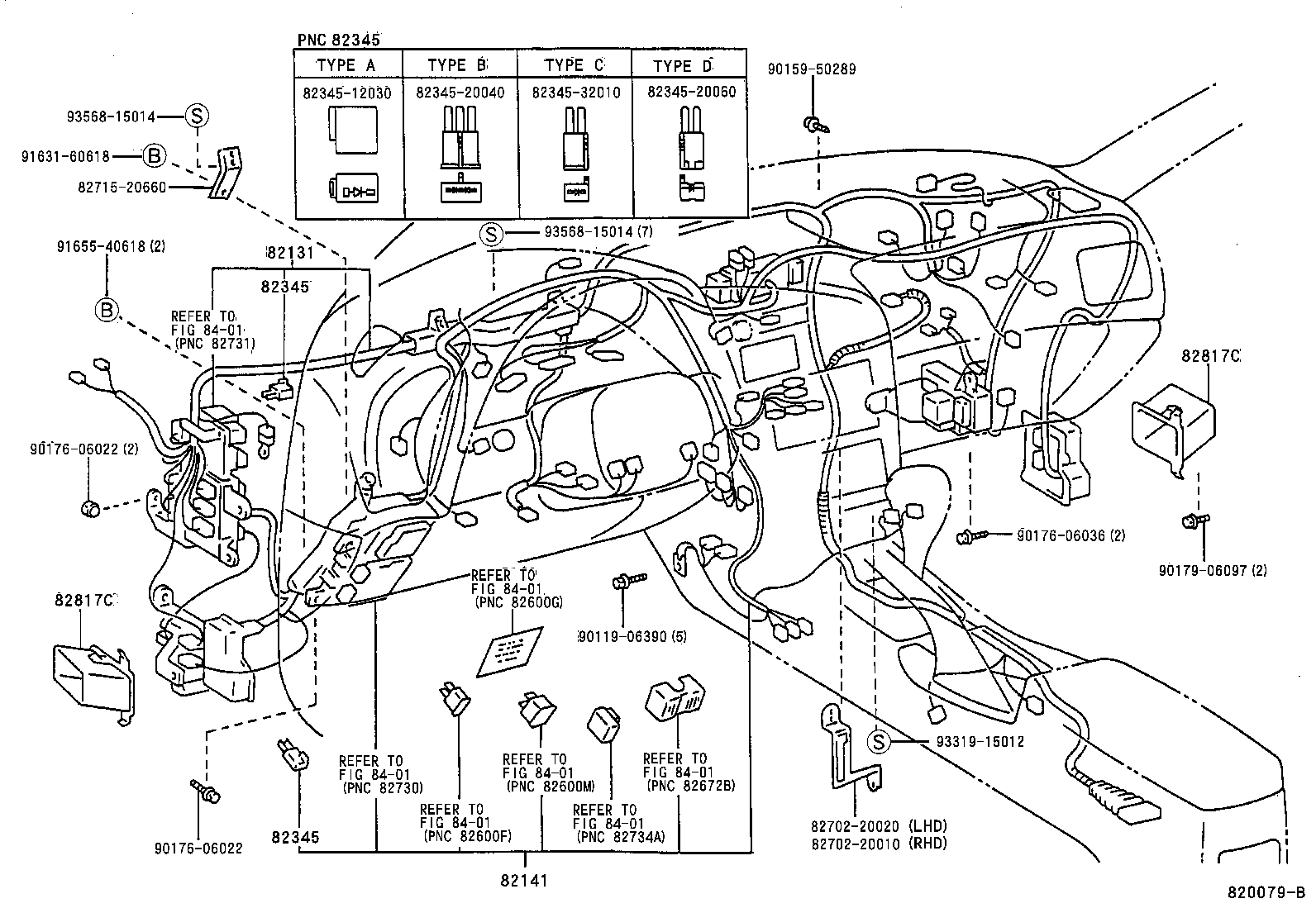

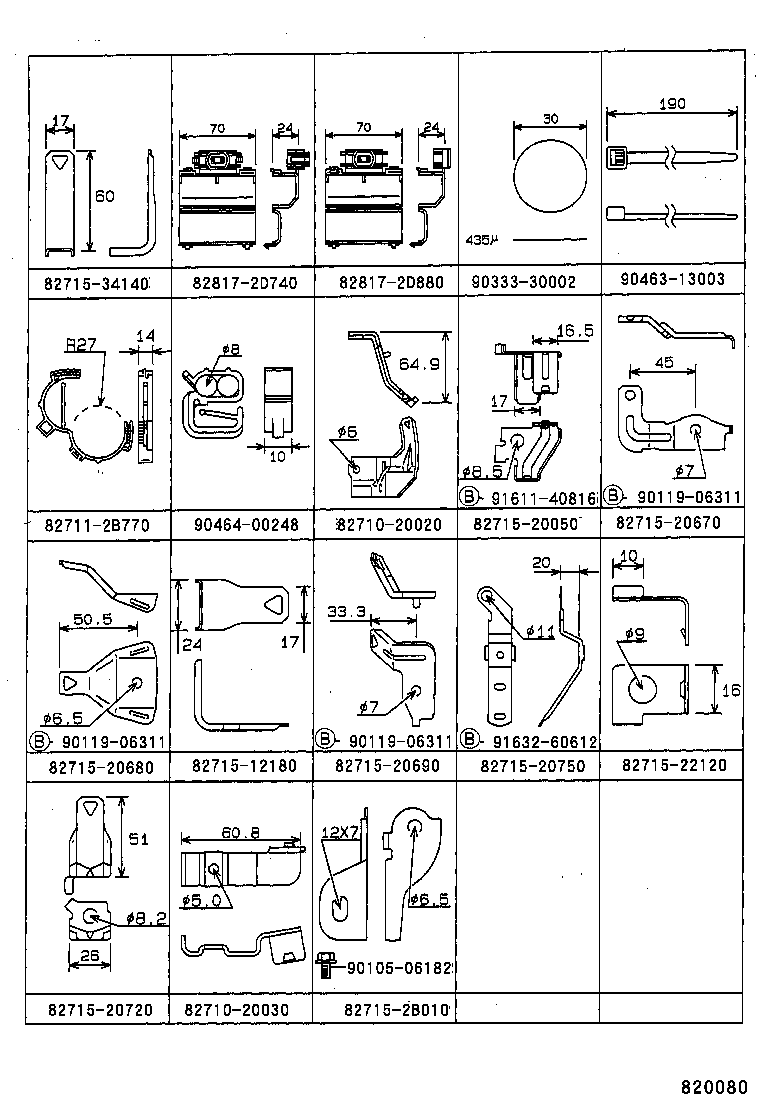

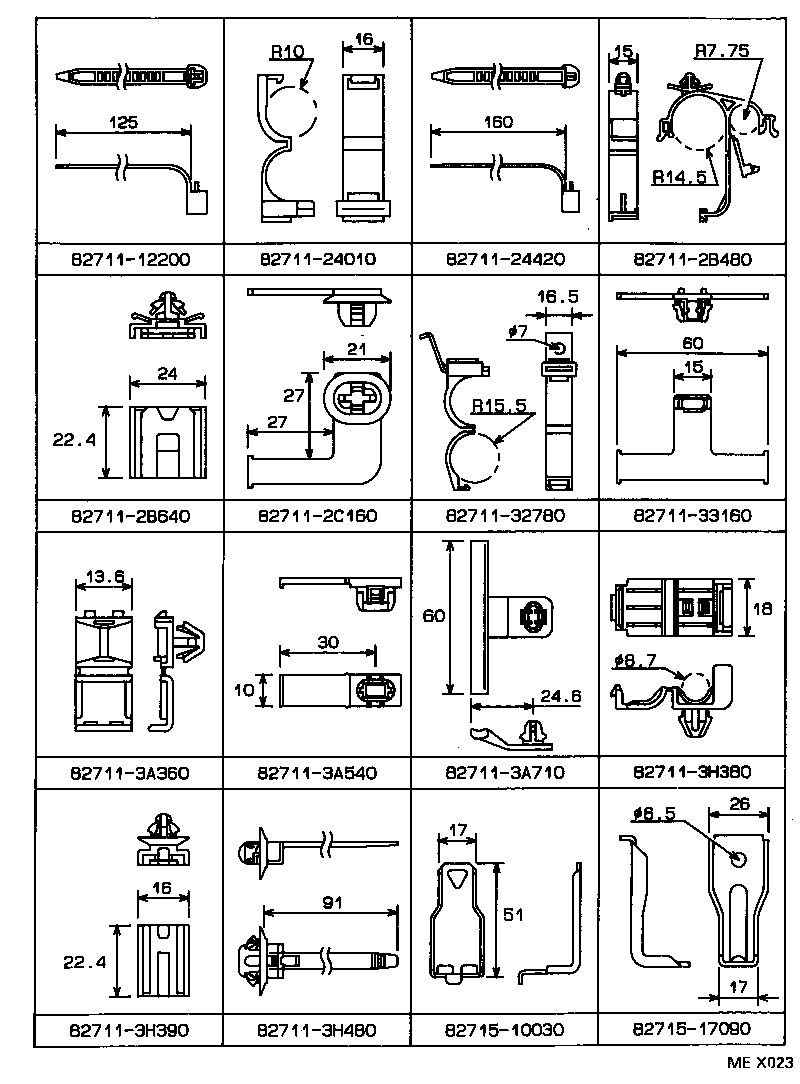

Figure NE1258 NE1258 1993-11 → — Figure 820245A 820245A 1993-11 → — Figure 820078B 820078B 1993-11 → — Figure 820079B 820079B 1993-11 → — Figure MEX026 MEX026 1993-11 → — Figure MEX027D MEX027D 1993-11 → — Figure MEX040 MEX040 1993-11 → — Figure MEX022A MEX022A 1993-11 → — Figure MEX023 MEX023 1993-11 → — Figure 820080 820080 1993-11 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817L Protector, Wiring Harness, NO.11
82821A Cover, Connector
82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
