Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

20 part groups · 2 illustrations

Illustrations

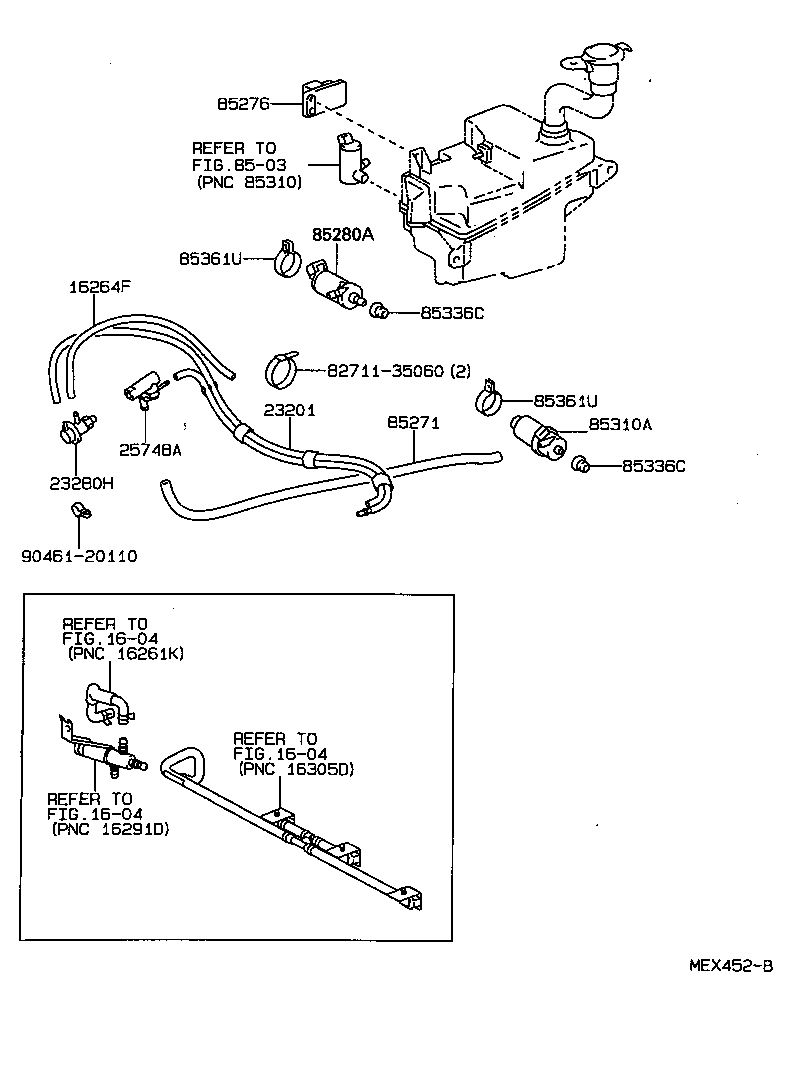

Figure 850028 850028 1993-09 → — Figure MEX452B MEX452B 1994-02 → —

Part groups

PNCDescription
16264F Hose, Water By-pass, NO.2
23201 Hose Sub-assy(FOR WATER INJECTION)
23280H Regulator Assy, Pressure
25748A Valve, Check(FOR PRESSURE REGULATOR)
85031 Valve, Headlamp Cleaner Washer Hose
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85046 Nozzle Sub-assy, TYPE2 H/Lamp Washer, RH
85047 Nozzle Sub-assy, TYPE2 H/Lamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271D Hose, Headlamp Cleaner, NO.5
85276 Relay, Cleaner Control
85280A Motor And Pump Assy, Headlamp Cleaner
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85336C Packing, Headlamp Cleaner Motor
85348A Joint, Headlamp Cleaner Hose, NO.1
85361U Bracket, Headlamp Cleaner Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
