Toyota Celica

1993-11 → 1999-08 · chassis AT200,ST20# · catalogue 252570 · Europe

Discontinued model Data version 2000-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

5 part groups · 3 illustrations

Illustrations

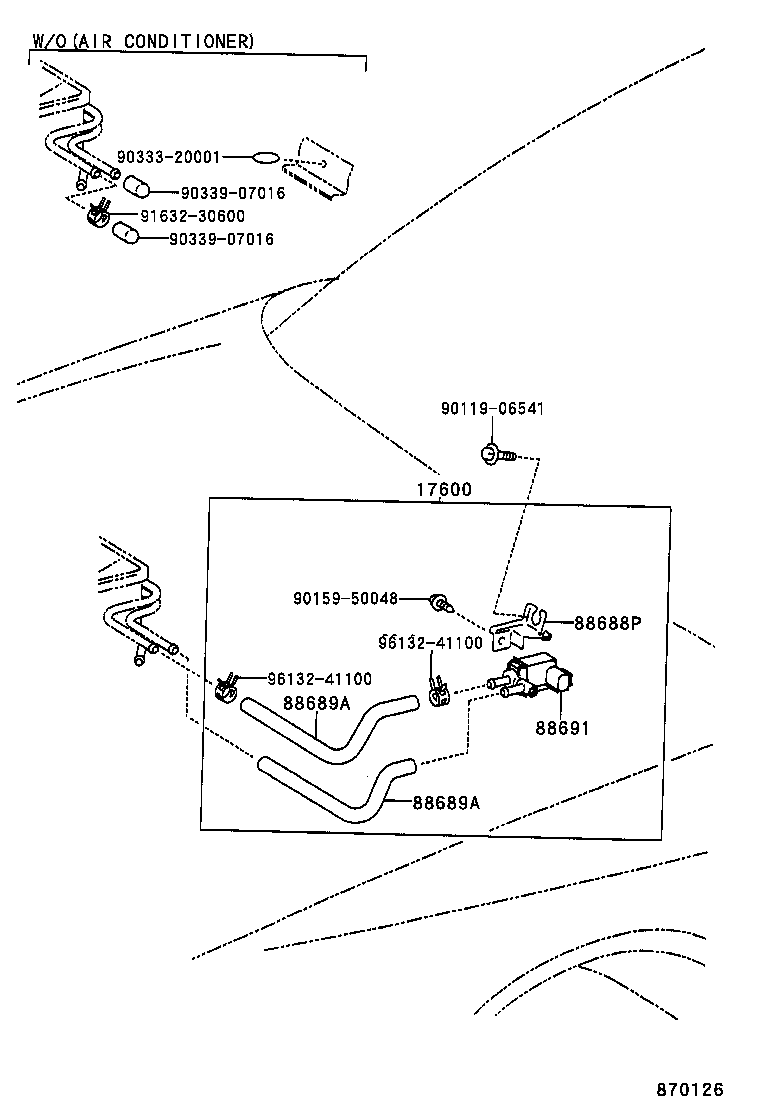

Figure 870125A 870125A 1993-11 → — Figure 870126 870126 1993-11 → — Figure 870122 870122 1994-02 → —

Part groups

PNCDescription
17600 Valve Assy, Air By-pass W/Hose
88688P Bracket (FOR MAGNET VALVE)
88689A Hose, Cooler Vacuum NO.1
88689B Hose, Cooler Vacuum NO.2
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
