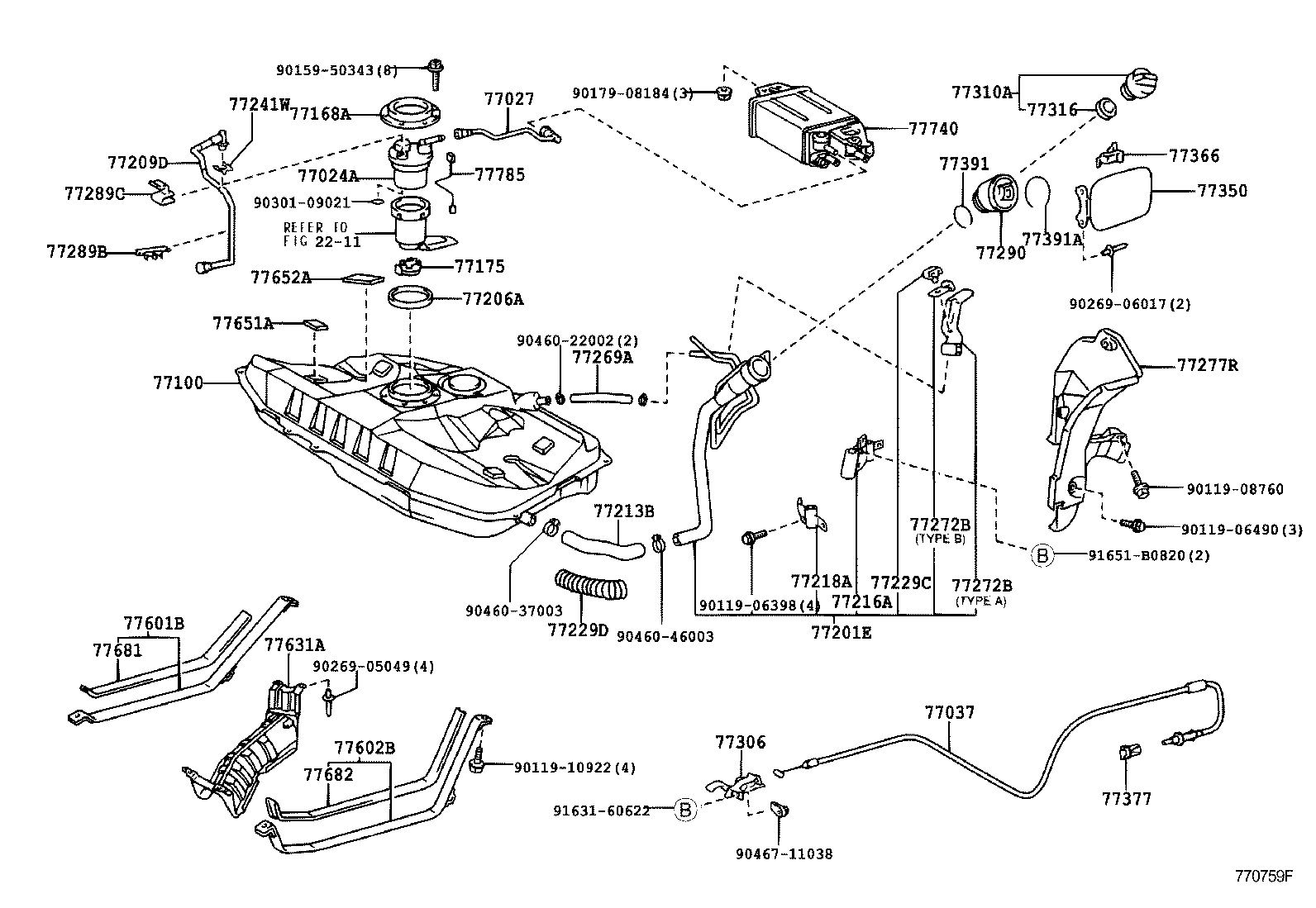

Exploded illustration 770759F 77209D — TUBE SUB-ASSY, FUEL TANK MAIN (2 parts) 77100 — TANK ASSY, FUEL (2 parts) 77168A — PLATE, FUEL TANK VENT TUBE SET (2 parts) 77024A — PLATE SUB-ASSY, FUEL SUCTION (2 parts) 9030109021 — not listed in this catalogue 2211 — not listed in this catalogue 77289C — CLAMP, FUEL TUBE, NO.4 (2 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (2 parts) 77241W — CLIP, TUBE JOINT (2 parts) 9015950343 — not listed in this catalogue 77027 — TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 (2 parts) 77175 — SUPPORT, FUEL SUCTION, NO.2 (2 parts) 77206A — GASKET (FOR FUEL TANK SUCTION TUBE) (2 parts) 77785 — HARNESS, FUEL PUMP (2 parts) 77269A — HOSE, FUEL TANK BREATHER (2 parts) 9046022002 — not listed in this catalogue 9017908184 — not listed in this catalogue 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77391 — RING, FUEL INLET BOX (2 parts) 77740 — CANISTER ASSY, CHARCOAL (3 parts) 77310A — CAP ASSY, FUEL TANK (3 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 77366 — SPRING, FUEL FILLER OPENING LID HINGE (2 parts) 77350 — LID ASSY, FUEL FILLER OPENING (2 parts) 9026906017 — not listed in this catalogue 77277R — PROTECTOR, FUEL TANK FILLER PIPE (2 parts) 9011908760 — not listed in this catalogue 77229D — SUPPORT, FUEL TANK FILLER PIPE, NO.4 (2 parts) 91651B0820 — not listed in this catalogue 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (2 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (4 parts) 77272B — SUPPORT, BREATHER TUBE, NO.1 (4 parts) 77272B — SUPPORT, BREATHER TUBE, NO.1 (4 parts) 77229C — CLAMP, BREATHER TUBE (2 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (2 parts) 77218A — SUPPORT, FUEL TANK FILLER PIPE, NO.3 (2 parts) 9011906398 — not listed in this catalogue 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (2 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (4 parts) 9046711038 — not listed in this catalogue 77213B — HOSE, FUEL TANK TO FILLER PIPE (2 parts) 9046037003 — not listed in this catalogue 9046046003 — not listed in this catalogue 9163160622 — not listed in this catalogue 9011910922 — not listed in this catalogue 77631A — PROTECTOR, FUEL TANK, LOWER CENTER (2 parts) 77682 — SEAT, FUEL TANK BAND, LH (2 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (2 parts) 9026905049 — not listed in this catalogue 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (2 parts) 77681 — SEAT, FUEL TANK BAND, RH (2 parts) 9011906490 — not listed in this catalogue
770759F · 39 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
84 parts on this figure
Part number Description Fitment Price
77024A — Plate Sub-assy, Fuel Suction
77024-17010 Plate Sub-assy, Fuel Suction
1999-08 → 2002-08 ended
ZZT23# —
77024-17010 Plate Sub-assy, Fuel Suction
2002-08 → 2005-09 ended
ZZT23# —
77027 — Tube Sub-assy, Fuel Evaporation, NO.2
77027-20090 Tube Sub-assy, Fuel Evaporation, NO.2
1999-08 → 2002-08 ended
ZZT23# —
77027-20090 Tube Sub-assy, Fuel Evaporation, NO.2
2002-08 → 2005-09 ended
ZZT23# —
77037 — Lock Sub-assy, Fuel Filler Opening Lid
77037-20130 Lock Sub-assy, Fuel Filler Opening Lid
1999-08 → 2002-08 ended
ZZT23# RHD —
77037-20140 Lock Sub-assy, Fuel Filler Opening Lid
1999-08 → 2002-08 ended
ZZT23# LHD —
77037-20130 Lock Sub-assy, Fuel Filler Opening Lid
2002-08 → 2005-09 ended
ZZT23# RHD —
77037-20140 Lock Sub-assy, Fuel Filler Opening Lid
2002-08 → 2005-09 ended
ZZT23# LHD —
77100 — Tank Assy, Fuel
77001-20760 Tank Assy, Fuel
1999-08 → 2002-08 ended
ZZT23# —
77001-20780 Tank Assy, Fuel
2002-08 → 2005-09 ended
ZZT23# —
77168A — Plate, Fuel Tank Vent Tube Set
77168-52010 Plate, Fuel Tank Vent Tube Set
1999-08 → 2002-08 ended
ZZT23# —
77168-52010 Plate, Fuel Tank Vent Tube Set
2002-08 → 2005-09 ended
ZZT23# —
77175 — Support, Fuel Suction, NO.2
77175-52020 Support, Fuel Suction, NO.2
1999-08 → 2002-08 ended
ZZT23# —
77175-52020 Support, Fuel Suction, NO.2
2002-08 → 2005-09 ended
ZZT23# —
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-20620 Pipe Sub-assy, Fuel Tank Filler
1999-08 → 2002-08 ended
ZZT23# —
77201-20620 Pipe Sub-assy, Fuel Tank Filler
2002-08 → 2005-09 ended
ZZT23# —
77206A — Gasket (FOR FUEL TANK SUCTION TUBE)
77169-33020 Gasket (FOR FUEL TANK SUCTION TUBE)
1999-08 → 2002-08 ended
ZZT23# —
77169-33020 Gasket (FOR FUEL TANK SUCTION TUBE)
2002-08 → 2005-09 ended
ZZT23# —
77209D — Tube Sub-assy, Fuel Tank Main
77209-20150 Tube Sub-assy, Fuel Tank Main
1999-08 → 2002-08 ended
ZZT23# —
77209-20150 Tube Sub-assy, Fuel Tank Main
2002-08 → 2005-09 ended
ZZT23# —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-20170 Hose, Fuel Tank TO Filler Pipe
1999-08 → 2002-08 ended
ZZT23# —
77213-20170 Hose, Fuel Tank TO Filler Pipe
2002-08 → 2005-09 ended
ZZT23# —
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-20220 Support, Fuel Tank Filler Pipe, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77216-20220 Support, Fuel Tank Filler Pipe, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77218A — Support, Fuel Tank Filler Pipe, NO.3
77218-20130 Support, Fuel Tank Filler Pipe, NO.3
1999-08 → 2002-08 ended
ZZT23# —
77218-20130 Support, Fuel Tank Filler Pipe, NO.3
2002-08 → 2005-09 ended
ZZT23# —
77229C — Clamp, Breather Tube
77229-48020 Clamp, Breather Tube
1999-08 → 2002-08 ended
ZZT23# —
77229-48020 Clamp, Breather Tube
2002-08 → 2005-09 ended
ZZT23# —
77229D — Support, Fuel Tank Filler Pipe, NO.4
77229-20120 Support, Fuel Tank Filler Pipe, NO.4
1999-08 → 2002-08 ended
ZZT23# —
77229-20120 Support, Fuel Tank Filler Pipe, NO.4
2002-08 → 2005-09 ended
ZZT23# —
77241W — Clip, Tube Joint
77241-32060 Clip, Tube Joint
1999-08 → 2002-08 ended
ZZT23# —
77241-32060 Clip, Tube Joint
2002-08 → 2005-09 ended
ZZT23# —
77269A — Hose, Fuel Tank Breather
77269-20010 Hose, Fuel Tank Breather
1999-08 → 2002-08 ended
ZZT23# —
77269-20010 Hose, Fuel Tank Breather
2002-08 → 2005-09 ended
ZZT23# —
77272B — Support, Breather Tube, NO.1
77272-20060 note Support, Breather Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77273-20040 note Support, Breather Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77272-20060 note Support, Breather Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77273-20040 note Support, Breather Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77277R — Protector, Fuel Tank Filler Pipe
77277-20250 Protector, Fuel Tank Filler Pipe
1999-08 → 2002-08 ended
ZZT23# —
77277-20250 Protector, Fuel Tank Filler Pipe
2002-08 → 2005-09 ended
ZZT23# —
77289B — Clamp, Fuel Tube, NO.3
77289-32030 Clamp, Fuel Tube, NO.3
1999-08 → 2002-08 ended
ZZT23# —
77289-32030 Clamp, Fuel Tube, NO.3
2002-08 → 2005-09 ended
ZZT23# —
77289C — Clamp, Fuel Tube, NO.4
90464-00745 Clamp, Fuel Tube, NO.4
1999-08 → 2002-08 ended
ZZT23# —
90464-00745 Clamp, Fuel Tube, NO.4
2002-08 → 2005-09 ended
ZZT23# —
77290 — Shield Assy, Fuel Tank Filler Pipe
77291-20150 Shield Assy, Fuel Tank Filler Pipe
1999-08 → 2002-08 ended
ZZT23# —
77291-20150 Shield Assy, Fuel Tank Filler Pipe
2002-08 → 2005-09 ended
ZZT23# —
77306 — Lever Sub-assy, Fuel Lid Lock Open
77306-20050 Lever Sub-assy, Fuel Lid Lock Open
1999-08 → 2002-08 ended
ZZT23# LHD —
77306-21010 Lever Sub-assy, Fuel Lid Lock Open
1999-08 → 2002-08 ended
ZZT23# RHD —
77306-20050 Lever Sub-assy, Fuel Lid Lock Open
2002-08 → 2005-09 ended
ZZT23# LHD —
77306-21010 Lever Sub-assy, Fuel Lid Lock Open
2002-08 → 2005-09 ended
ZZT23# RHD —
77310A — Cap Assy, Fuel Tank
77300-28010 Cap Assy, Fuel Tank
2000-08 → 2002-08 ended
ZZT23# —
77300-52010 Cap Assy, Fuel Tank
1999-08 → 2000-08 ended
ZZT230 —
77300-28010 Cap Assy, Fuel Tank
2002-08 → 2005-09 ended
ZZT23# —
77316 — Gasket, Fuel Tank Cap
77316-16010 Gasket, Fuel Tank Cap
1999-08 → 2002-08 ended
ZZT23# —
77316-16010 Gasket, Fuel Tank Cap
2002-08 → 2005-09 ended
ZZT23# —
77350 — Lid Assy, Fuel Filler Opening
77350-20310 Lid Assy, Fuel Filler Opening
1999-08 → 2002-08 ended
ZZT23# —
77350-20310 Lid Assy, Fuel Filler Opening
2002-08 → 2005-09 ended
ZZT23# —
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-48010 Spring, Fuel Filler Opening Lid Hinge
1999-08 → 2002-08 ended
ZZT23# —
77360-48010 Spring, Fuel Filler Opening Lid Hinge
2002-08 → 2005-09 ended
ZZT23# —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-12050 Retainer, Fuel Filler Opening Lid Lock
1999-08 → 2002-08 ended
ZZT23# —
77377-12050 Retainer, Fuel Filler Opening Lid Lock
2002-08 → 2005-09 ended
ZZT23# —
77391 — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
1999-08 → 2002-08 ended
ZZT23# —
77391-12020 Ring, Fuel Inlet Box
2002-08 → 2005-09 ended
ZZT23# —
77391A — Ring, Fuel Inlet Box
77391-20030 Ring, Fuel Inlet Box
1999-08 → 2002-08 ended
ZZT23# —
77391-20030 Ring, Fuel Inlet Box
2002-08 → 2005-09 ended
ZZT23# —
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-20240 Band Sub-assy, Fuel Tank, NO.1 RH
1999-08 → 2002-08 ended
ZZT23# —
77601-20240 Band Sub-assy, Fuel Tank, NO.1 RH
2002-08 → 2005-09 ended
ZZT23# —
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-20250 Band Sub-assy, Fuel Tank, NO.1 LH
1999-08 → 2002-08 ended
ZZT23# —
77602-20250 Band Sub-assy, Fuel Tank, NO.1 LH
2002-08 → 2005-09 ended
ZZT23# —
77631A — Protector, Fuel Tank, Lower Center
77631-20110 Protector, Fuel Tank, Lower Center
1999-08 → 2002-08 ended
ZZT23# —
77631-20110 Protector, Fuel Tank, Lower Center
2002-08 → 2005-09 ended
ZZT23# —
77651A — Cushion, Fuel Tank, NO.1
77651-20090 Cushion, Fuel Tank, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77651-20090 Cushion, Fuel Tank, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77652A — Cushion, Fuel Tank, NO.2
77652-12100 Cushion, Fuel Tank, NO.2
1999-08 → 2002-08 ended
ZZT23# —
77652-12100 Cushion, Fuel Tank, NO.2
2002-08 → 2005-09 ended
ZZT23# —
77681 — Seat, Fuel Tank Band, RH
77681-32060 Seat, Fuel Tank Band, RH
1999-08 → 2002-08 ended
ZZT23# —
77681-32060 Seat, Fuel Tank Band, RH
2002-08 → 2005-09 ended
ZZT23# —
77682 — Seat, Fuel Tank Band, LH
77682-16010 Seat, Fuel Tank Band, LH
1999-08 → 2002-08 ended
ZZT23# —
77682-16010 Seat, Fuel Tank Band, LH
2002-08 → 2005-09 ended
ZZT23# —
77740 — Canister Assy, Charcoal
77740-20500 Canister Assy, Charcoal
1999-08 → 2000-10 ended
ZZT23# —
77740-20501 Canister Assy, Charcoal
2000-10 → 2002-08 ended
ZZT23# —
77740-20501 Canister Assy, Charcoal
2002-08 → 2005-09 ended
ZZT23# —
77785 — Harness, Fuel Pump
77785-32010 Harness, Fuel Pump
1999-08 → 2002-08 ended
ZZT23# —
77785-32010 Harness, Fuel Pump
2002-08 → 2005-09 ended
ZZT23# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
