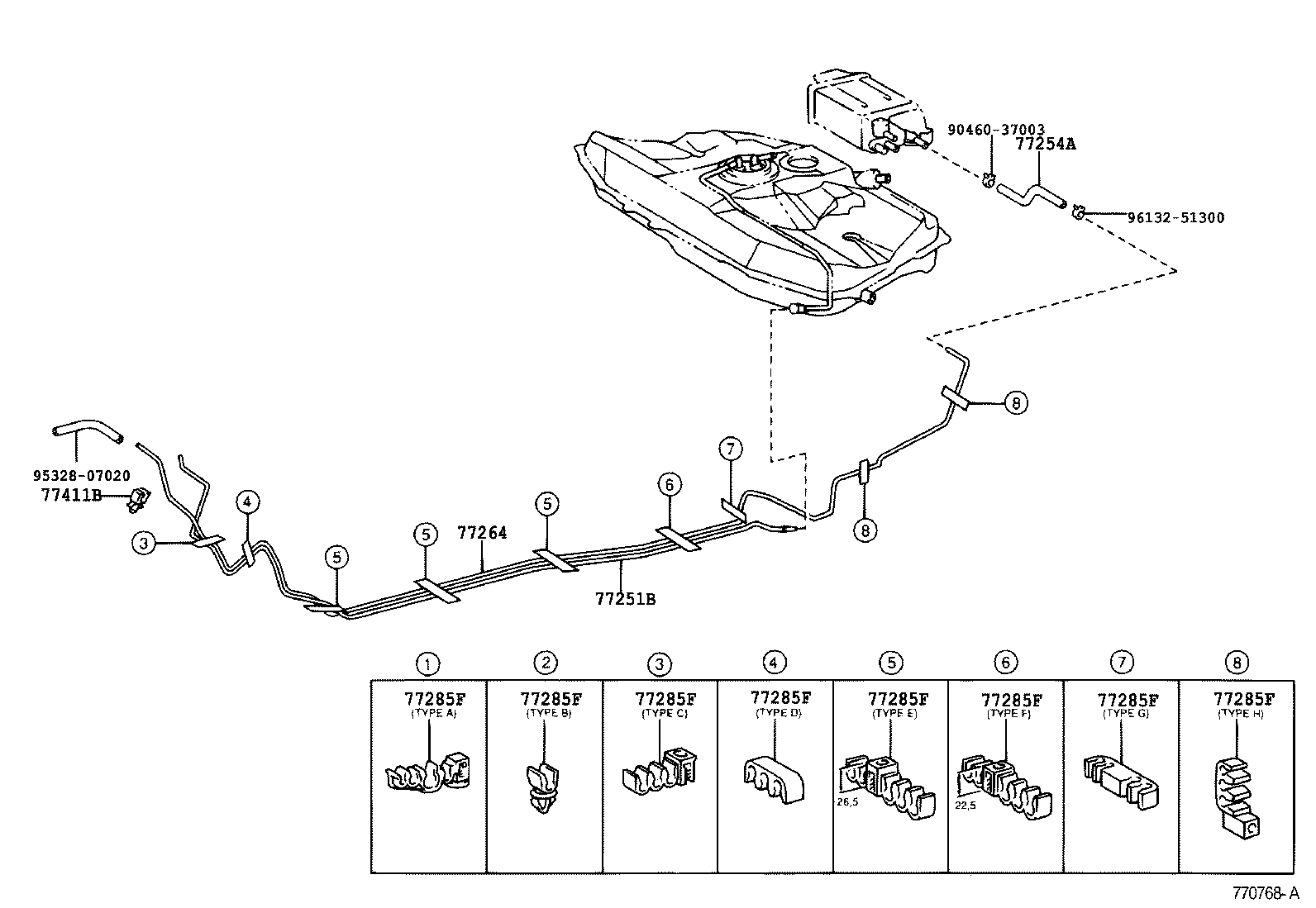

Exploded illustration 770768A 77264 — TUBE, CANISTER TO FRONT SIDE MEMBER (2 parts) 77251B — TUBE, FUEL MAIN (3 parts) 9046037003 — not listed in this catalogue 77254A — HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) (2 parts) 9613251300 — not listed in this catalogue 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (14 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (2 parts) 9532807020 — not listed in this catalogue
770768A · 12 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
23 parts on this figure
Part number Description Fitment Price
77251B — Tube, Fuel Main
77251-20770 Tube, Fuel Main
1999-08 → 2000-08 ended
ZZT230 —
77251-20771 Tube, Fuel Main
2000-08 → 2002-08 ended
ZZT23# —
77251-20771 Tube, Fuel Main
2002-08 → 2005-09 ended
ZZT23# —
77254A — Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
95333-08030 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1999-08 → 2002-08 ended
ZZT23# —
95333-08030 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
2002-08 → 2005-09 ended
ZZT23# —
77264 — Tube, Canister TO Front Side Member
77264-20110 Tube, Canister TO Front Side Member
1999-08 → 2002-08 ended
ZZT23# —
77264-20110 Tube, Canister TO Front Side Member
2002-08 → 2005-09 ended
ZZT23# —
77285F — Clamp, Fuel Tube, NO.1
77285-20210 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77286-20170 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77289-20060 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77298-20060 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77298-20070 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77298-20080 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77299-20050 note Clamp, Fuel Tube, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77285-20210 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77286-20170 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77289-20060 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77298-20060 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77298-20070 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77298-20080 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77299-20050 note Clamp, Fuel Tube, NO.1
2002-08 → 2005-09 ended
ZZT23# —
77411B — Support, Fuel Tube Grommet, NO.1
77411-20050 Support, Fuel Tube Grommet, NO.1
1999-08 → 2002-08 ended
ZZT23# —
77411-20050 Support, Fuel Tube Grommet, NO.1
2002-08 → 2005-09 ended
ZZT23# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
