Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

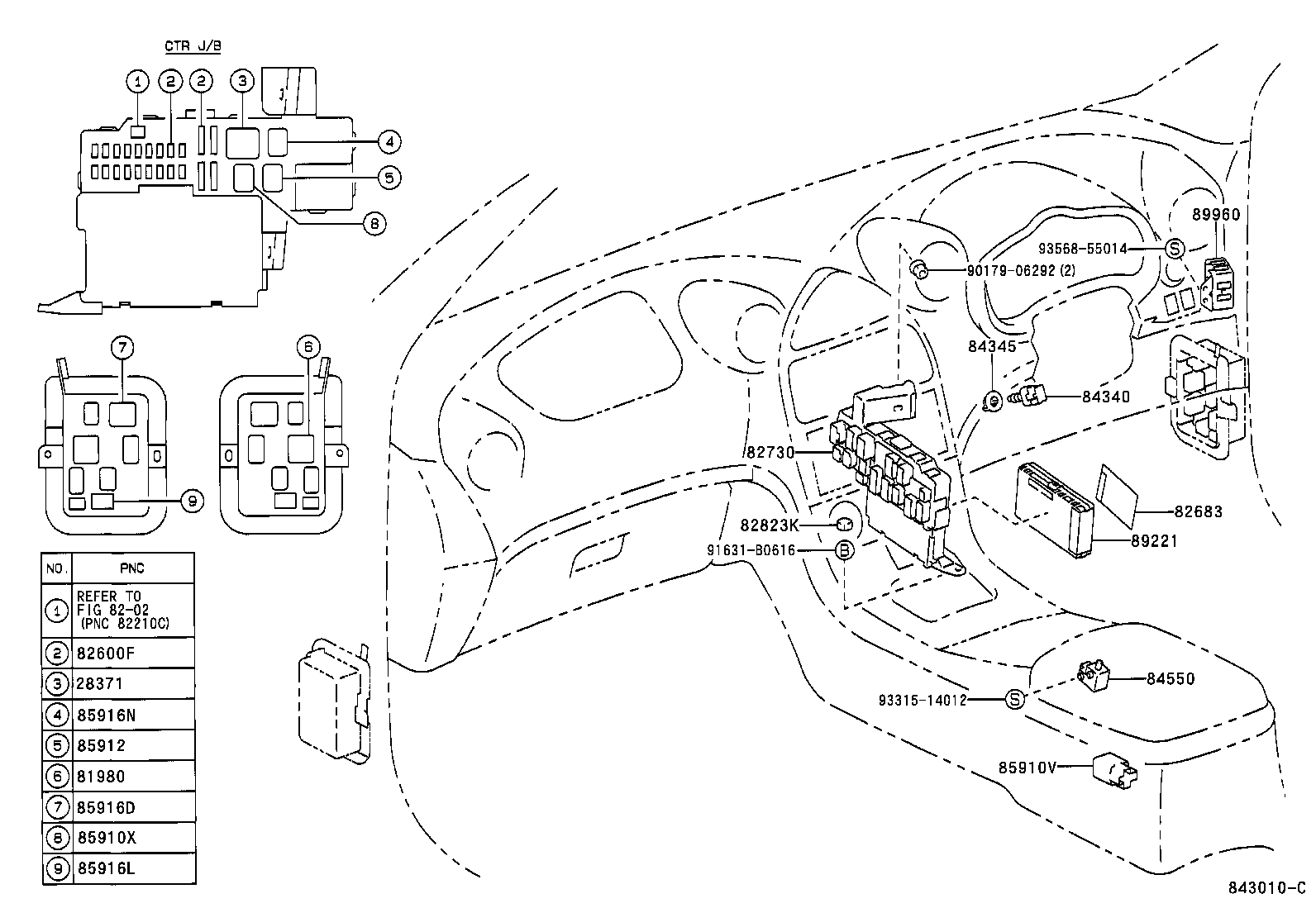

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371 — Relay, Ignition, NO.1 | ||||
| 90987-02016 |
Relay, Ignition, NO.1
1999-08 → 2002-08
ended
|
1ZZFE,2ZZGE ZZT23# | — | |
| 90987-02025 |
Relay, Ignition, NO.1
2002-08 → 2005-09
ended
|
1ZZFE,2ZZGE ZZT23# | — | |
| 81980 — Flasher Assy, Turn Signal | ||||
| 81980-50030 |
Flasher Assy, Turn Signal
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 81980-50030 |
Flasher Assy, Turn Signal
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 82600F — Fuse, Fuse Block | ||||
| 90982-09008 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09009 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09010 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09011 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09012 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09013 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09014 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09016 note |
Fuse, Fuse Block
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90982-09008 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09009 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09010 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09011 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09012 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09013 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09014 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 90982-09016 note |
Fuse, Fuse Block
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 82683 — Plate, Fuse Block Caution | ||||
| 82683-20160 |
Plate, Fuse Block Caution
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 82683-20160 |
Plate, Fuse Block Caution
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 82730 — Block Assy, Instrument Panel Junction | ||||
| 82730-20080 |
Block Assy, Instrument Panel Junction
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 82730-20080 |
Block Assy, Instrument Panel Junction
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 82823K — Cap, Terminal | ||||
| 82823-20050 |
Cap, Terminal
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 82823-20050 |
Cap, Terminal
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-19015 |
Switch Assy, Stop Lamp
2001-08 → 2002-08
ended
|
ZZT23# | — | |
| 84340-32050 |
Switch Assy, Stop Lamp
1999-08 → 2001-08
ended
|
ZZT23# | — | |
| 84340-19015 |
Switch Assy, Stop Lamp
2002-08 → 2004-09
ended
|
ZZT23# | — | |
| 84340-69035 |
Switch Assy, Stop Lamp
2004-09 → 2005-09
ended
|
ZZT23# | — | |
| 84345 — Adjuster, Stop Lamp Switch Mounting | ||||
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2001-08 → 2002-08
ended
|
ZZT23# | — | |
| 84345-51010 |
Adjuster, Stop Lamp Switch Mounting
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84550 — Switch Assy, Parking Brake | ||||
| 84550-16060 |
Switch Assy, Parking Brake
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 84550-33010 |
Switch Assy, Parking Brake
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 84550-16060 |
Switch Assy, Parking Brake
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 84550-33010 |
Switch Assy, Parking Brake
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 85910V — Relay, Seat Heater | ||||
| 90987-02027 |
Relay, Seat Heater
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85910X — Relay, Heater Mirror | ||||
| 90987-02020 |
Relay, Heater Mirror
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90987-02027 |
Relay, Heater Mirror
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85912 — Relay, Defogger | ||||
| 90987-02020 |
Relay, Defogger
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90987-02027 |
Relay, Defogger
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85916D — Relay, Fog Lamp | ||||
| 90987-02020 |
Relay, Fog Lamp
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90987-02027 |
Relay, Fog Lamp
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85916L — Relay, Rear Fog Lamp | ||||
| 90987-02020 |
Relay, Rear Fog Lamp
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90987-02027 |
Relay, Rear Fog Lamp
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85916N — Relay, Taillamp | ||||
| 90987-02020 |
Relay, Taillamp
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90987-02027 |
Relay, Taillamp
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 89221 — Computer, Multiplex Network Body | ||||
| 89221-20040 |
Computer, Multiplex Network Body
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 89221-20050 |
Computer, Multiplex Network Body
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 89221-20120 |
Computer, Multiplex Network Body
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 89221-20130 |
Computer, Multiplex Network Body
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 89960 — Computer Assy, Headlamp Leveling | ||||
| 89960-20010 |
Computer Assy, Headlamp Leveling
2002-08 → 2005-09
ended
|
ZZT23# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
