Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

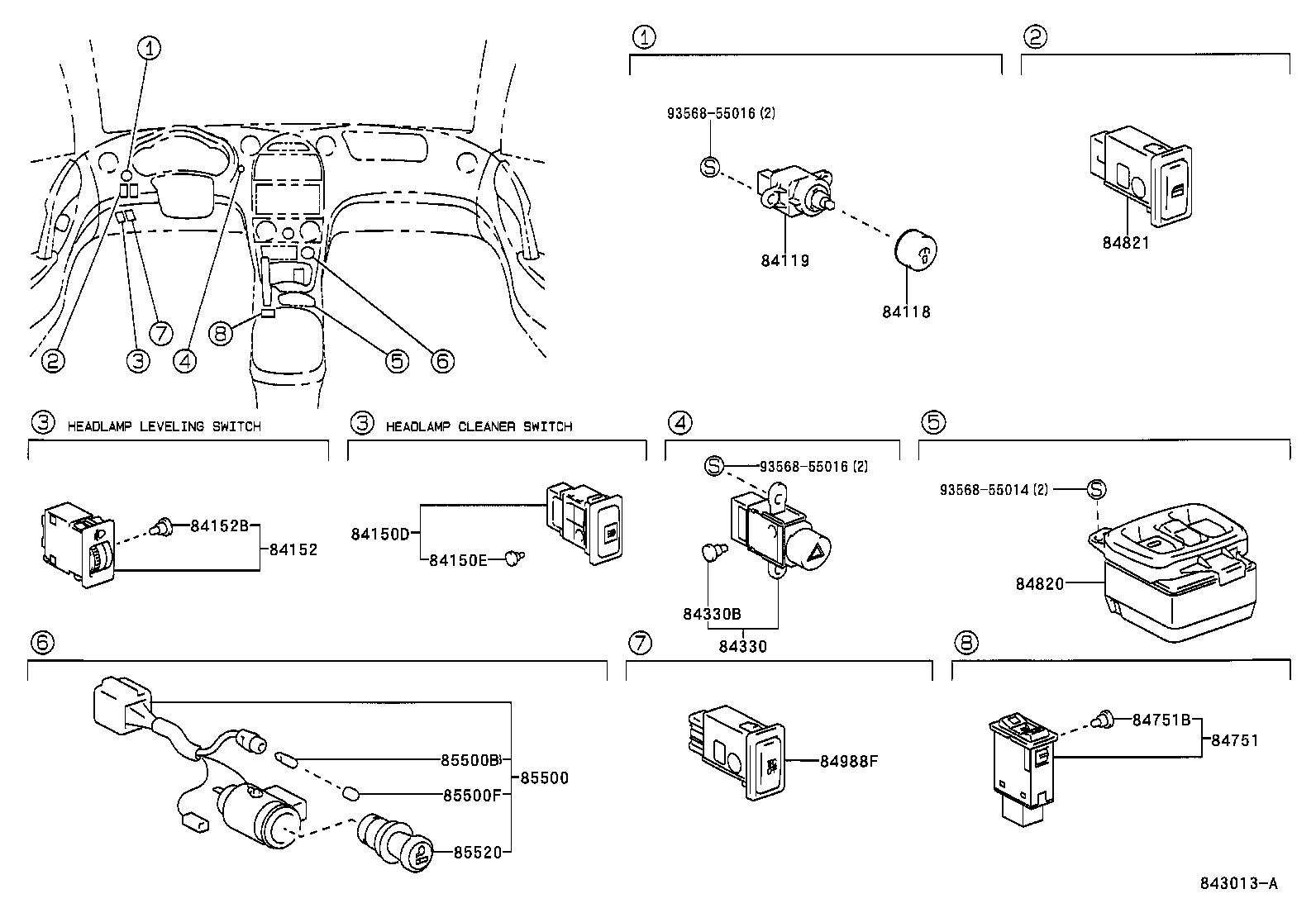

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84118 — Knob, Light Control Rheostat | ||||
| 84118-20030 |
Knob, Light Control Rheostat
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84118-20030 |
Knob, Light Control Rheostat
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84119 — Rheostat, Light Control | ||||
| 84119-20260 |
Rheostat, Light Control
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84119-20260 |
Rheostat, Light Control
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84150D — Switch Assy, Headlamp Cleaner | ||||
| 84150-42010 |
Switch Assy, Headlamp Cleaner
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84150E — Bulb, Headlamp Cleaner Switch | ||||
| 84999-10860 note |
Bulb, Headlamp Cleaner Switch
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84152 — Switch, Headlamp Leveling | ||||
| 84152-20030 |
Switch, Headlamp Leveling
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84152-20050 |
Switch, Headlamp Leveling
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84152B — Bulb (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 90010-08106 note |
Bulb (FOR HEADLAMP LEVELING SWITCH)
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84330 — Switch Assy, Hazard Warning Signal | ||||
| 84332-20380 |
Switch Assy, Hazard Warning Signal
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84332-20380 |
Switch Assy, Hazard Warning Signal
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84330B — Bulb, Hazard Warning Signal Switch | ||||
| 84999-10860 note |
Bulb, Hazard Warning Signal Switch
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84999-10860 note |
Bulb, Hazard Warning Signal Switch
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84751 — Switch, Seat Heater | ||||
| 84751-20190 |
Switch, Seat Heater
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 84751-20200 |
Switch, Seat Heater
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 84751B — Bulb, Seat Heater Switch | ||||
| 84999-10330 note |
Bulb, Seat Heater Switch
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84802-20330 |
Master Switch Assy, Power Window Regulator
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 84802-20340 |
Master Switch Assy, Power Window Regulator
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 84802-20380 |
Master Switch Assy, Power Window Regulator
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 84802-20390 |
Master Switch Assy, Power Window Regulator
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 84821 — Switch, Power Window Lock | ||||
| 84821-20020 |
Switch, Power Window Lock
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84821-20020 |
Switch, Power Window Lock
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84988F — Switch, Traction Control | ||||
| 84988-20040 |
Switch, Traction Control
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-20300 |
Lighter Assy, Cigarette
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 85500-20310 |
Lighter Assy, Cigarette
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 85500-20330 |
Lighter Assy, Cigarette
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 85500-20340 |
Lighter Assy, Cigarette
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 90981-11014 note |
Bulb, Cigarette Lighter
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 90981-11018 note |
Bulb, Cigarette Lighter
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 90010-01163 note |
Bulb, Cigarette Lighter
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 90981-11014 note |
Bulb, Cigarette Lighter
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 85500F — Cap, Cigarette Lighter Bulb | ||||
| 84998-10510 |
Cap, Cigarette Lighter Bulb
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 85520 — Knob And Element Assy, Cigarette Lighter | ||||
| 85520-28010 |
Knob And Element Assy, Cigarette Lighter
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 85520-28010 |
Knob And Element Assy, Cigarette Lighter
2002-08 → 2005-09
ended
|
ZZT23# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
