Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

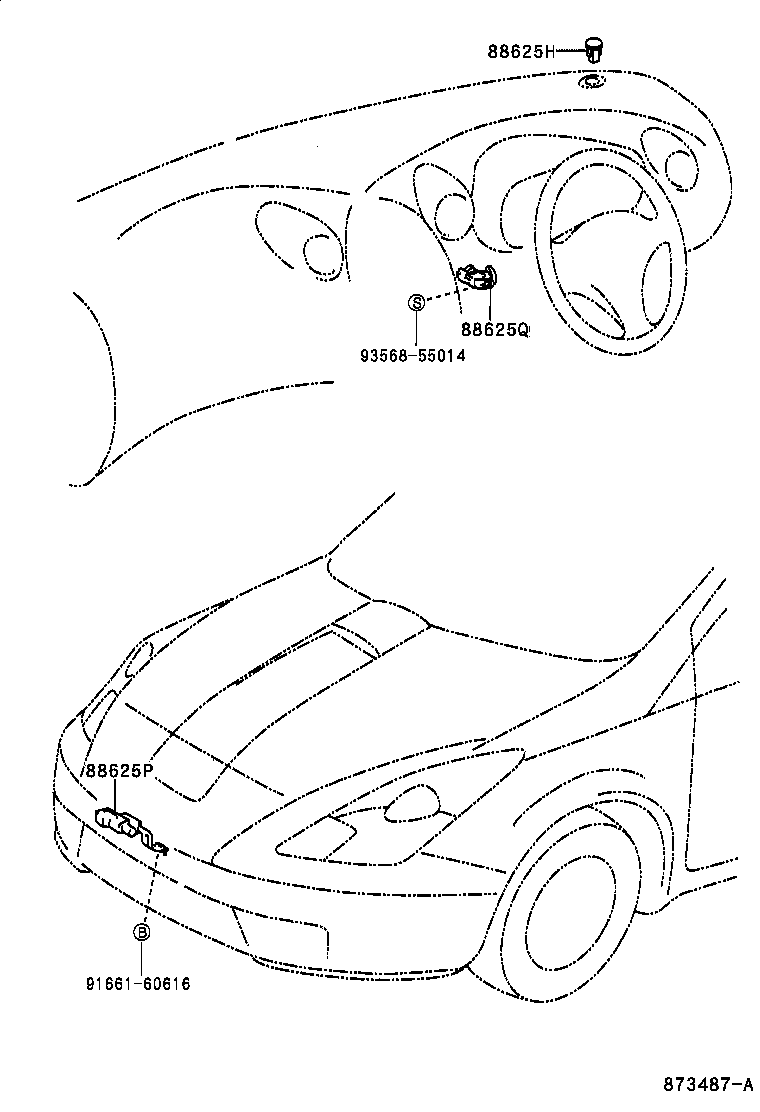

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88625H — Thermistor, Cooler (SOLAR SENSOR) | ||||
| 88625-47031 |
Thermistor, Cooler (SOLAR SENSOR)
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88625-47031 |
Thermistor, Cooler (SOLAR SENSOR)
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 88625P — Thermistor, Cooler (AMBIENT TEMP. SENSOR) | ||||
| 88625-20500 |
Thermistor, Cooler (AMBIENT TEMP. SENSOR)
1999-08 → 2001-08
ended
|
ZZT23# | — | |
| 88625-20501 |
Thermistor, Cooler (AMBIENT TEMP. SENSOR)
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88790-12020 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88790-12020 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2002-08 → 2005-09
ended
|
ZZT23# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
