Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

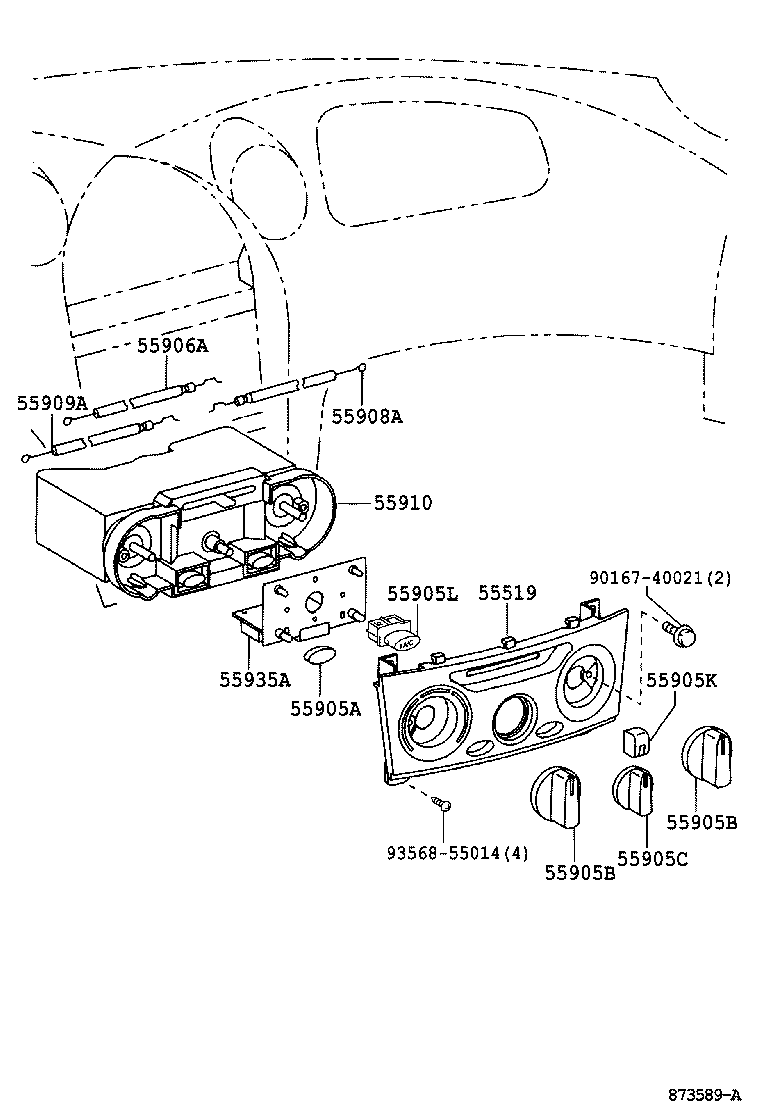

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55519 — Plate, Heater Control Name | ||||
| 55519-20330 |
Plate, Heater Control Name
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55519-20340 |
Plate, Heater Control Name
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55519-20350 |
Plate, Heater Control Name
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55519-20360 |
Plate, Heater Control Name
2002-08 → 2004-08
ended
|
ZZT23# LHD | — | |
| 55519-20370 |
Plate, Heater Control Name
2004-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55905A — Knob, Heater Control | ||||
| 55905-2B730 |
Knob, Heater Control
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55905-2B740 |
Knob, Heater Control
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55905-2B770 note |
Knob, Heater Control
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 55905-2B780 note |
Knob, Heater Control
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 55905-2B820 |
Knob, Heater Control
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55905-2B830 |
Knob, Heater Control
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55905B — Knob, Heater Control, NO.2 | ||||
| 55905-2B080 |
Knob, Heater Control, NO.2
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 55905-2B750 |
Knob, Heater Control, NO.2
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 55905C — Knob, Heater Control, NO.3 | ||||
| 55905-2B090 |
Knob, Heater Control, NO.3
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 55905-2B760 |
Knob, Heater Control, NO.3
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 55905K — Knob, Heater Control, NO.4 | ||||
| 55905-2B700 |
Knob, Heater Control, NO.4
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 55905-2B790 |
Knob, Heater Control, NO.4
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 55905L — Knob, Heater Control, NO.5 | ||||
| 55905-2B710 |
Knob, Heater Control, NO.5
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55905-2B720 |
Knob, Heater Control, NO.5
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55905-2B800 |
Knob, Heater Control, NO.5
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55905-2B810 |
Knob, Heater Control, NO.5
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55906A — Cable Sub-assy, Defroster Damper Control | ||||
| 55906-20310 |
Cable Sub-assy, Defroster Damper Control
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55906-20330 |
Cable Sub-assy, Defroster Damper Control
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55906-20310 |
Cable Sub-assy, Defroster Damper Control
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55906-20330 |
Cable Sub-assy, Defroster Damper Control
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55908A — Cable Sub-assy, Air Inlet Damper Control | ||||
| 55908-20190 |
Cable Sub-assy, Air Inlet Damper Control
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55908-20200 |
Cable Sub-assy, Air Inlet Damper Control
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55908-20190 |
Cable Sub-assy, Air Inlet Damper Control
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55908-20200 |
Cable Sub-assy, Air Inlet Damper Control
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55909A — Cable Sub-assy, Airmix Damper Control | ||||
| 55909-20260 |
Cable Sub-assy, Airmix Damper Control
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 55909-20270 |
Cable Sub-assy, Airmix Damper Control
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 55909-20260 |
Cable Sub-assy, Airmix Damper Control
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55909-20270 |
Cable Sub-assy, Airmix Damper Control
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55910 — Control Assy, Heater OR Boost Ventilator | ||||
| 55910-20680 |
Control Assy, Heater OR Boost Ventilator
1999-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 55910-20690 |
Control Assy, Heater OR Boost Ventilator
2000-08 → 2002-08
ended
|
ZZT231 RHD | — | |
| 55910-20690 note |
Control Assy, Heater OR Boost Ventilator
1999-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 55910-20710 note |
Control Assy, Heater OR Boost Ventilator
1999-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 55910-20710 |
Control Assy, Heater OR Boost Ventilator
2000-08 → 2002-08
ended
|
ZZT231 LHD | — | |
| 55910-20730 |
Control Assy, Heater OR Boost Ventilator
1999-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 55910-20700 |
Control Assy, Heater OR Boost Ventilator
2002-08 → 2005-09
ended
|
ZZT230 RHD | — | |
| 55910-20740 note |
Control Assy, Heater OR Boost Ventilator
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 55910-20760 |
Control Assy, Heater OR Boost Ventilator
2002-08 → 2005-09
ended
|
ZZT230 LHD | — | |
| 55910-20780 note |
Control Assy, Heater OR Boost Ventilator
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 55935A — Circuit, Center Cluster Module | ||||
| 84020-20040 |
Circuit, Center Cluster Module
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 84020-20050 |
Circuit, Center Cluster Module
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 84020-20060 note |
Circuit, Center Cluster Module
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 84020-20070 note |
Circuit, Center Cluster Module
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 84020-20080 |
Circuit, Center Cluster Module
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 84020-20090 |
Circuit, Center Cluster Module
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
