Toyota Celica

1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

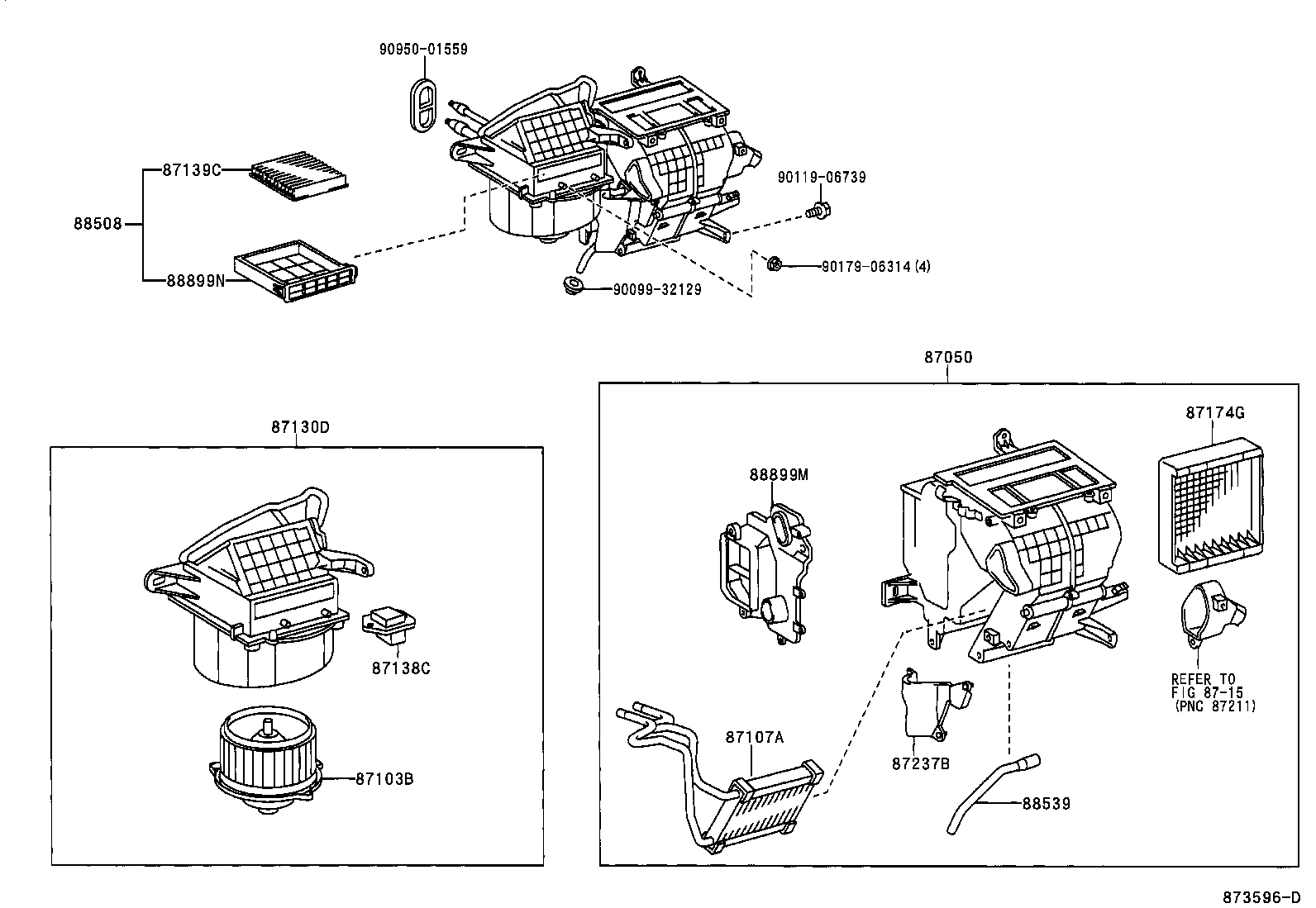

Exploded illustration 873596D 9095001559 — not listed in this catalogue 87139C — FILTER, CLEAN AIR (2 parts) 9011906739 — not listed in this catalogue 88508 — FILTER SUB-ASSY, CLEAN AIR (1 parts) 9017906314 — not listed in this catalogue 88899N — PLATE, COVER (3 parts) 9009932129 — not listed in this catalogue 87050 — RADIATOR ASSY, AIR CONDITIONER (16 parts) 87174G — GUIDE, AIR HEATER (2 parts) 87130D — BLOWER ASSY (10 parts) 88899M — PLATE, COVER(FOR AIR FILTER) (11 parts) 87138C — RESISTOR, BLOWER (4 parts) 8715 — not listed in this catalogue 87107A — UNIT SUB-ASSY, HEATER RADIATOR (4 parts) 87237B — COVER, HEATER PIPING (4 parts) 87103B — MOTOR SUB-ASSY, BLOWER W/FAN (6 parts) 88539 — HOSE, COOLER UNIT DRAIN, NO.1 (4 parts)
873596D · 12 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
67 parts on this figure
Part number Description Fitment Price
87050 — Radiator Assy, Air Conditioner
87050-20440 note Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT23# RHD —
87050-20450 note Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT230 RHD —
87050-20450 Radiator Assy, Air Conditioner
2000-08 → 2002-08 ended
ZZT231 RHD —
87050-20460 Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT230 RHD —
87050-20480 note Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT23# LHD —
87050-20500 note Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT230 LHD —
87050-20500 Radiator Assy, Air Conditioner
2000-08 → 2002-08 ended
ZZT231 LHD —
87050-20520 Radiator Assy, Air Conditioner
1999-08 → 2002-08 ended
ZZT230 LHD —
87050-20440 note Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT23# RHD —
87050-20450 Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT231 RHD —
87050-20450 note Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT230 RHD —
87050-20460 Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT230 RHD —
87050-20480 note Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT23# LHD —
87050-20500 Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT231 LHD —
87050-20500 note Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT230 LHD —
87050-20520 Radiator Assy, Air Conditioner
2002-08 → 2005-09 ended
ZZT230 LHD —
87103B — Motor Sub-assy, Blower W/Fan
87103-20120 Motor Sub-assy, Blower W/Fan
1999-08 → 2001-06 ended
ZZT23# RHD —
87103-20130 Motor Sub-assy, Blower W/Fan
1999-08 → 2002-02 ended
ZZT23# LHD —
87103-20150 Motor Sub-assy, Blower W/Fan
2001-06 → 2002-08 ended
ZZT23# RHD —
87103-20160 Motor Sub-assy, Blower W/Fan
2002-02 → 2002-08 ended
ZZT23# LHD —
87103-20150 Motor Sub-assy, Blower W/Fan
2002-08 → 2005-09 ended
ZZT23# RHD —
87103-20160 Motor Sub-assy, Blower W/Fan
2002-08 → 2005-09 ended
ZZT23# LHD —
87107A — Unit Sub-assy, Heater Radiator
87107-20670 Unit Sub-assy, Heater Radiator
1999-08 → 2002-08 ended
ZZT23# RHD —
87107-20690 Unit Sub-assy, Heater Radiator
1999-08 → 2002-08 ended
ZZT23# LHD —
87107-20670 Unit Sub-assy, Heater Radiator
2002-08 → 2005-09 ended
ZZT23# RHD —
87107-20690 Unit Sub-assy, Heater Radiator
2002-08 → 2005-09 ended
ZZT23# LHD —
87130D — Blower Assy
87130-20600 note Blower Assy
1999-08 → 2002-08 ended
ZZT23# RHD —
87130-20610 Blower Assy
1999-08 → 2002-08 ended
ZZT23# RHD —
87130-20620 note Blower Assy
1999-08 → 2000-08 ended
ZZT230 LHD —
87130-20630 Blower Assy
1999-08 → 2000-08 ended
ZZT230 LHD —
87130-20650 note Blower Assy
2000-08 → 2002-08 ended
ZZT23# LHD —
87130-20660 Blower Assy
2000-08 → 2002-08 ended
ZZT23# LHD —
87130-20600 note Blower Assy
2002-08 → 2005-09 ended
ZZT23# RHD —
87130-20610 Blower Assy
2002-08 → 2005-09 ended
ZZT23# RHD —
87130-20650 note Blower Assy
2002-08 → 2005-09 ended
ZZT23# LHD —
87130-20660 Blower Assy
2002-08 → 2005-09 ended
ZZT23# LHD —
87138C — Resistor, Blower
87138-20350 Resistor, Blower
1999-08 → 2002-08 ended
ZZT23# RHD —
87138-20360 Resistor, Blower
1999-08 → 2002-08 ended
ZZT23# LHD —
87138-20350 Resistor, Blower
2002-08 → 2005-09 ended
ZZT23# RHD —
87138-20360 Resistor, Blower
2002-08 → 2005-09 ended
ZZT23# LHD —
87139C — Filter, Clean Air
87139-47010 Filter, Clean Air
1999-08 → 2002-08 ended
ZZT23# —
87139-47010 Filter, Clean Air
2002-08 → 2005-09 ended
ZZT23# —
87174G — Guide, Air Heater
87174-20020 Guide, Air Heater
1999-08 → 2002-08 ended
ZZT230 —
87174-20020 Guide, Air Heater
2002-08 → 2005-09 ended
ZZT230 —
87237B — Cover, Heater Piping
87237-20010 Cover, Heater Piping
1999-08 → 2002-08 ended
ZZT23# RHD —
87237-20020 Cover, Heater Piping
1999-08 → 2002-08 ended
ZZT23# LHD —
87237-20010 Cover, Heater Piping
2002-08 → 2005-09 ended
ZZT23# RHD —
87237-20020 Cover, Heater Piping
2002-08 → 2005-09 ended
ZZT23# LHD —
88508 — Filter Sub-assy, Clean Air
88508-20210 Filter Sub-assy, Clean Air
2000-08 → 2002-08 ended
ZZT23# —
88539 — Hose, Cooler Unit Drain, NO.1
88539-20300 Hose, Cooler Unit Drain, NO.1
1999-08 → 2002-08 ended
ZZT23# RHD —
88539-20310 Hose, Cooler Unit Drain, NO.1
1999-08 → 2002-08 ended
ZZT23# LHD —
88539-20300 Hose, Cooler Unit Drain, NO.1
2002-08 → 2005-09 ended
ZZT23# RHD —
88539-20310 Hose, Cooler Unit Drain, NO.1
2002-08 → 2005-09 ended
ZZT23# LHD —
88899M — Plate, Cover(FOR AIR FILTER)
88899-20300 Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08 ended
ZZT231 RHD —
88899-20300 note Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08 ended
ZZT230 RHD —
88899-20310 Plate, Cover(FOR AIR FILTER)
1999-08 → 2002-08 ended
ZZT230 RHD —
88899-20320 Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08 ended
ZZT231 LHD —
88899-20320 note Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08 ended
ZZT230 LHD —
88899-20330 Plate, Cover(FOR AIR FILTER)
1999-08 → 2002-08 ended
ZZT230 LHD —
88899-20300 note Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09 ended
ZZT230 RHD —
88899-20310 Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09 ended
ZZT230 RHD —
88899-20320 Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09 ended
ZZT231 LHD —
88899-20320 note Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09 ended
ZZT230 LHD —
88899-20330 Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09 ended
ZZT230 LHD —
88899N — Plate, Cover
88899-20340 Plate, Cover
2000-08 → 2002-08 ended
ZZT23# —
88899-41010 Plate, Cover
1999-08 → 2000-08 ended
ZZT230 —
88899-20340 Plate, Cover
2002-08 → 2005-09 ended
ZZT23# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
