Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

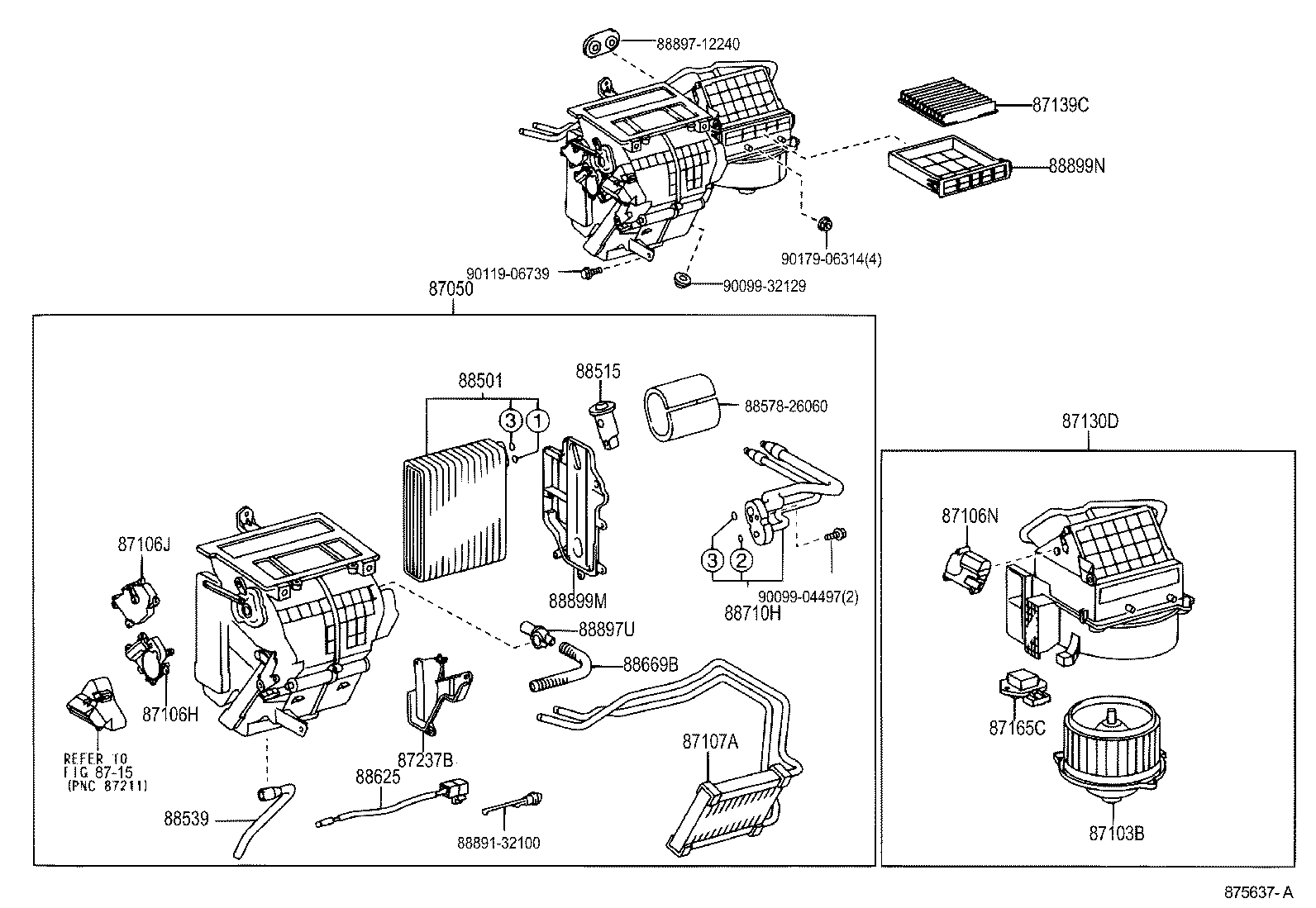

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-20440 note |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87050-20450 note |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 87050-20450 |
Radiator Assy, Air Conditioner
2000-08 → 2002-08
ended
|
ZZT231 RHD | — | |
| 87050-20460 |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 87050-20480 note |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87050-20500 note |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 87050-20500 |
Radiator Assy, Air Conditioner
2000-08 → 2002-08
ended
|
ZZT231 LHD | — | |
| 87050-20520 |
Radiator Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 87050-20440 note |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87050-20450 |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT231 RHD | — | |
| 87050-20450 note |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT230 RHD | — | |
| 87050-20460 |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT230 RHD | — | |
| 87050-20480 note |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87050-20500 |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT231 LHD | — | |
| 87050-20500 note |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT230 LHD | — | |
| 87050-20520 |
Radiator Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT230 LHD | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-20120 |
Motor Sub-assy, Blower W/Fan
1999-08 → 2001-06
ended
|
ZZT23# RHD | — | |
| 87103-20130 |
Motor Sub-assy, Blower W/Fan
1999-08 → 2002-02
ended
|
ZZT23# LHD | — | |
| 87103-20150 |
Motor Sub-assy, Blower W/Fan
2001-06 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87103-20160 |
Motor Sub-assy, Blower W/Fan
2002-02 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87103-20150 |
Motor Sub-assy, Blower W/Fan
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87103-20160 |
Motor Sub-assy, Blower W/Fan
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87106H — Servo Sub-assy, Damper(FOR AIRMIX) | ||||
| 87106-20420 |
Servo Sub-assy, Damper(FOR AIRMIX)
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87106-20430 |
Servo Sub-assy, Damper(FOR AIRMIX)
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87106-20420 |
Servo Sub-assy, Damper(FOR AIRMIX)
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87106-20430 |
Servo Sub-assy, Damper(FOR AIRMIX)
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87106J — Servo Sub-assy, Damper(FOR MODE) | ||||
| 87106-20390 |
Servo Sub-assy, Damper(FOR MODE)
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87106-20410 |
Servo Sub-assy, Damper(FOR MODE)
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87106-20390 |
Servo Sub-assy, Damper(FOR MODE)
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87106-20410 |
Servo Sub-assy, Damper(FOR MODE)
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87106N — Servo Sub-assy, Damper(FOR RECIRCULATION) | ||||
| 87106-20440 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 87106-20440 |
Servo Sub-assy, Damper(FOR RECIRCULATION)
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-20670 |
Unit Sub-assy, Heater Radiator
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87107-20690 |
Unit Sub-assy, Heater Radiator
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87107-20670 |
Unit Sub-assy, Heater Radiator
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87107-20690 |
Unit Sub-assy, Heater Radiator
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87130D — Blower Assy | ||||
| 87130-20600 note |
Blower Assy
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87130-20610 |
Blower Assy
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87130-20620 note |
Blower Assy
1999-08 → 2000-08
ended
|
ZZT230 LHD | — | |
| 87130-20630 |
Blower Assy
1999-08 → 2000-08
ended
|
ZZT230 LHD | — | |
| 87130-20650 note |
Blower Assy
2000-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87130-20660 |
Blower Assy
2000-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87130-20600 note |
Blower Assy
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87130-20610 |
Blower Assy
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87130-20650 note |
Blower Assy
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87130-20660 |
Blower Assy
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-47010 |
Filter, Clean Air
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 87139-47010 |
Filter, Clean Air
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 87165C — Control, Blower Motor | ||||
| 87165-41010 |
Control, Blower Motor
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 87165-41010 |
Control, Blower Motor
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 87237B — Cover, Heater Piping | ||||
| 87237-20010 |
Cover, Heater Piping
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 87237-20020 |
Cover, Heater Piping
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 87237-20010 |
Cover, Heater Piping
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 87237-20020 |
Cover, Heater Piping
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-20490 |
Evaporator Sub-assy, Cooler, NO.1
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 88501-20500 |
Evaporator Sub-assy, Cooler, NO.1
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 88501-20490 |
Evaporator Sub-assy, Cooler, NO.1
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 88501-20500 |
Evaporator Sub-assy, Cooler, NO.1
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-48040 |
Valve, Cooler Expansion
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88515-28160 |
Valve, Cooler Expansion
2003-10 → 2005-09
ended
|
ZZT23# | — | |
| 88515-28160 note |
Valve, Cooler Expansion
2004-03 → 2005-09
ended
|
ZZT23# | — | |
| 88515-48040 |
Valve, Cooler Expansion
2002-08 → 2003-10
ended
|
ZZT23# | — | |
| 88515-48040 note |
Valve, Cooler Expansion
2002-08 → 2004-02
ended
|
ZZT23# | — | |
| 88539 — Hose, Cooler Unit Drain, NO.1 | ||||
| 88539-20300 |
Hose, Cooler Unit Drain, NO.1
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 88539-20310 |
Hose, Cooler Unit Drain, NO.1
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 88539-20300 |
Hose, Cooler Unit Drain, NO.1
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 88539-20310 |
Hose, Cooler Unit Drain, NO.1
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-20510 |
Thermistor, Cooler, NO.1
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88625-20510 |
Thermistor, Cooler, NO.1
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 88669B — Hose, Cooler Air | ||||
| 88669-20160 |
Hose, Cooler Air
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88669-20160 |
Hose, Cooler Air
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 88710H — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-20780 |
Tube & Accessory Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT23# RHD | — | |
| 88710-20790 |
Tube & Accessory Assy, Air Conditioner
1999-08 → 2002-08
ended
|
ZZT23# LHD | — | |
| 88710-20780 |
Tube & Accessory Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT23# RHD | — | |
| 88710-20790 |
Tube & Accessory Assy, Air Conditioner
2002-08 → 2005-09
ended
|
ZZT23# LHD | — | |
| 88897U — Pipe, Aspirator | ||||
| 88897-12210 |
Pipe, Aspirator
1999-08 → 2002-08
ended
|
ZZT23# | — | |
| 88897-12210 |
Pipe, Aspirator
2002-08 → 2005-09
ended
|
ZZT23# | — | |
| 88899M — Plate, Cover(FOR AIR FILTER) | ||||
| 88899-20300 note |
Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 88899-20300 |
Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08
ended
|
ZZT231 RHD | — | |
| 88899-20310 |
Plate, Cover(FOR AIR FILTER)
1999-08 → 2002-08
ended
|
ZZT230 RHD | — | |
| 88899-20320 |
Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08
ended
|
ZZT231 LHD | — | |
| 88899-20320 note |
Plate, Cover(FOR AIR FILTER)
2000-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 88899-20330 |
Plate, Cover(FOR AIR FILTER)
1999-08 → 2002-08
ended
|
ZZT230 LHD | — | |
| 88899-20300 note |
Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09
ended
|
ZZT230 RHD | — | |
| 88899-20310 |
Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09
ended
|
ZZT230 RHD | — | |
| 88899-20320 |
Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09
ended
|
ZZT231 LHD | — | |
| 88899-20320 note |
Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09
ended
|
ZZT230 LHD | — | |
| 88899-20330 |
Plate, Cover(FOR AIR FILTER)
2002-08 → 2005-09
ended
|
ZZT230 LHD | — | |
| 88899N — Plate, Cover | ||||
| 88899-20340 |
Plate, Cover
2000-08 → 2002-08
ended
|
ZZT23# | — | |
| 88899-41010 |
Plate, Cover
1999-08 → 2000-08
ended
|
ZZT230 | — | |
| 88899-20340 |
Plate, Cover
2002-08 → 2005-09
ended
|
ZZT23# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
