Toyota Celica

1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

9 part groups · 2 illustrations

Illustrations

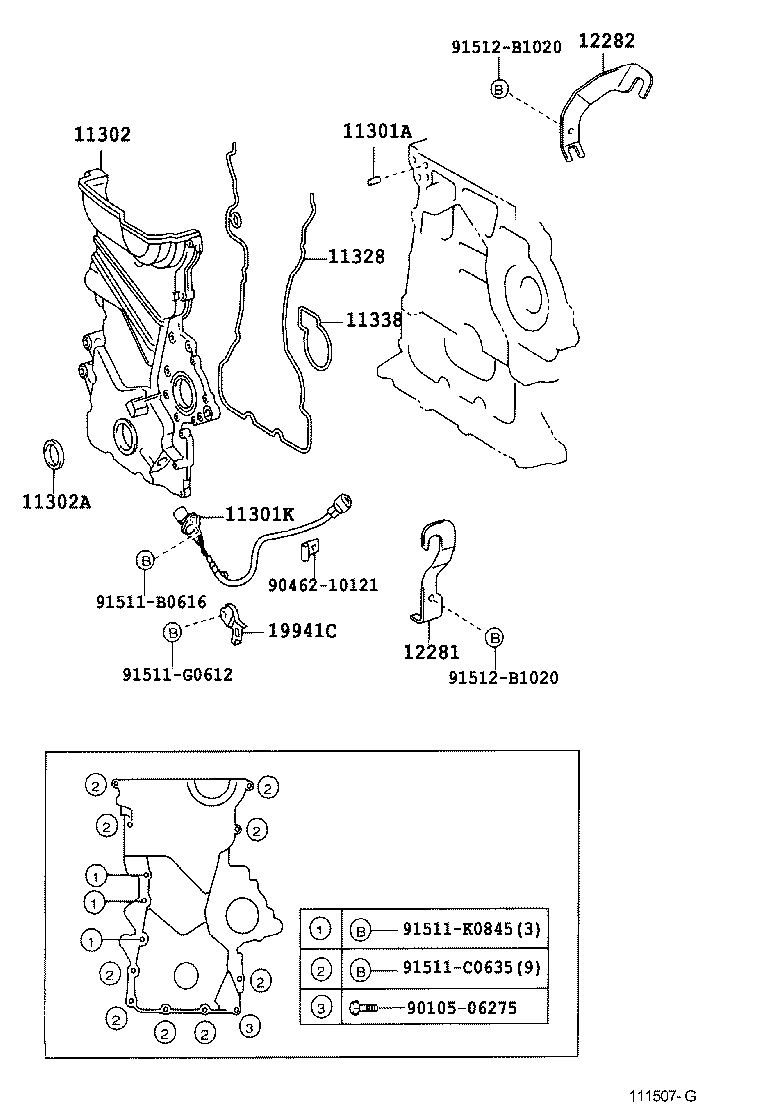

Figure 111506C 111506C 1999-08 → 2005-09 Figure 111507G 111507G 2000-08 → 2005-09

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
19941C Clamp, Cord(FOR CRANK POSITION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
