Toyota Celica
1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe
Discontinued model
Data version 2006-03

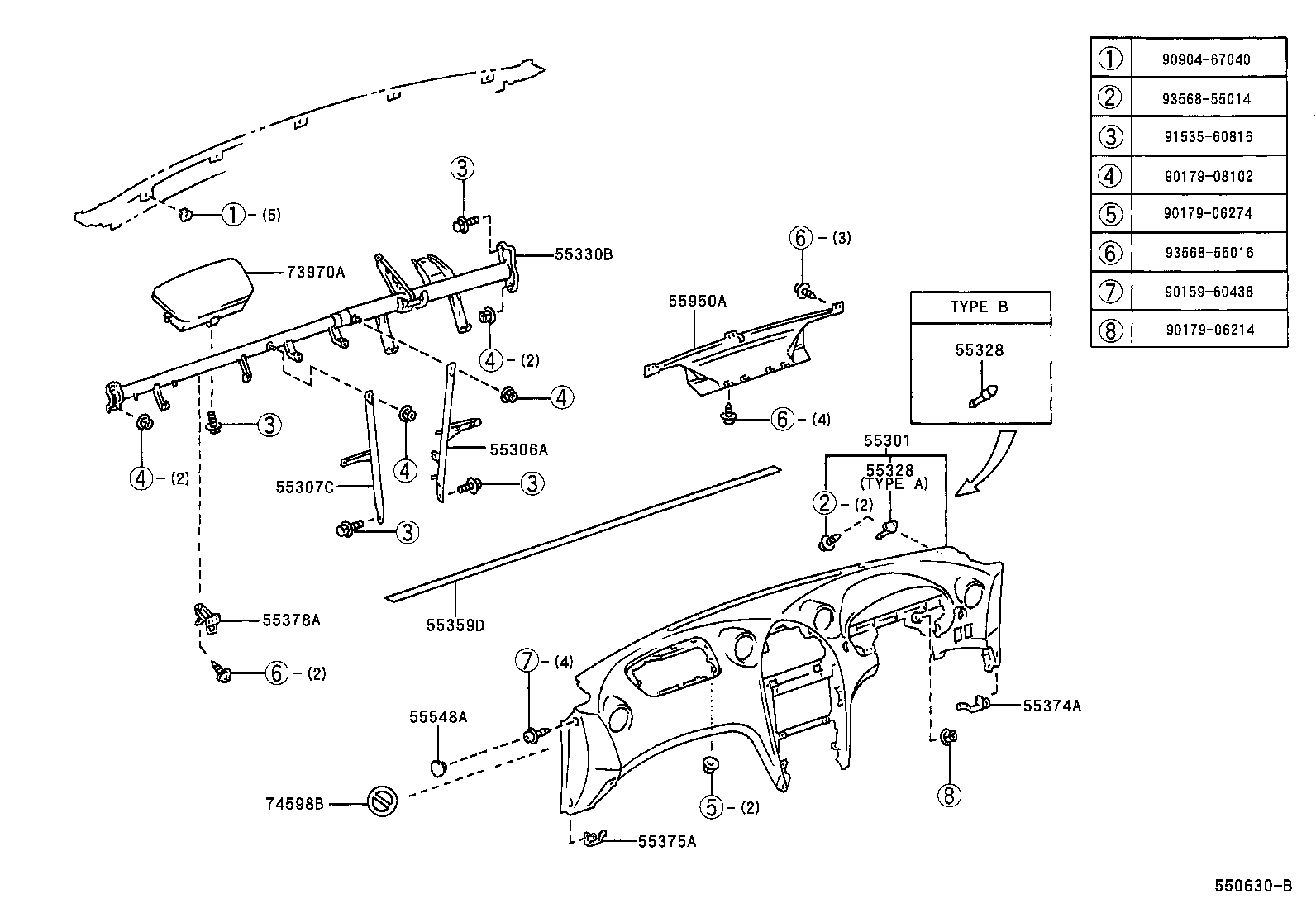

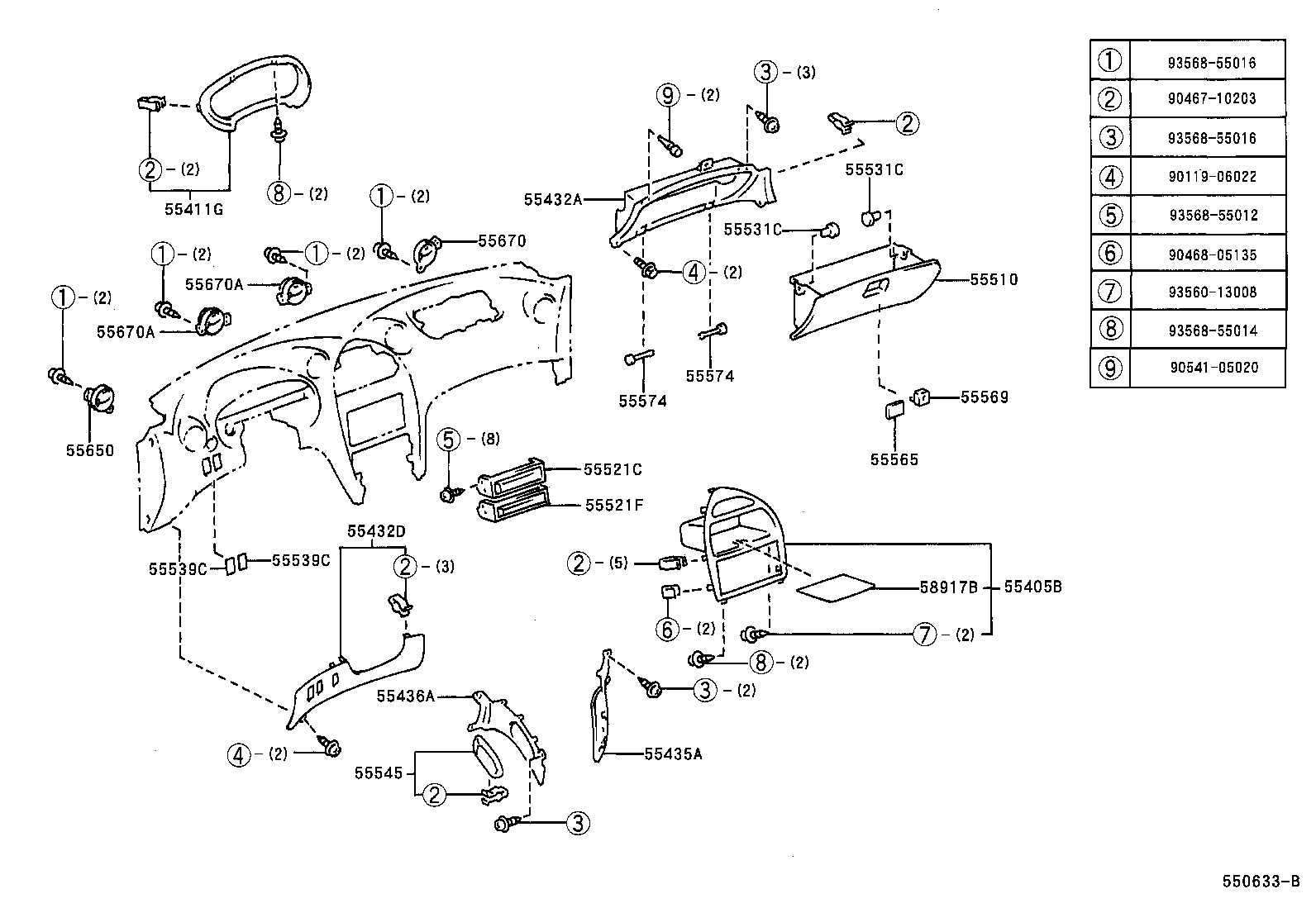

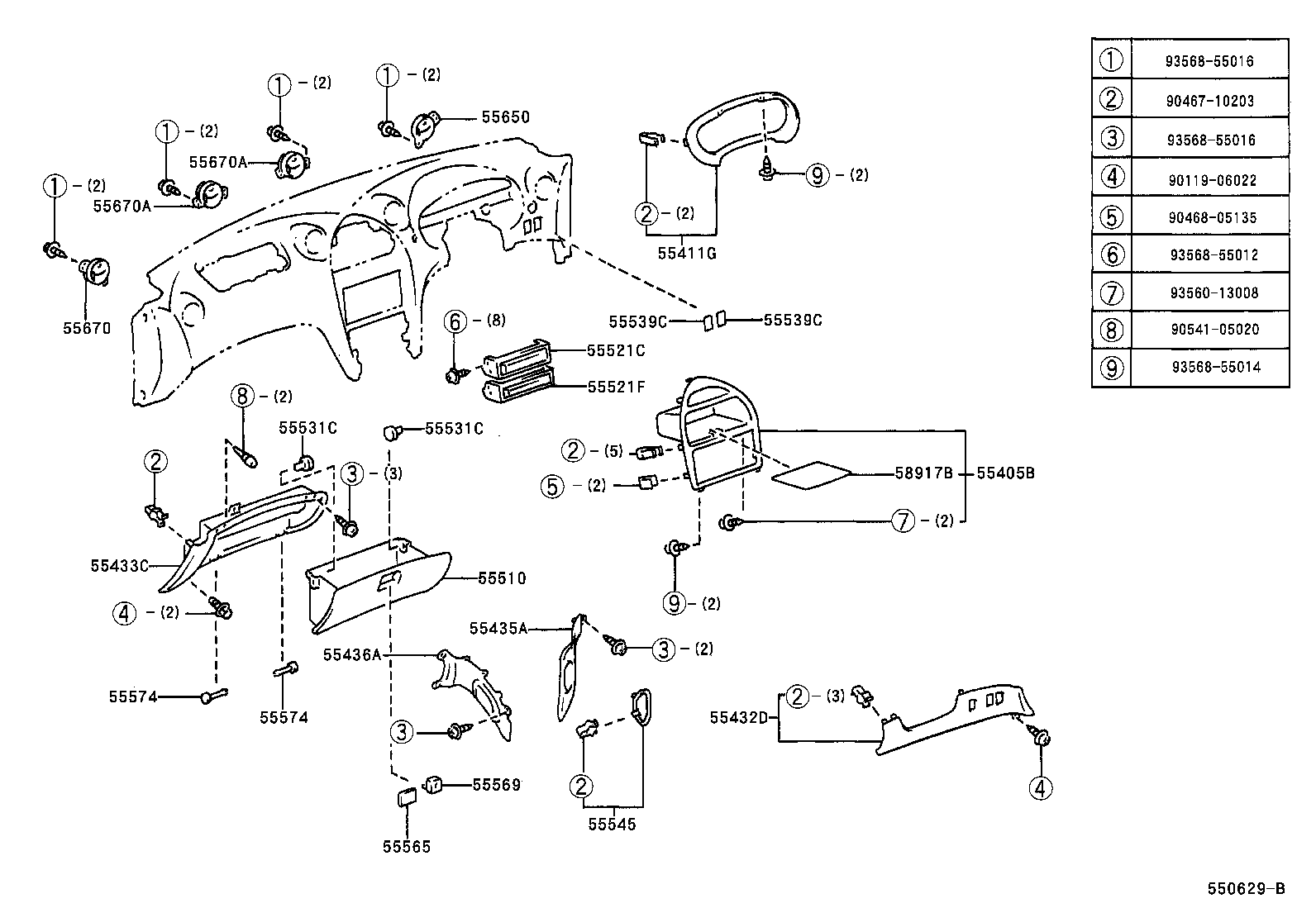

Instrument Panel & Glove Compartment
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55531C | Pin, Glove Door Stopper |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55548A | Cover, Instrument Panel Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55950A | Nozzle Assy, Defroster |
| 58917B | Mat, Box Bottom |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 74598B | Label, Passenger Airbag Caution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
