Toyota Celica

1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

30 part groups · 11 illustrations

Illustrations

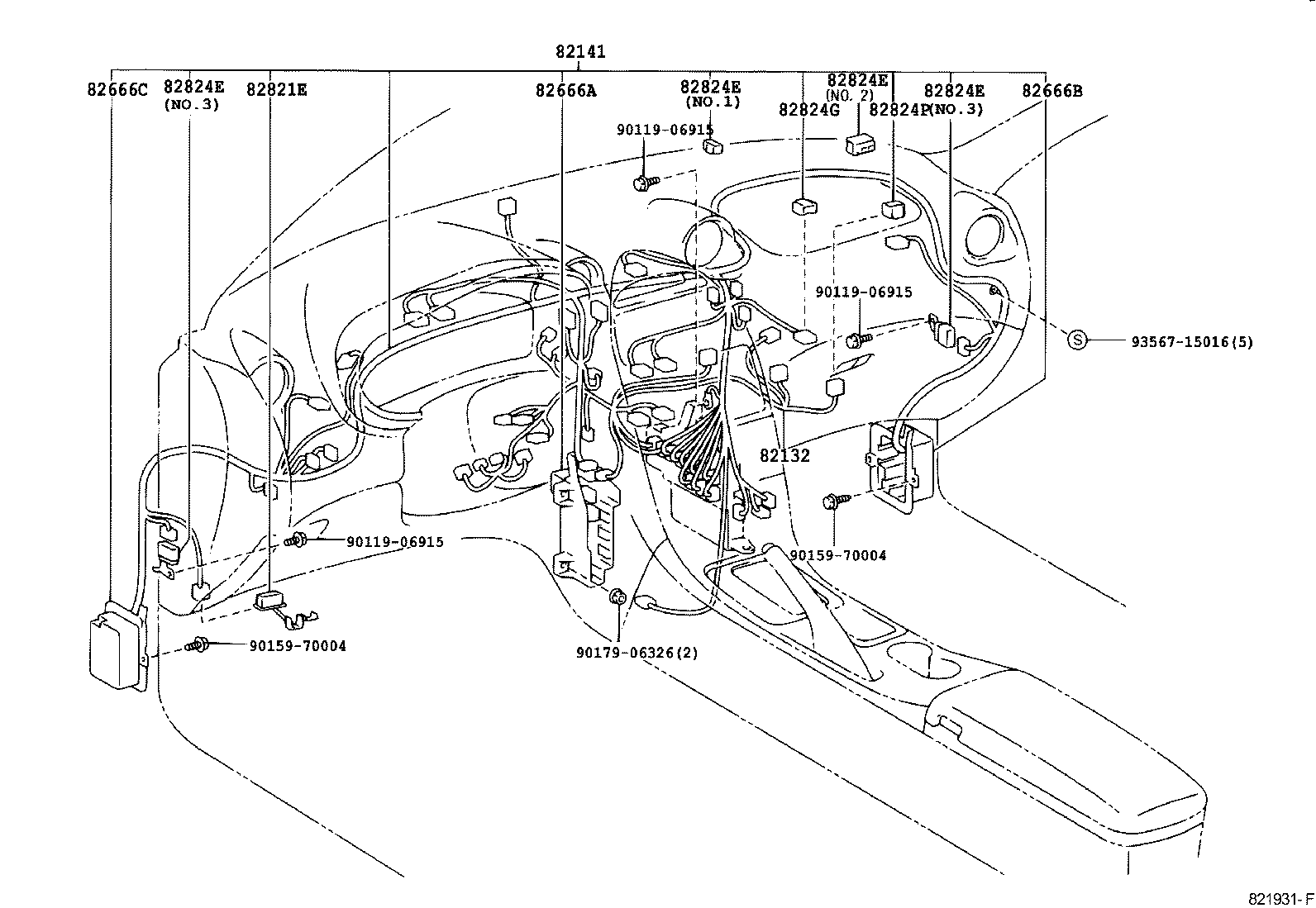

Figure 823527 823527 1999-08 → 2005-09 Figure 821922C 821922C 1999-08 → 2005-09 Figure 821912H 821912H 1999-08 → 2005-09 Figure 822386B 822386B 2000-08 → 2005-09 Figure 821928G 821928G 1999-08 → 2005-09 Figure 821931F 821931F 1999-08 → 2005-09 Figure 821929B 821929B 1999-08 → 2005-09 Figure 821916D 821916D 1999-08 → 2005-09 Figure 821917 821917 1999-08 → 2005-09 Figure 821930E 821930E 1999-08 → 2005-09 Figure 823163 823163 1999-08 → 2005-09

Part groups

PNCDescription

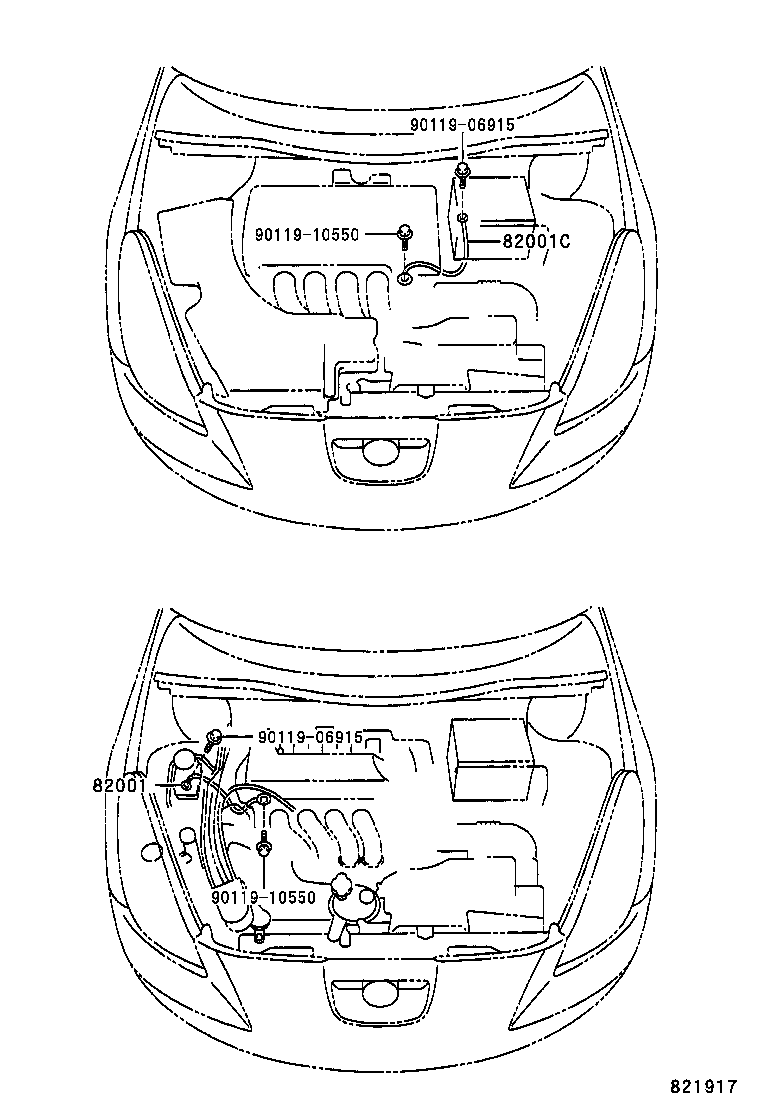

82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2

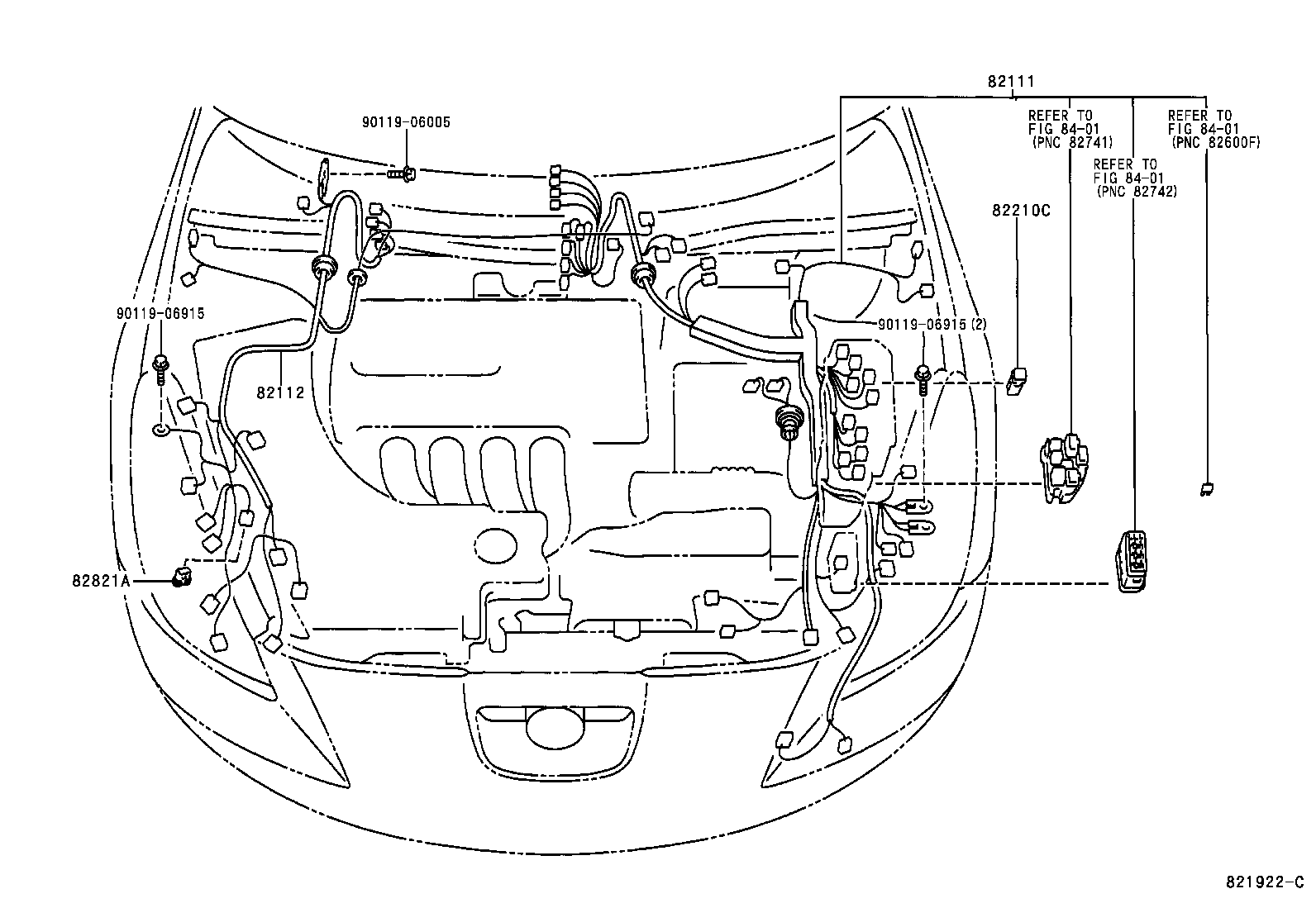

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

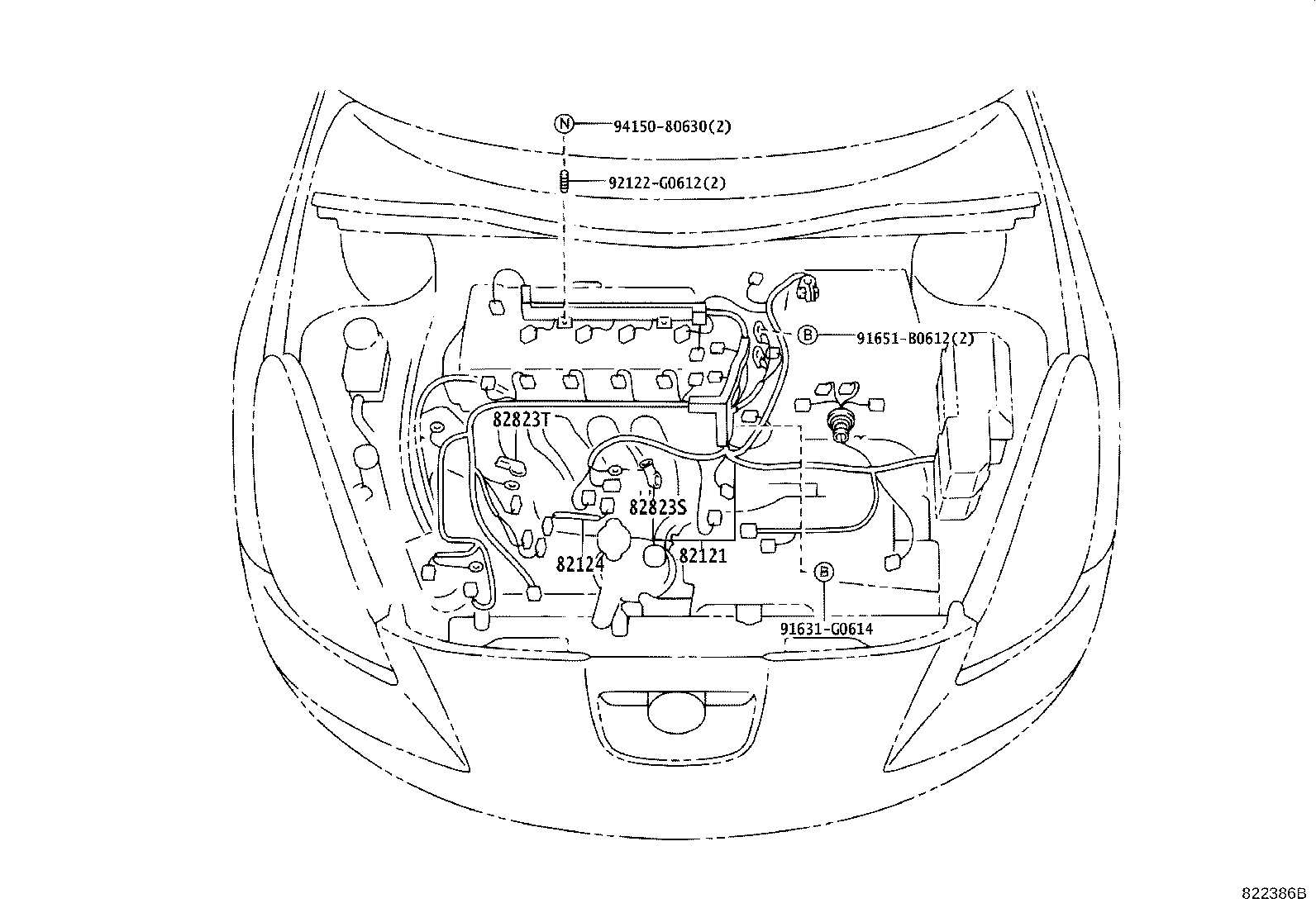

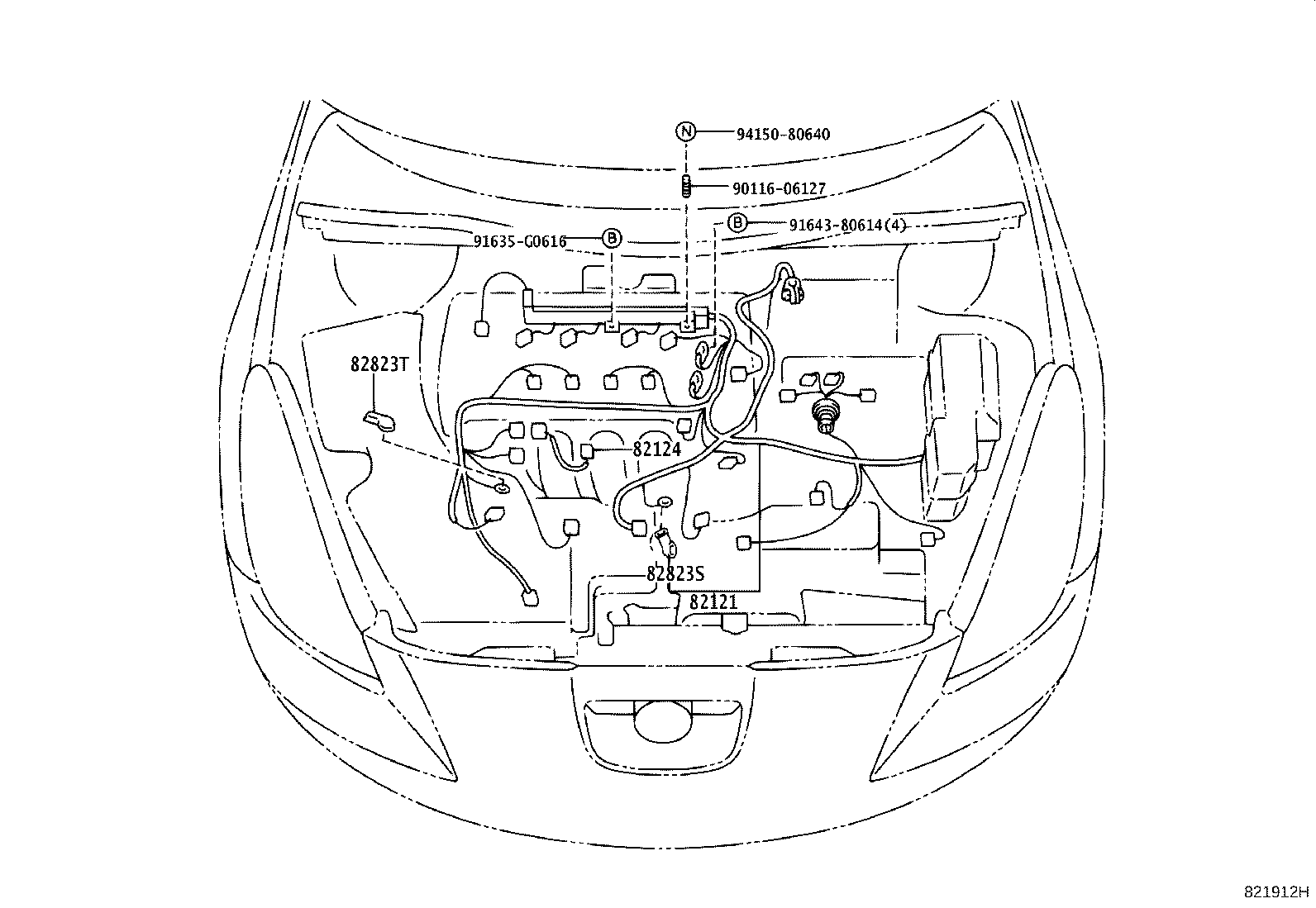

82121 Wire, Engine
82124 Wire, Engine, NO.4
82132 Wire, Cowl, NO.2

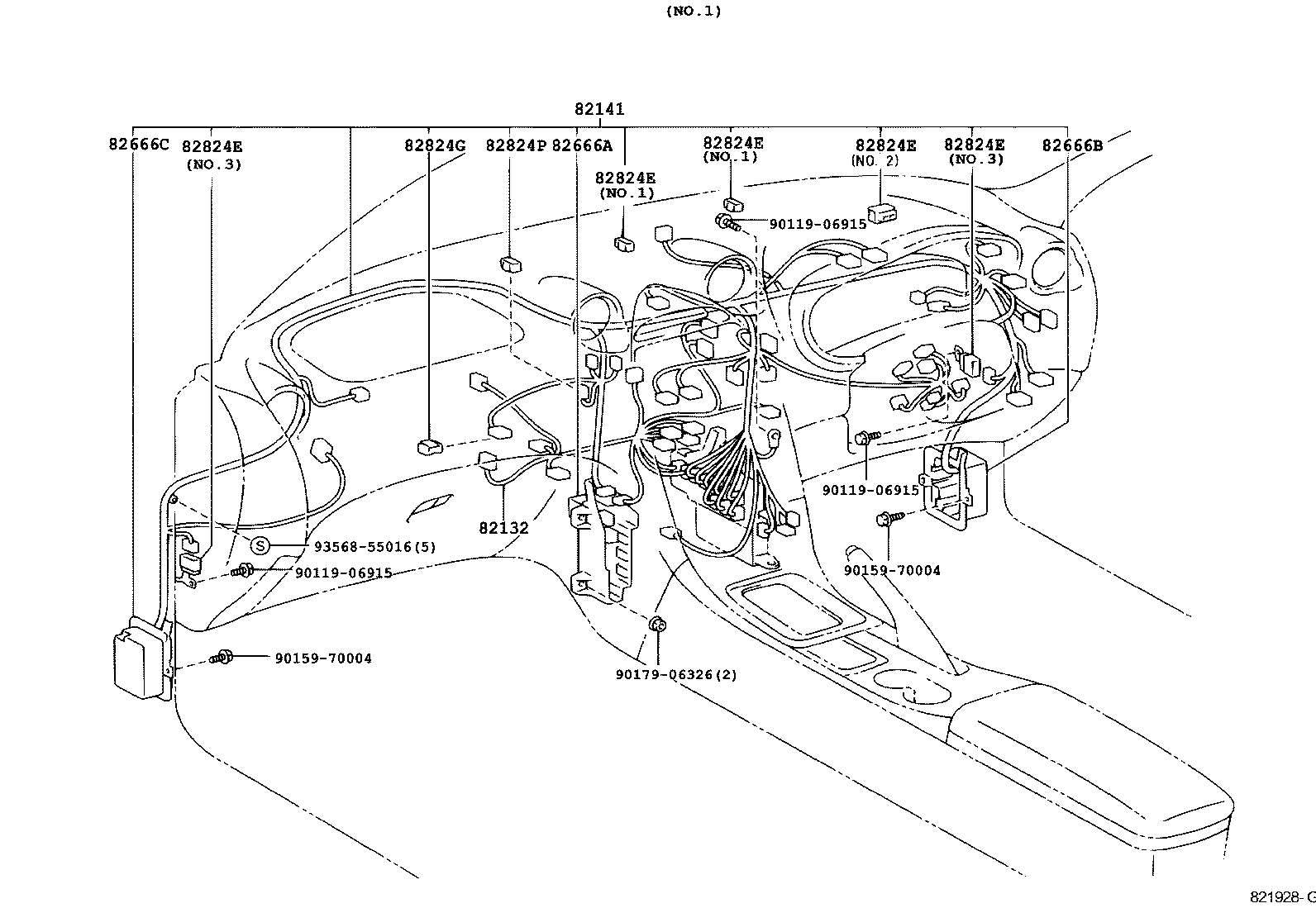

82141 Wire, Instrument Panel

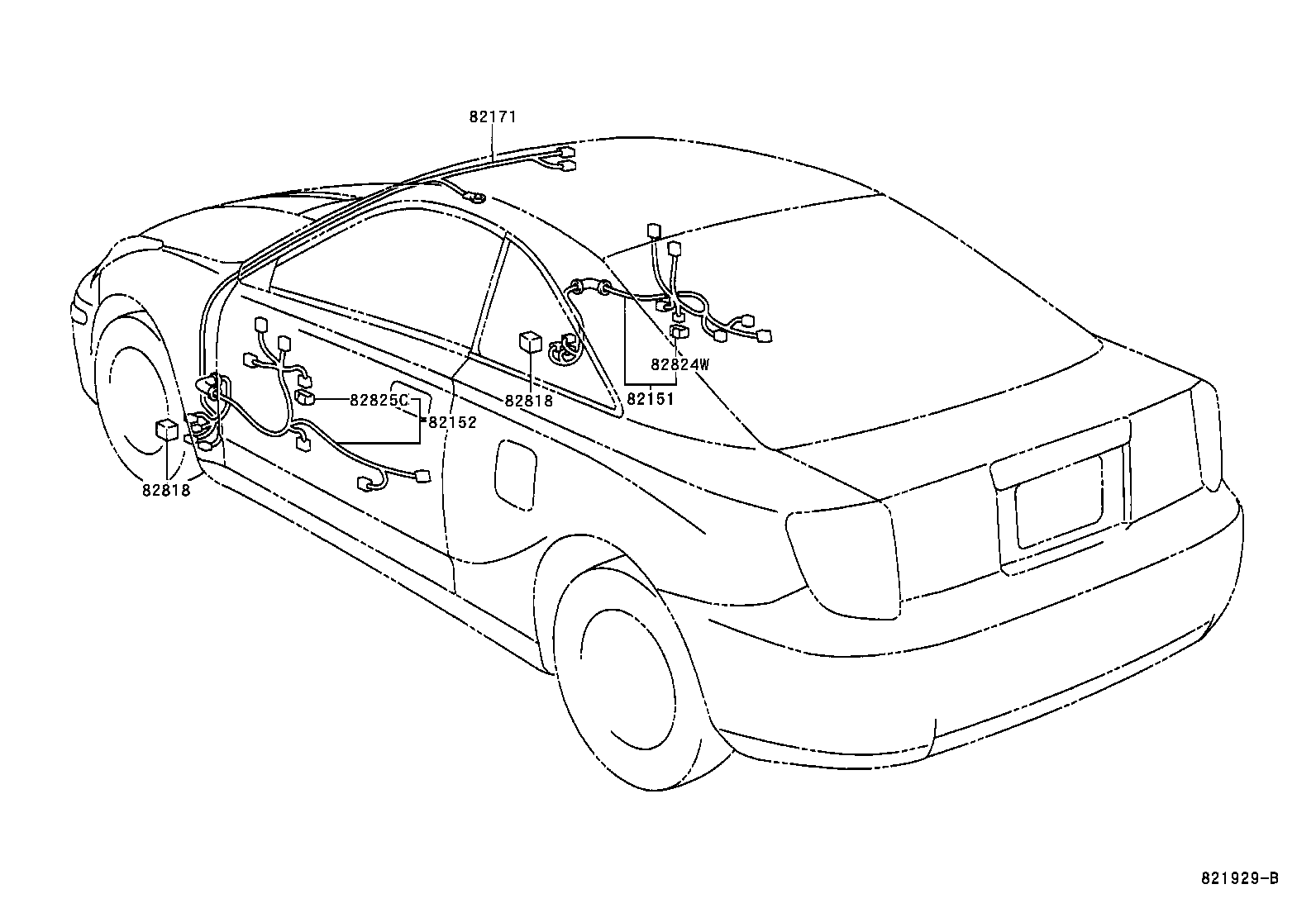

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

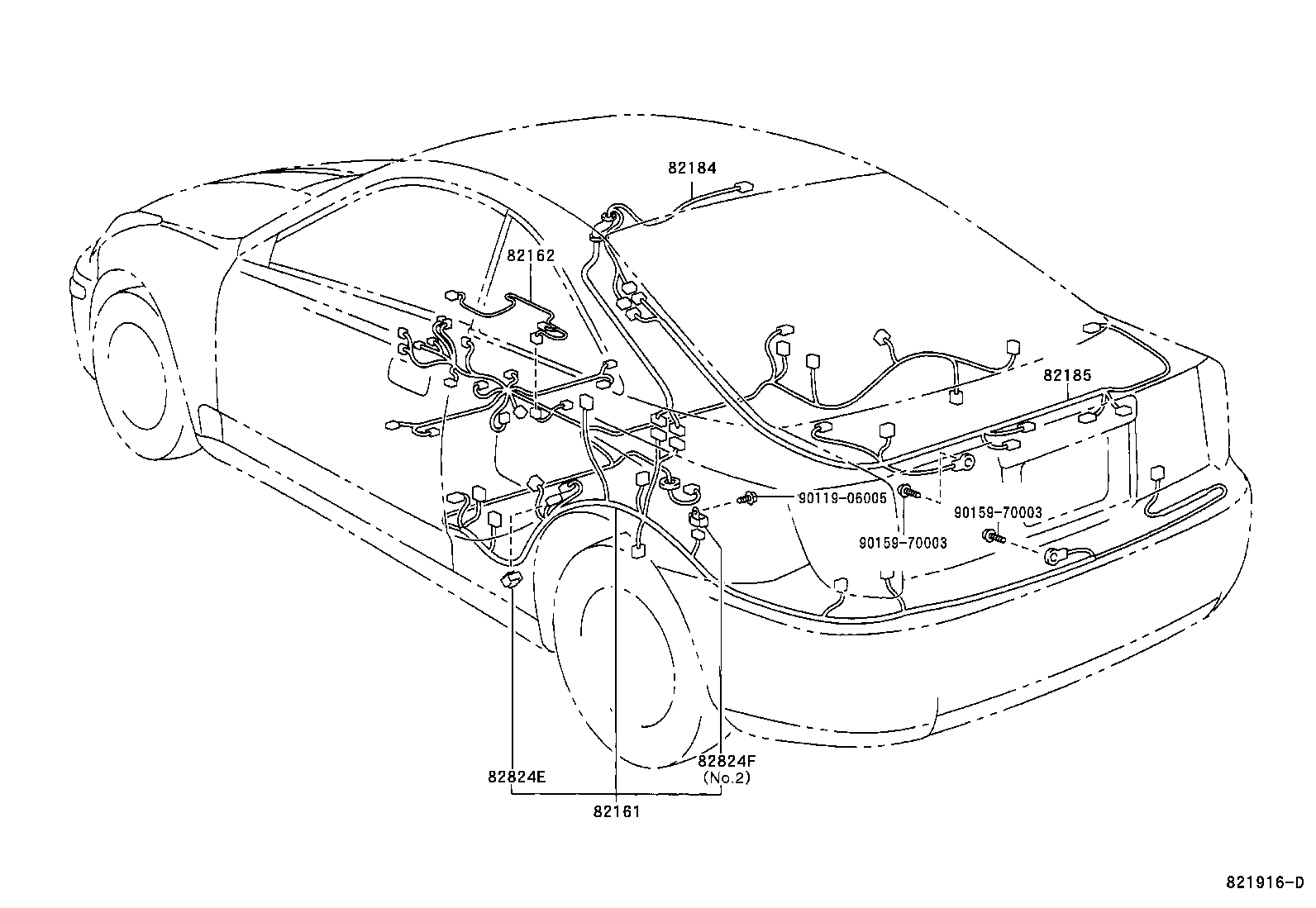

82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82210C Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82818 Protector, Wiring Harness, NO.2
82821A Cover, Connector
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

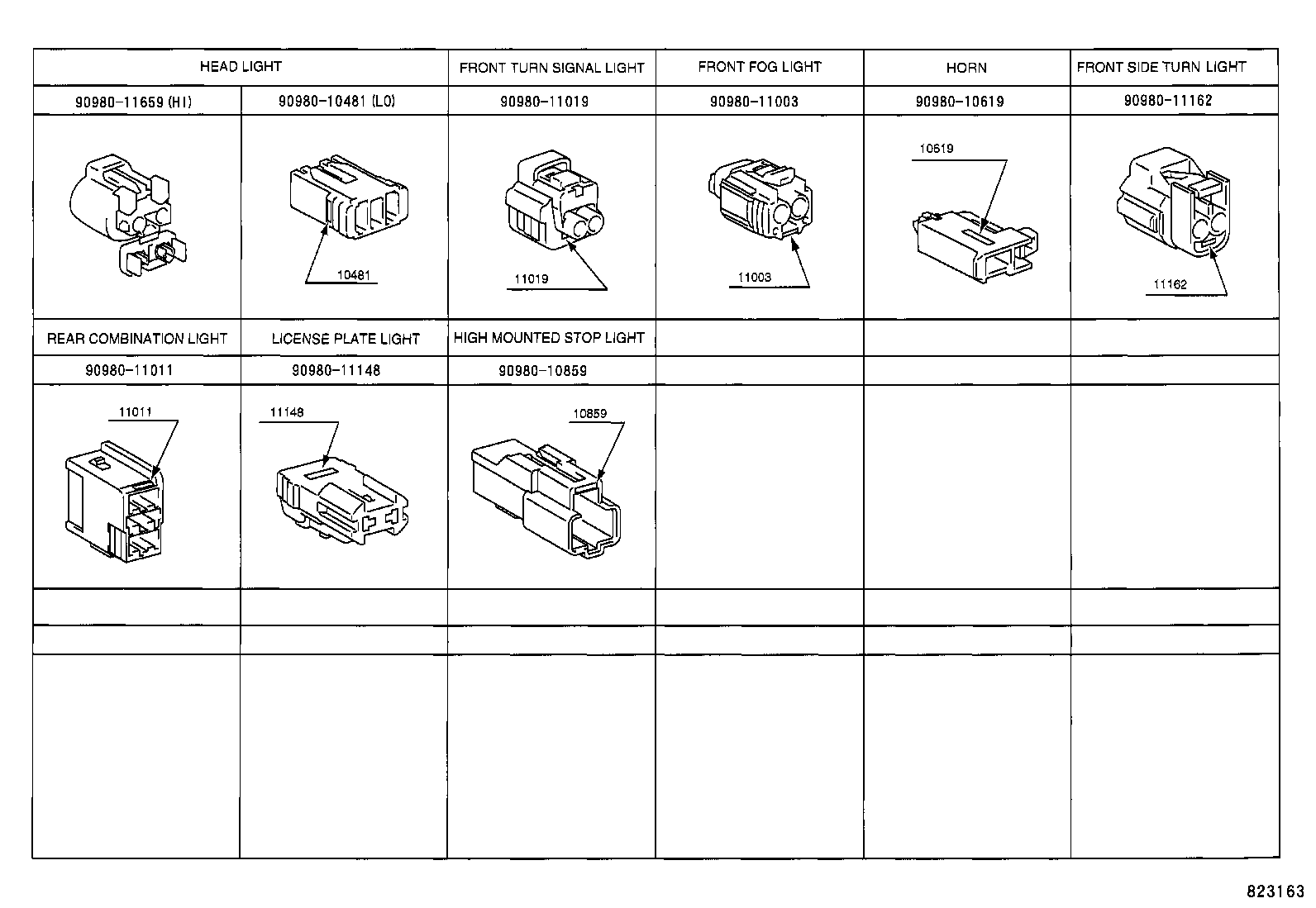

82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824P Connector, Wiring Harness
82824W Connector, Wiring Harness
82825C Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
