Toyota Celica

1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe

Discontinued model Data version 2006-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

11 part groups · 2 illustrations

Illustrations

Figure 844843A

844843A 1999-08 → 2002-08

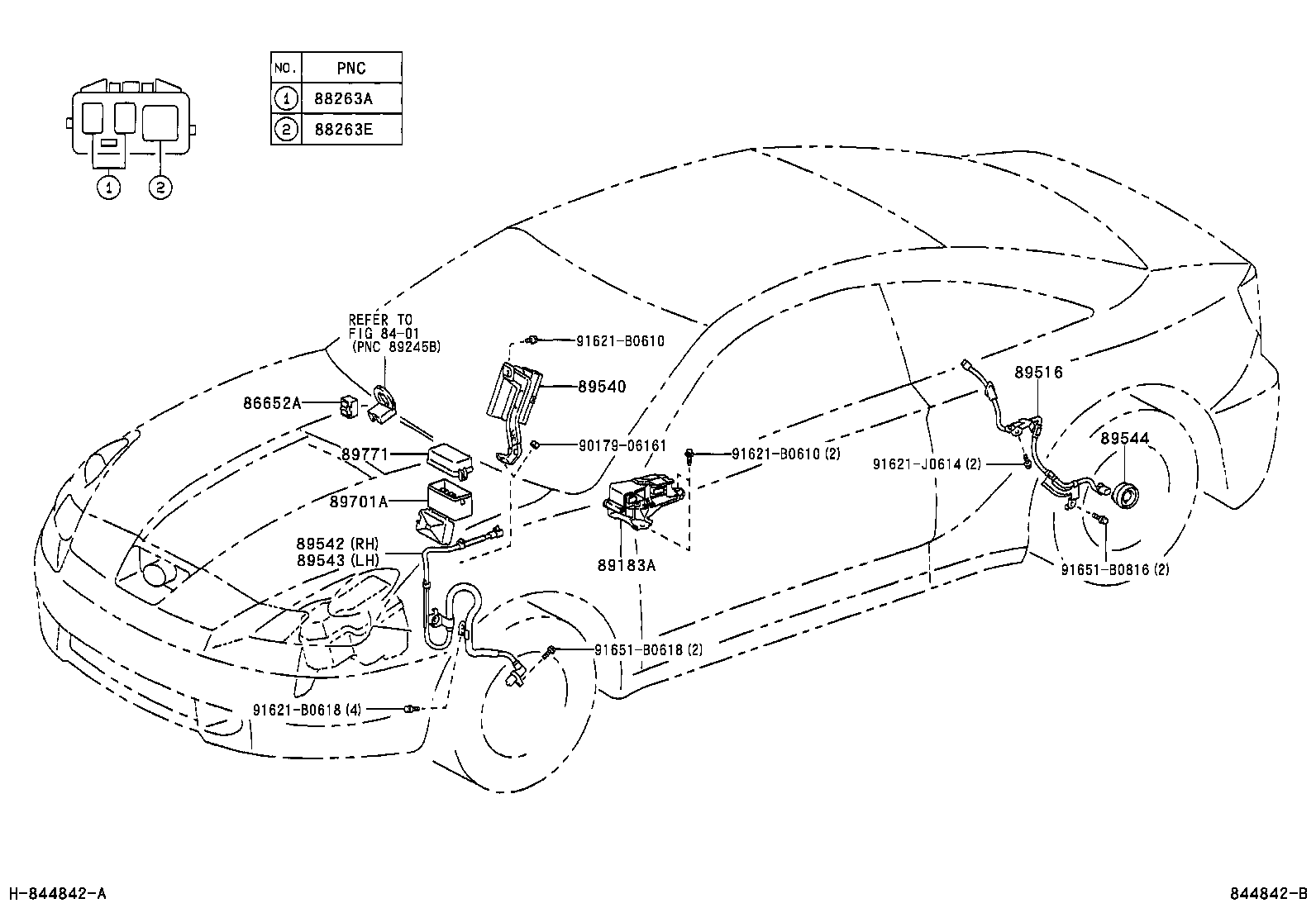

Figure 844842B

844842B 2002-08 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
88263E	Relay, Skid Control NO.2
89183A	Sensor, Yawrate
89516	Wire, Skid Control Sensor
89540	Computer Assy, Skid Control
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89701A	Block Sub-assy, Abs Relay
89771	Cover, Abs Relay Block, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
