Toyota Celica

1999-08 → 2005-09 · chassis ZZT23# · catalogue 252580 · Europe

Discontinued model Data version 2006-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

12 part groups · 9 illustrations

Illustrations

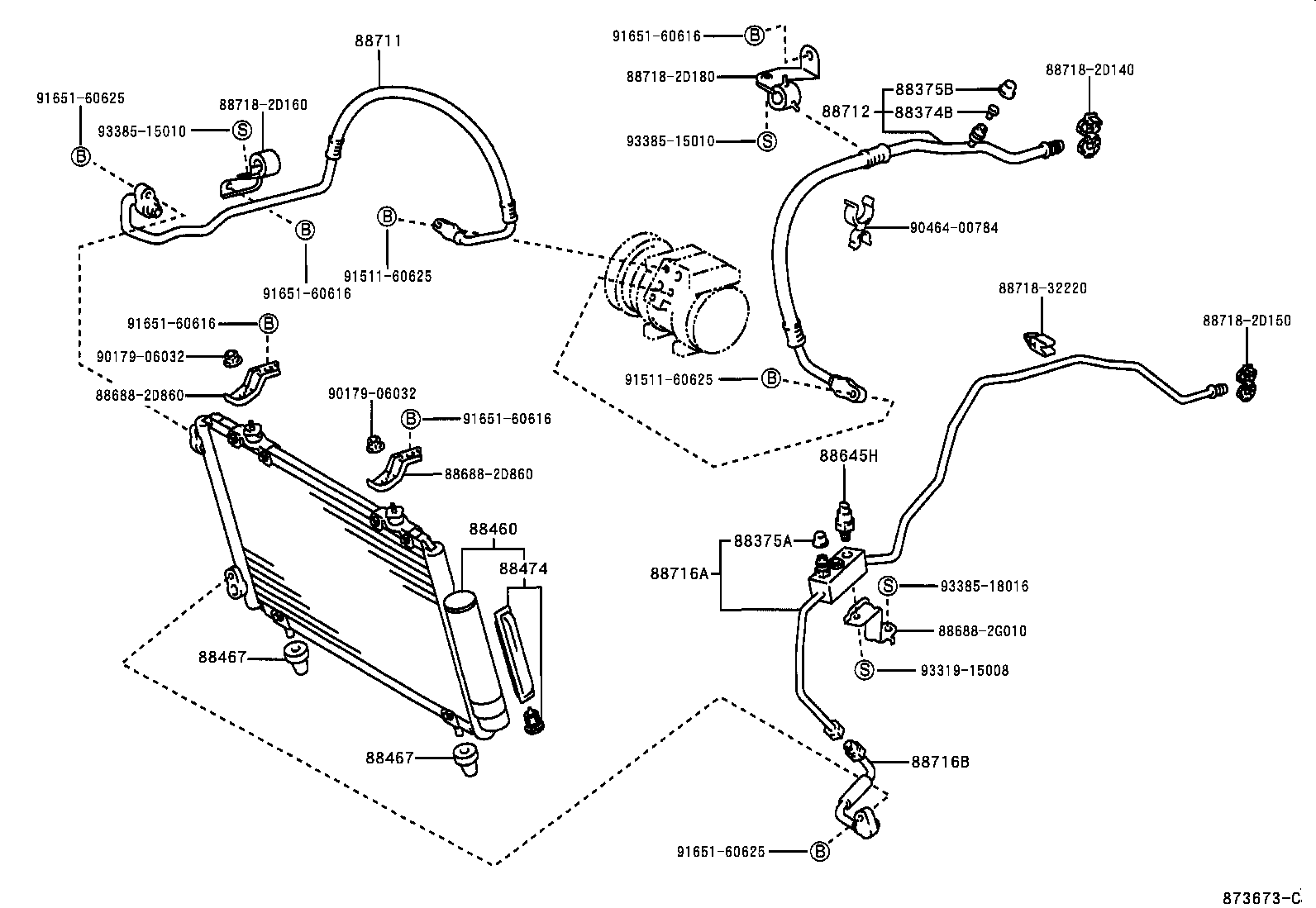

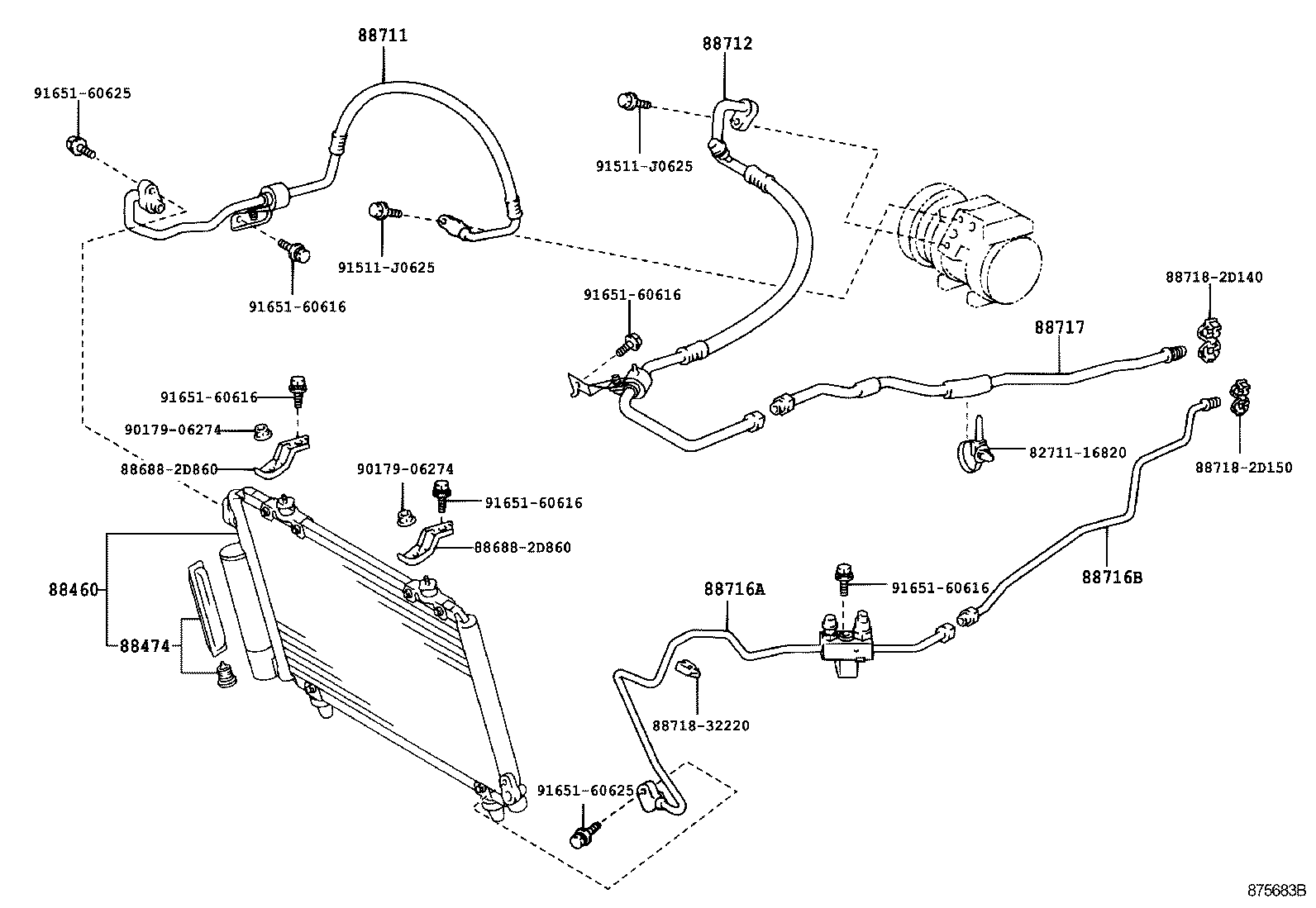

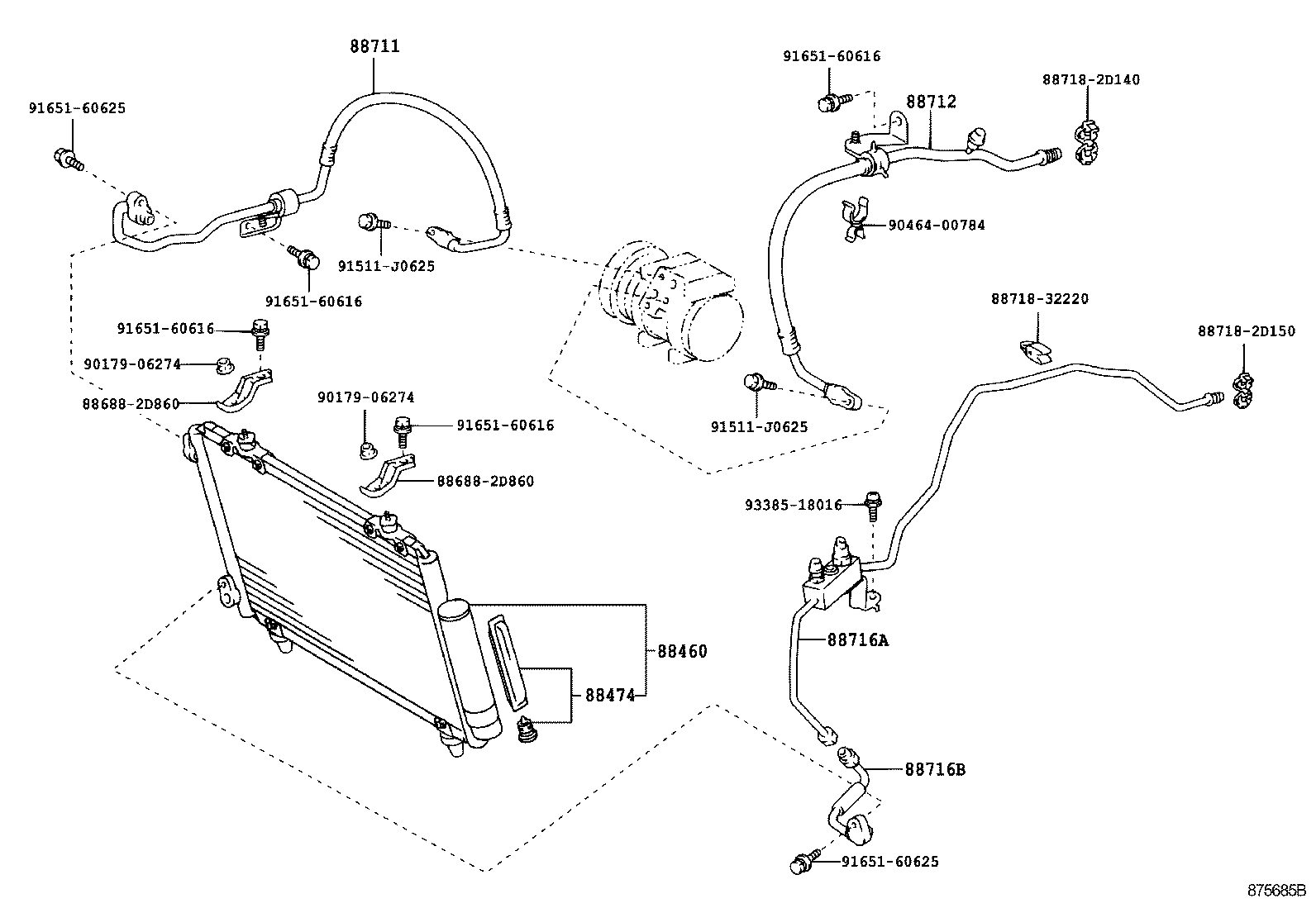

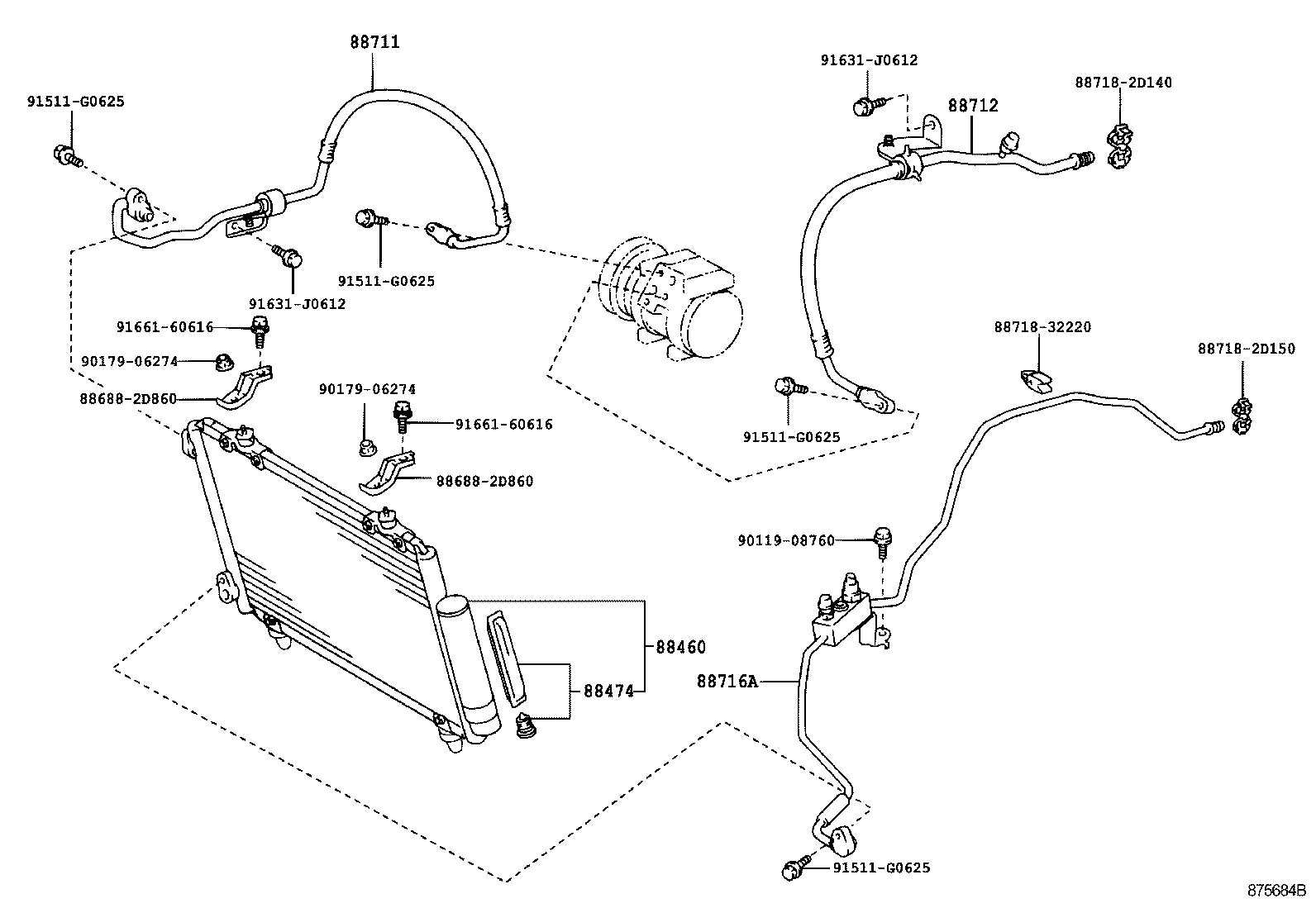

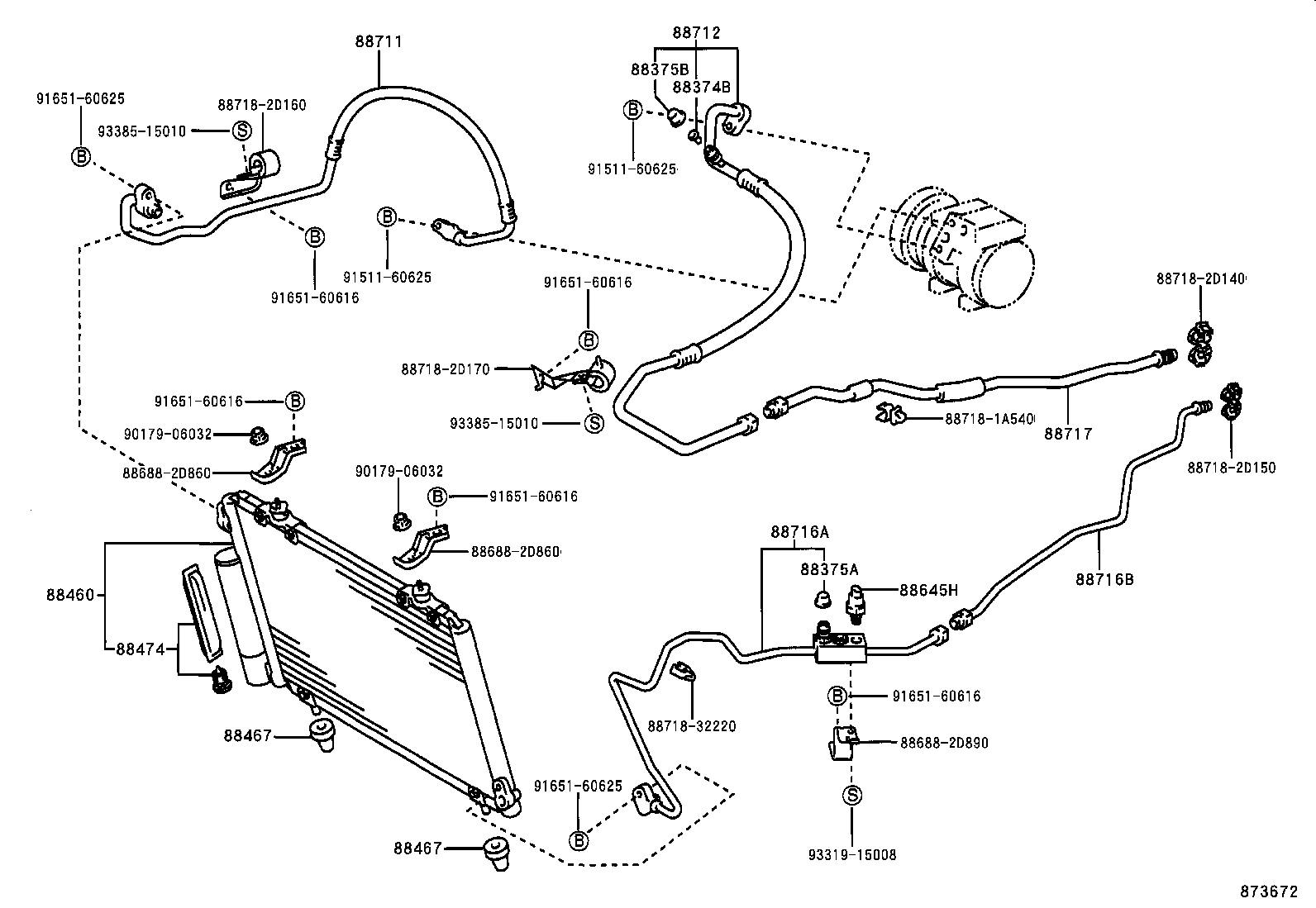

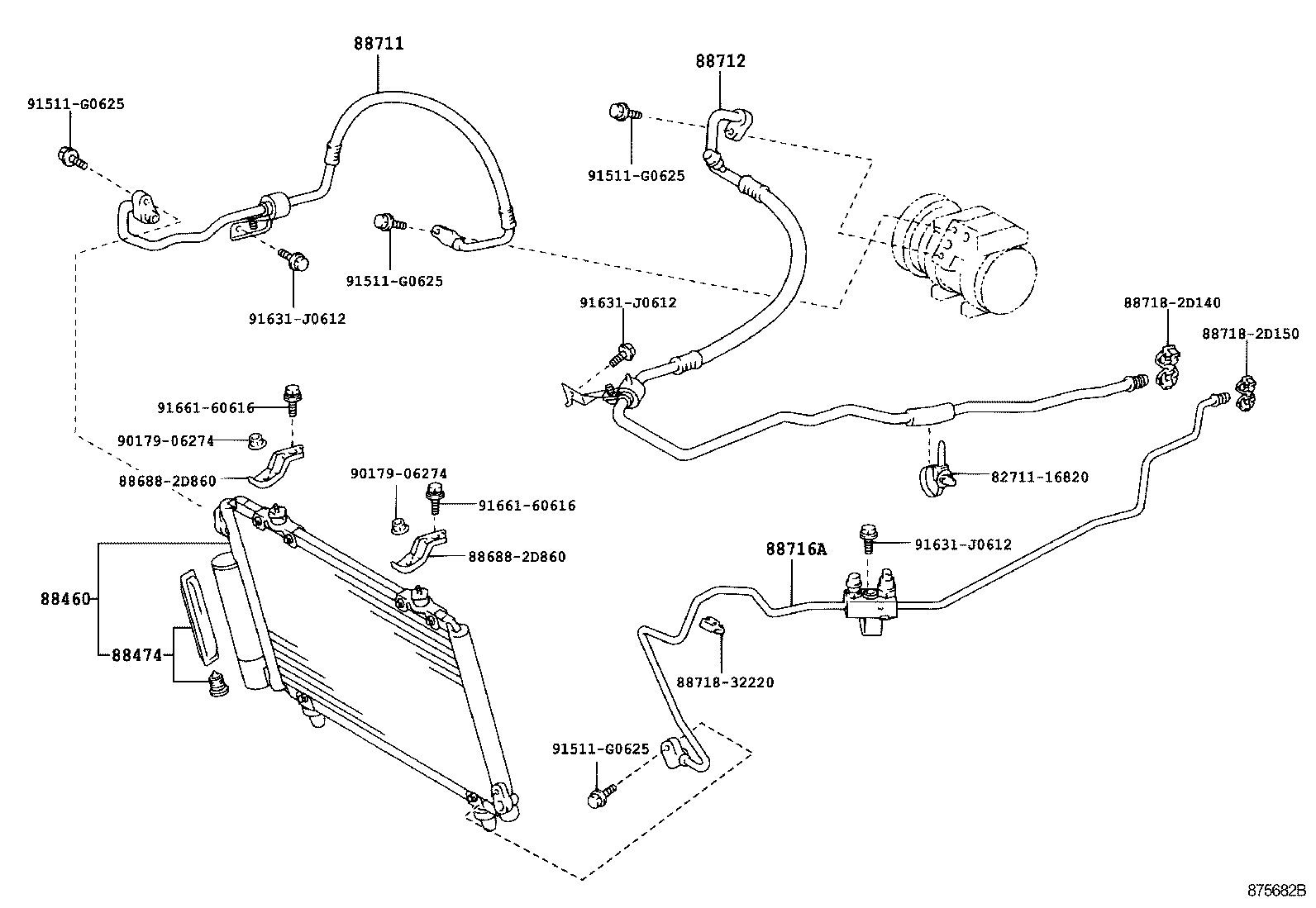

Figure 873602C 873602C 1999-08 → 2002-08 Figure 875682B 875682B 2002-08 → 2005-09 Figure 873672 873672 1999-08 → 2002-08 Figure 875683B 875683B 2002-08 → 2005-09 Figure 873603A 873603A 1999-08 → 2002-08 Figure 875684B 875684B 2002-08 → 2005-09 Figure 873673C 873673C 1999-08 → 2002-08 Figure 875685B 875685B 2002-08 → 2005-09 Figure 873595 873595 1999-08 → 2005-09

Part groups

PNCDescription
88374B Valve, Service, NO.1
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
