Toyota Corona
1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe
Discontinued model
Data version 1979-05

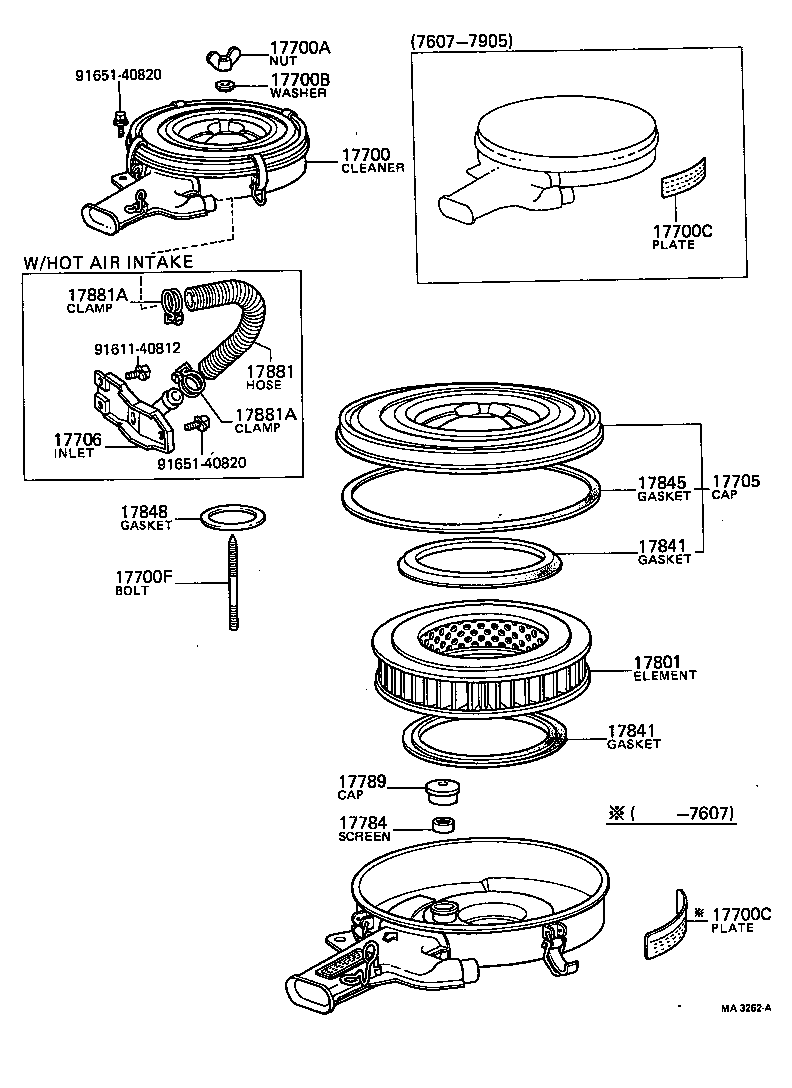

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-31163 note |
Cleaner Assy, Air
1973-08 → 1975-11
ended
|
12R RT100,116 | — | |
| 17700-31164 |
Cleaner Assy, Air
1975-11 → 1977-09
ended
|
12R RT100,116 | — | |
| 17700-31165 |
Cleaner Assy, Air
1977-09 → 1978-08
ended
|
12R RT100,116 | — | |
| 17700-31182 note |
Cleaner Assy, Air
1973-08 → 1975-11
ended
|
12R RT100,110,116 | — | |
| 17700-31260 |
Cleaner Assy, Air
1975-12 → 1977-09
ended
|
12RM RT100,110,116 | — | |
| 17700-31261 |
Cleaner Assy, Air
1977-09 → 1978-08
ended
|
12RM RT100,116 | — | |
| 17700-34192 note |
Cleaner Assy, Air
1973-08 → 1974-04
ended
|
16R RT102,112,117 EUR,GEN | — | |
| 17700-34193 note |
Cleaner Assy, Air
1974-04 → 1975-06
ended
|
16R RT102,112,117 EUR,GEN | — | |
| 17700-34194 note |
Cleaner Assy, Air
1975-06 → 1975-09
ended
|
16R RT102,112,117 EUR,GEN | — | |
| 17700-34202 |
Cleaner Assy, Air
1973-08 → 1974-04
ended
|
16R,18R RT102,104,112,117,118 ARL,EUR,GEN | — | |
| 17700-34203 |
Cleaner Assy, Air
1974-04 → 1975-09
ended
|
16R,18R RT102,104,112,117,118 ARL,EUR,GEN | — | |
| 17700-34354 |
Cleaner Assy, Air
1977-04 → 1978-08
ended
|
18RC RT104,118 | — | |
| 17700-34370 note |
Cleaner Assy, Air
1975-12 → 1976-07
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17700-34370 note |
Cleaner Assy, Air
1975-08 → 1975-12
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17700-34371 note |
Cleaner Assy, Air
1976-07 → 1977-01
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17700-34371 note |
Cleaner Assy, Air
1977-01 → 1977-04
ended
|
18RC RT104,118 | — | |
| 17700-34380 note |
Cleaner Assy, Air
1975-08 → 1976-07
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17700-34381 note |
Cleaner Assy, Air
1976-07 → 1977-01
ended
|
16R,18R RT102,104,114,118 | — | |
| 17700-34410 note |
Cleaner Assy, Air
1977-04 → 1979-05
ended
|
18R RT104,118 ARL | — | |
| 17700-36190 note |
Cleaner Assy, Air
1977-01 → 1979-05
ended
|
18R RT104,114,118 | — | |
| 17700-36200 note |
Cleaner Assy, Air
1977-01 → 1979-05
ended
|
18R RT104,114,118 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-06 → 1977-09
ended
|
16R,18R# RT102,104,114,118 | — | |
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1977-09 → 1979-05
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 90175-06026 |
Nut, Wing(FOR AIR CLEANER)
1977-01 → 1977-06
ended
|
16R,18R# RT102,104,114,118 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1977-01 → 1977-09
ended
|
12R# RT100,116 | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1973-08 → 1975-09
ended
|
12R,16R,18R RT10#,11# | — | |
| 94271-00600 |
Nut, Wing(FOR AIR CLEANER)
1975-09 → 1977-01
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 17700B — Washer, Seal(FOR AIR CLEANER) | ||||
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1973-08 → 1975-09
ended
|
12R,16R,18R RT10#,11# | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1975-09 → 1977-01
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 90210-06023 |
Washer, Seal(FOR AIR CLEANER)
1977-01 → 1977-09
ended
|
12R# RT100,116 | — | |
| 90210-09026 |
Washer, Seal(FOR AIR CLEANER)
1977-01 → 1977-06
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17700C — Plate, Air Cleaner Caution (FOR ENGINE MODEL) | ||||
| 90917-07052 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1973-08 → 1974-04
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 90917-07053 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1973-08 → 1974-04
ended
|
12R RT100,116 | — | |
| 90917-07053 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1974-04 → 1975-09
ended
|
12R,16R,18R RT10#,11# | — | |
| 90917-07053 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1975-09 → 1976-07
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 90917-07053 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1976-07 → 1978-08
ended
|
12R# RT100,110,116 | — | |
| 90917-07070 |
Plate, Air Cleaner Caution (FOR ENGINE MODEL)
1976-07 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06142 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1973-08 → 1978-08
ended
|
12R# RT100,110,116 | — | |
| 90116-06143 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1974-04 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 90116-06143 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1975-09 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 90116-06222 note |
Bolt, Stud(FOR AIR CLEANER SETTING)
1973-08 → 1974-04
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-31030 note |
Cap Sub-assy, Air Cleaner
1973-08 → 1975-11
ended
|
12R RT100,110,116 | — | |
| 17705-31031 note |
Cap Sub-assy, Air Cleaner
1973-08 → 1975-12
ended
|
12R RT100,116 | — | |
| 17705-31031 |
Cap Sub-assy, Air Cleaner
1975-12 → 1977-09
ended
|
12R# RT100,110,116 | — | |
| 17705-31032 |
Cap Sub-assy, Air Cleaner
1977-09 → 1978-08
ended
|
12R# RT100,116 | — | |
| 17705-34070 |
Cap Sub-assy, Air Cleaner
1973-08 → 1974-04
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17705-34071 |
Cap Sub-assy, Air Cleaner
1974-04 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17705-34071 |
Cap Sub-assy, Air Cleaner
1975-09 → 1975-12
ended
|
16R,18R RT102,104,114 SA | — | |
| 17705-34141 |
Cap Sub-assy, Air Cleaner
1977-04 → 1978-08
ended
|
18RC RT104,118 | — | |
| 17705-34160 |
Cap Sub-assy, Air Cleaner
1977-01 → 1977-04
ended
|
18RC RT104,118 | — | |
| 17705-34160 |
Cap Sub-assy, Air Cleaner
1975-09 → 1975-12
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17705-34160 |
Cap Sub-assy, Air Cleaner
1975-12 → 1977-01
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17705-34190 note |
Cap Sub-assy, Air Cleaner
1977-04 → 1979-05
ended
|
18R RT104,118 ARL | — | |
| 17705-34190 |
Cap Sub-assy, Air Cleaner
1977-01 → 1979-05
ended
|
16R,18R RT102,104,114,118 | — | |
| 17706 — Inlet Sub-assy, Air Cleaner, NO.2 | ||||
| 17895-34010 |
Inlet Sub-assy, Air Cleaner, NO.2
1973-08 → 1975-09
ended
|
16R RT102,112,117 EUR,GEN | — | |
| 17895-34010 |
Inlet Sub-assy, Air Cleaner, NO.2
1975-09 → 1977-01
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17895-34010 |
Inlet Sub-assy, Air Cleaner, NO.2
1977-01 → 1977-04
ended
|
18RC RT104,118 | — | |
| 17895-34011 note |
Inlet Sub-assy, Air Cleaner, NO.2
1977-01 → 1979-05
ended
|
18R RT104,114,118 ARL,EUR,GEN | — | |
| 17895-34060 |
Inlet Sub-assy, Air Cleaner, NO.2
1977-04 → 1979-05
ended
|
18RC RT104,118 | — | |
| 17784 — Screen, Air Cleaner | ||||
| 17784-31010 |
Screen, Air Cleaner
1975-09 → 1975-12
ended
|
12R# RT100,110,116 | — | |
| 17784-31010 |
Screen, Air Cleaner
1975-12 → 1979-05
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 17784-31010 |
Screen, Air Cleaner
1975-09 → 1975-12
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17784-31010 |
Screen, Air Cleaner
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,117,118 ARL,EUR,GEN | — | |
| 17784-31010 |
Screen, Air Cleaner
1973-08 → 1975-09
ended
|
12R RT100,110,116 | — | |
| 17789 — Cap, Air Cleaner Screen | ||||
| 17789-31010 |
Cap, Air Cleaner Screen
1973-08 → 1975-09
ended
|
12R RT100,110,116 | — | |
| 17789-31010 |
Cap, Air Cleaner Screen
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,117,118 ARL,EUR,GEN | — | |
| 17789-31010 |
Cap, Air Cleaner Screen
1975-09 → 1975-12
ended
|
12R# RT100,110,116 | — | |
| 17789-31010 |
Cap, Air Cleaner Screen
1975-09 → 1975-12
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17789-31010 |
Cap, Air Cleaner Screen
1975-12 → 1976-12
ended
|
12R#,16R,18R# RT10#,11# | — | |
| 17789-31010 |
Cap, Air Cleaner Screen
1976-12 → 1978-08
ended
|
12R# RT100,116 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-25010 |
Element Sub-assy, Air Cleaner Filter
1976-08 → 1978-08
ended
|
12R RT100,116 | — | |
| 17801-31010 |
Element Sub-assy, Air Cleaner Filter
1976-08 → 1978-08
ended
|
12RM RT100,110,116 | — | |
| 17801-31010 |
Element Sub-assy, Air Cleaner Filter
1973-08 → 1976-08
ended
|
12R# RT100,110,116 | — | |
| 17801-33030 |
Element Sub-assy, Air Cleaner Filter
1975-09 → 1977-08
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17801-33030 |
Element Sub-assy, Air Cleaner Filter
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17801-34060 |
Element Sub-assy, Air Cleaner Filter
1977-08 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-21010 note |
Gasket, Filter Element
1973-08 → 1975-11
ended
|
12R RT100,110,116 | — | |
| 17841-31020 |
Gasket, Filter Element
1973-08 → 1978-08
ended
|
12R# RT100,110,116 | — | |
| 17841-33011 |
Gasket, Filter Element
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17841-33011 |
Gasket, Filter Element
1975-09 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-31020 |
Gasket, Air Cleaner Cap
1973-08 → 1978-08
ended
|
12R# RT100,110,116 | — | |
| 17845-33010 |
Gasket, Air Cleaner Cap
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 17845-33010 |
Gasket, Air Cleaner Cap
1975-09 → 1976-07
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17845-33011 |
Gasket, Air Cleaner Cap
1976-07 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 90430-63187 |
Gasket, Air Cleaner TO Carburetor
1973-08 → 1978-08
ended
|
12R# RT100,110,116 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1973-08 → 1975-09
ended
|
16R,18R RT102,104,112,114,117,118 | — | |
| 90430-72114 |
Gasket, Air Cleaner TO Carburetor
1975-09 → 1979-05
ended
|
16R,18R# RT102,104,114,118 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-25012 note |
Hose, Air Cleaner, NO.1
1973-09 → 1975-09
ended
|
16R RT102,112,117 EUR,GEN | — | |
| 17881-34030 note |
Hose, Air Cleaner, NO.1
1973-08 → 1973-09
ended
|
16R RT102,112,117 GEN | — | |
| 17881-34070 note |
Hose, Air Cleaner, NO.1
1975-09 → 1975-11
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17881-34071 note |
Hose, Air Cleaner, NO.1
1975-11 → 1977-01
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17881-34071 note |
Hose, Air Cleaner, NO.1
1977-01 → 1977-04
ended
|
18RC RT104,118 | — | |
| 17881-34110 note |
Hose, Air Cleaner, NO.1
1977-01 → 1977-04
ended
|
18R RT104,114,118 ARL,EUR,GEN | — | |
| 17881-34110 note |
Hose, Air Cleaner, NO.1
1977-04 → 1979-05
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-47036 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1973-08 → 1977-01
ended
|
16R,18R# RT102,104,112,114,117,118 ARL,EUR,GEN | — | |
| 90460-47036 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1977-01 → 1979-05
ended
|
18R# RT104,114,118 ARL,EUR,GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
