Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 9 illustrations

Illustrations

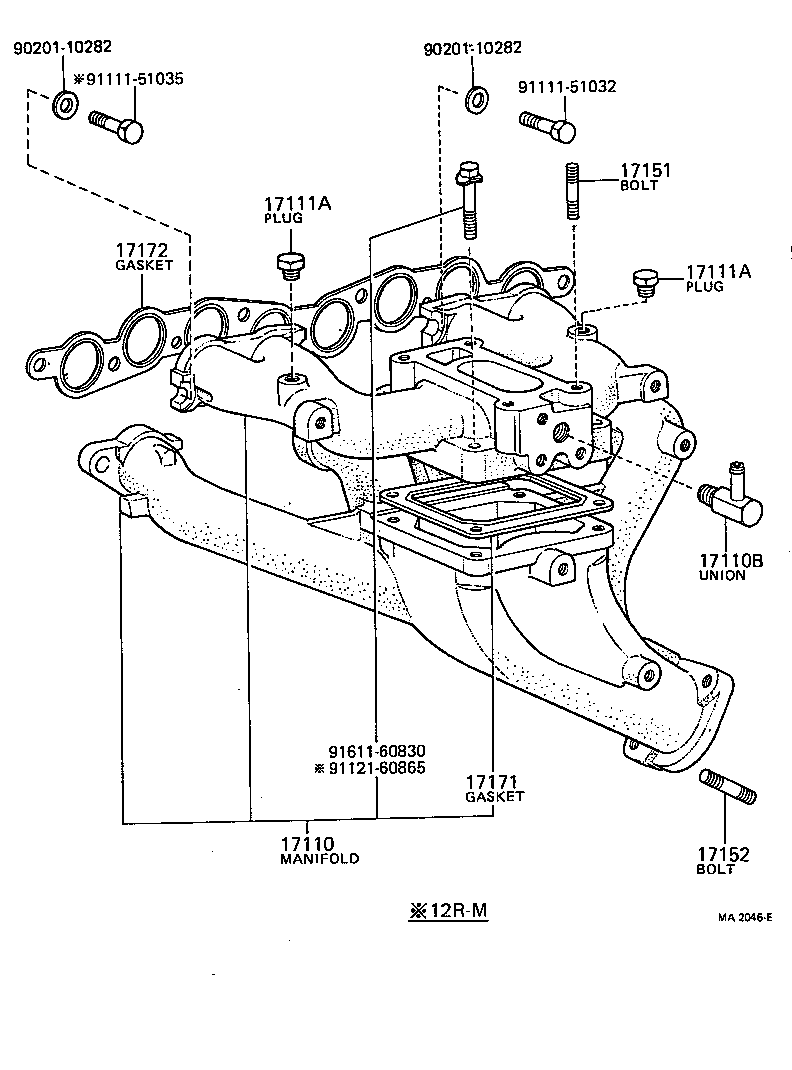

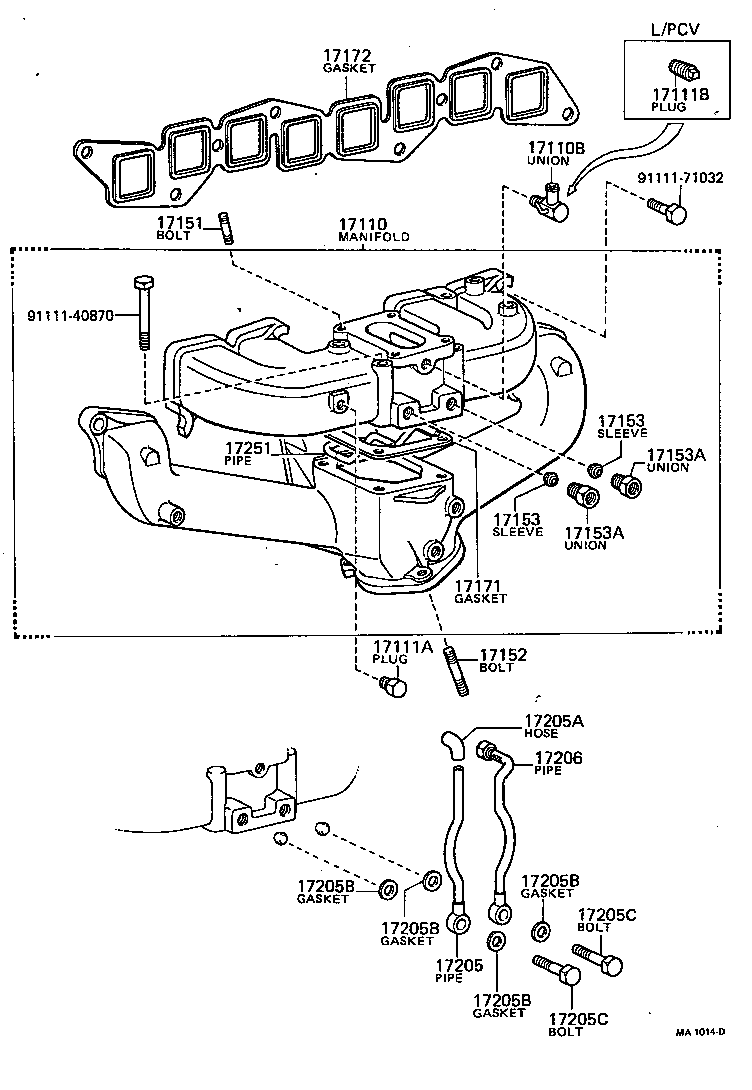

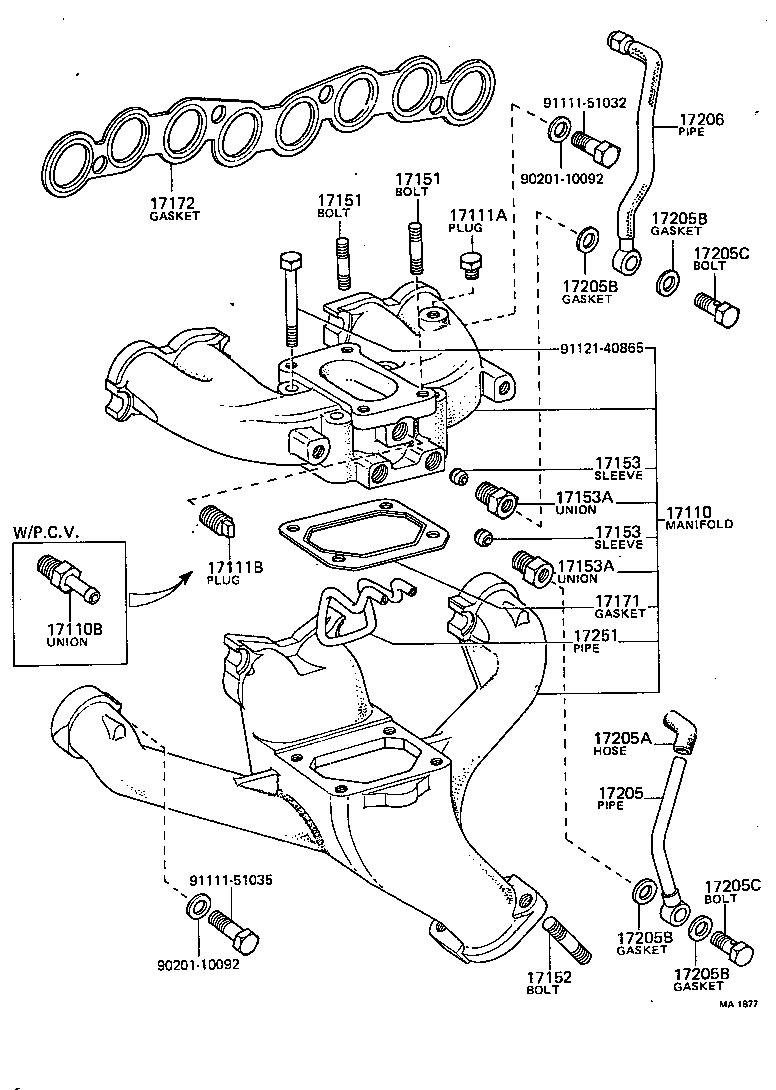

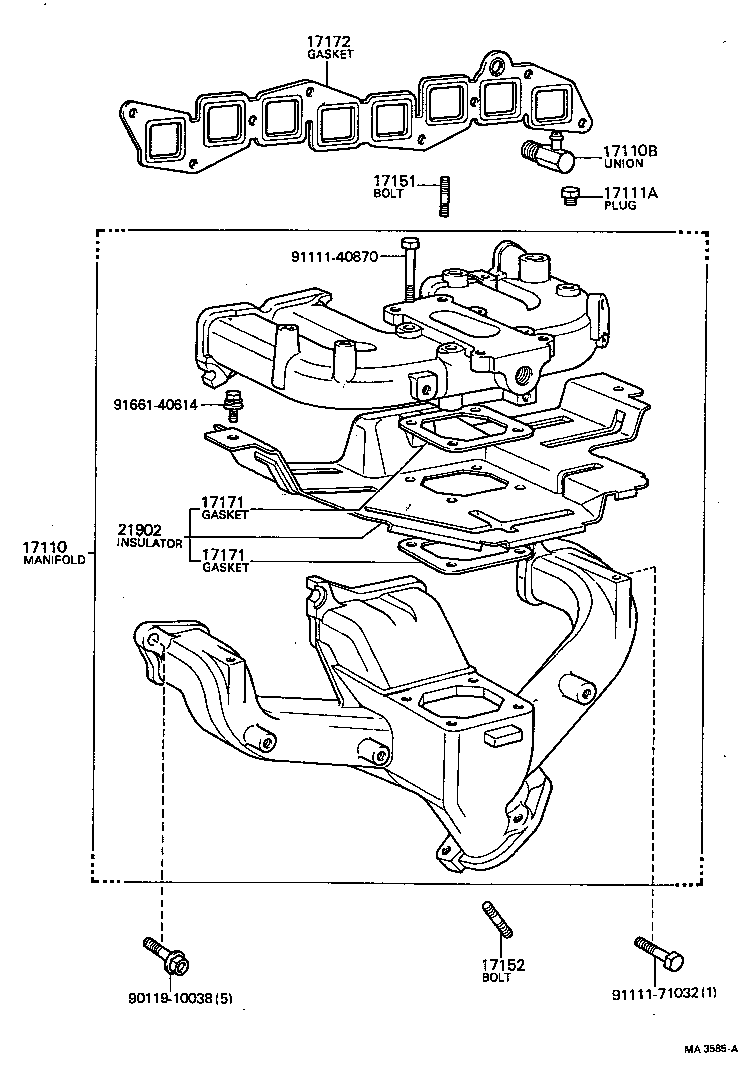

Figure MA1703C MA1703C 1973-08 → 1975-02 Figure MA1877 MA1877 1975-02 → 1975-11 Figure MA2046E MA2046E 1975-11 → 1978-08 Figure MA1014D MA1014D 1973-08 → 1977-01 Figure MA1014D MA1014D 1977-01 → 1977-04 Figure MA1014D MA1014D 1977-01 → 1979-05 Figure MA1857 MA1857 1977-01 → 1979-01 Figure MA1857 MA1857 1977-04 → 1979-01 Figure MA3585A MA3585A 1979-01 → 1979-05

Part groups

PNCDescription
17110 Manifold Assy
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111A Plug, NO.1
17111B Plug, NO.2
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17153 Sleeve, Ball(FOR AUTOMATIC CHOKE STOVE PIPE)
17153A Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17205 Pipe, Automatic Choke Stove Inlet
17205A Hose(FOR AUTOMATIC CHOKE STOVE PIPE)
17205B Gasket(FOR AUTOMATIC CHOKE STOVE PIPE)
17205C Bolt, Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17206 Pipe, Automatic Choke Stove Outlet
17251 Pipe,Automatic Choke Stove
21902 Insulator Sub-assy, Carburetor Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
