Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

7 part groups · 8 illustrations

Illustrations

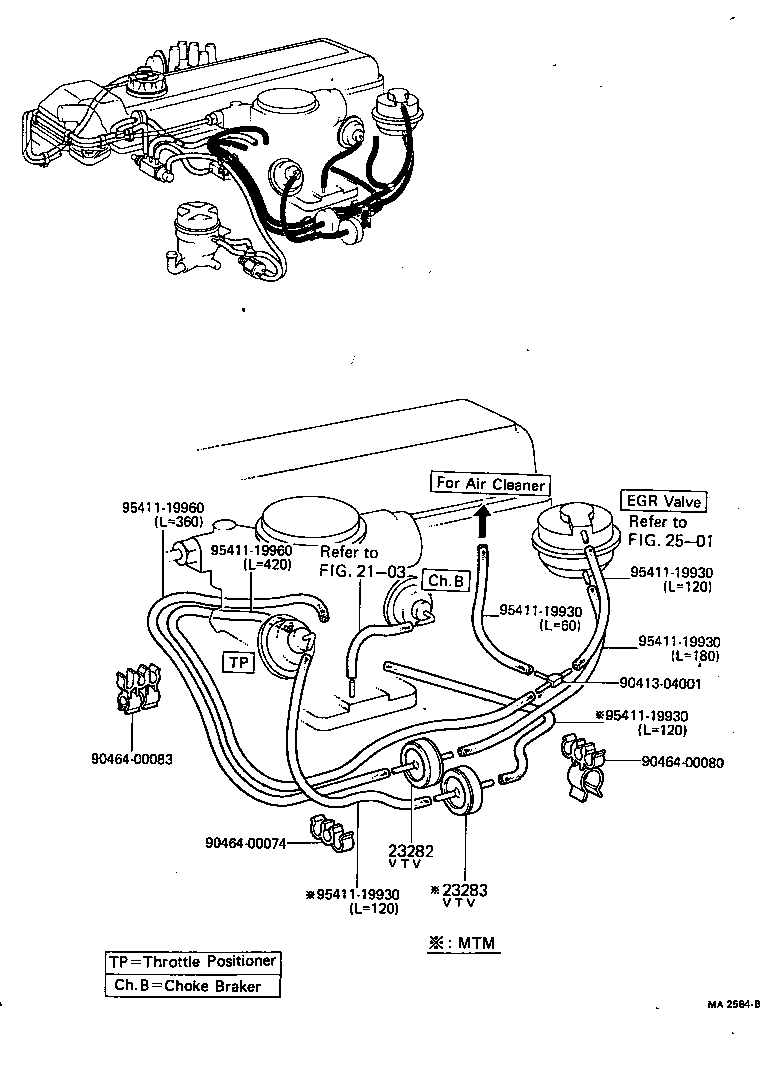

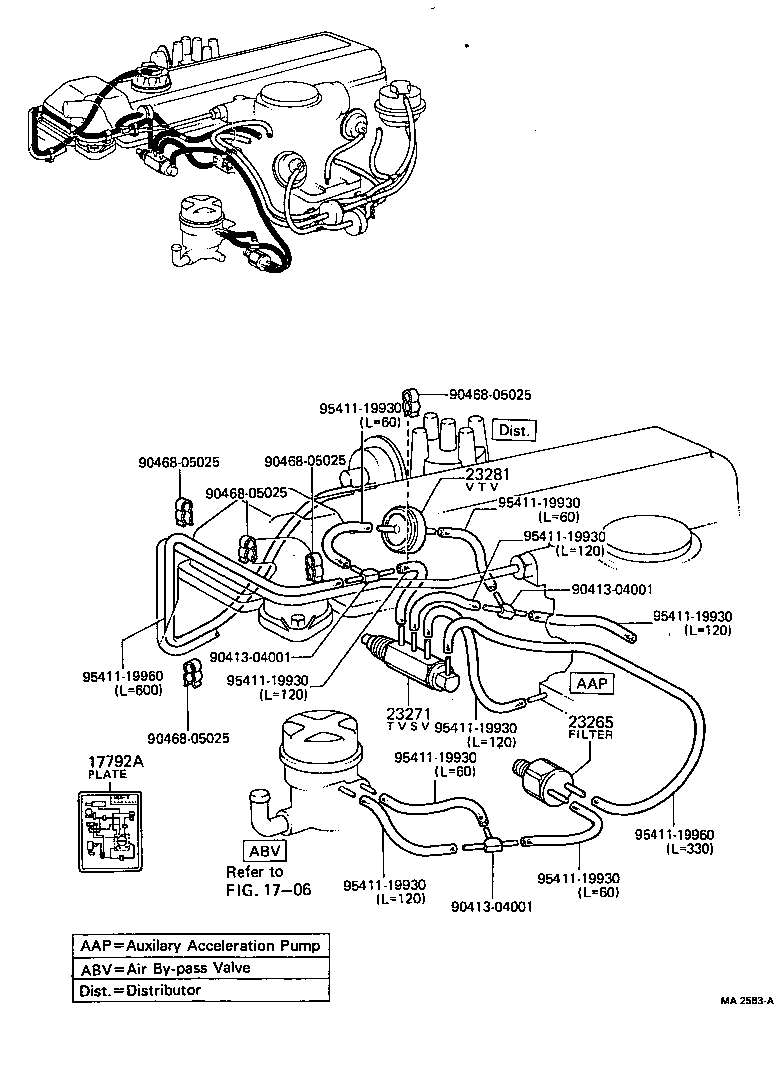

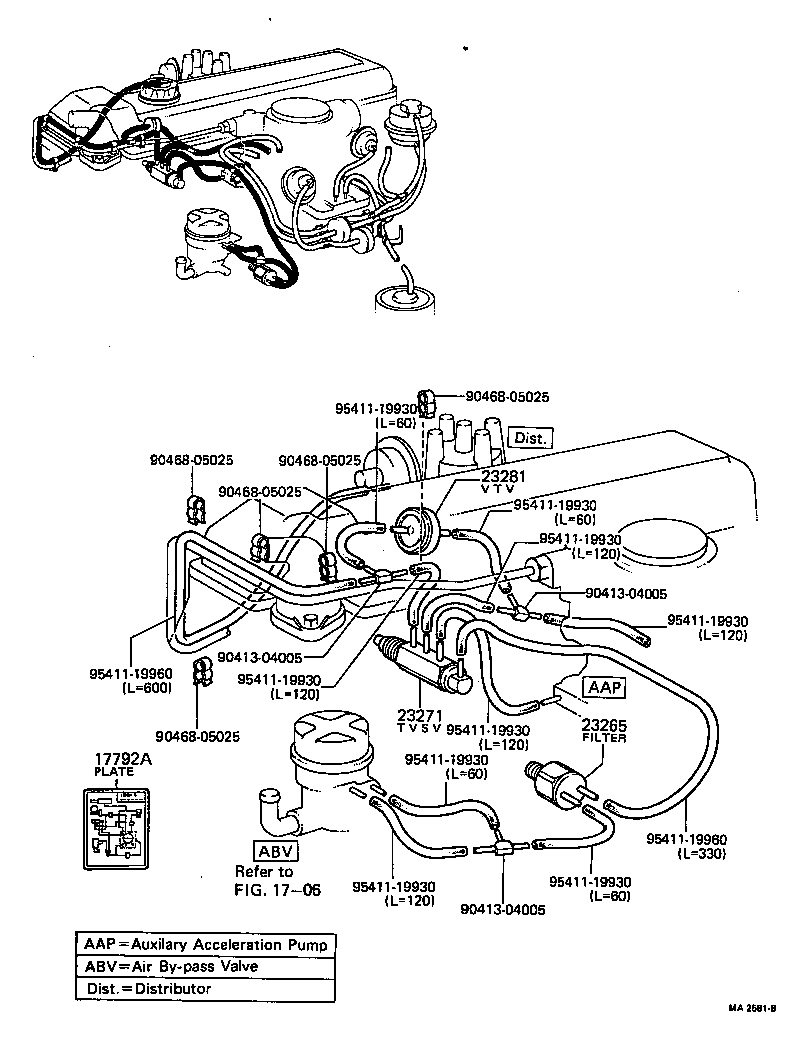

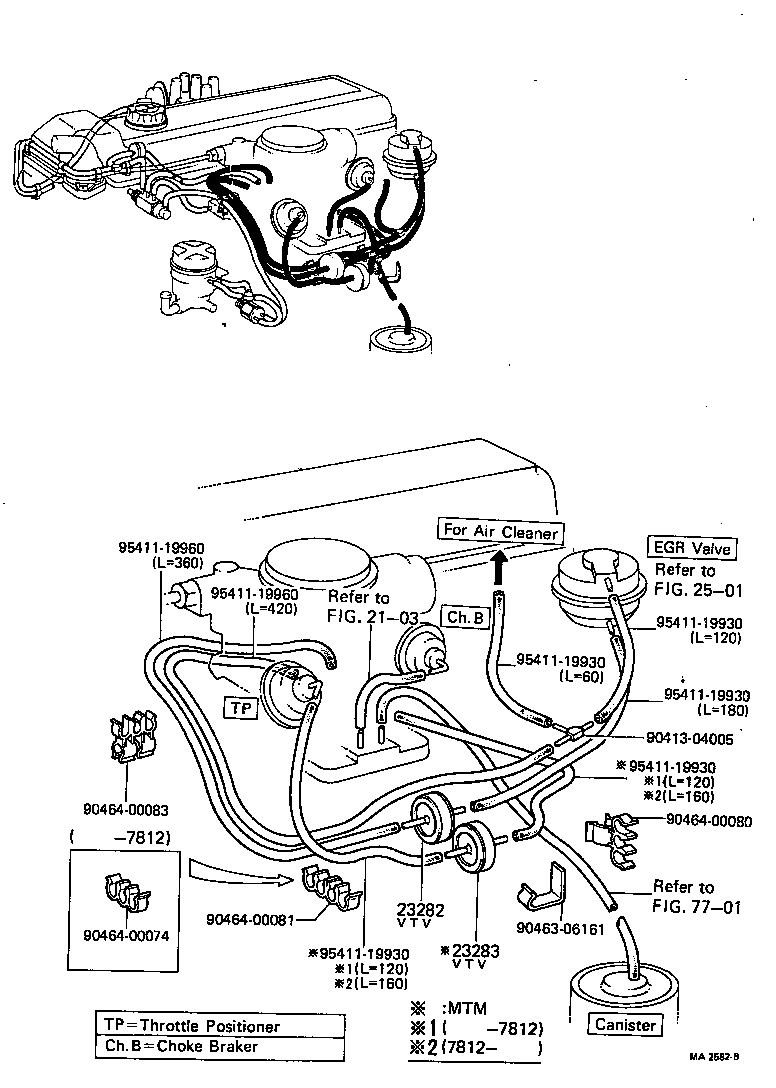

Figure MA9501 MA9501 1973-08 → 1979-05 Figure MA2022A MA2022A 1975-09 → 1976-06 Figure MA2557A MA2557A 1976-04 → 1977-04 Figure MA2557A MA2557A 1976-06 → 1977-06 Figure MA2581B MA2581B 1977-04 → 1979-05 Figure MA2582B MA2582B 1977-04 → 1979-05 Figure MA2583A MA2583A 1977-06 → 1978-08 Figure MA2584B MA2584B 1977-06 → 1978-08

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17792A Plate, Engine Vacuum Hose Information
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
