Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

11 part groups · 4 illustrations

Illustrations

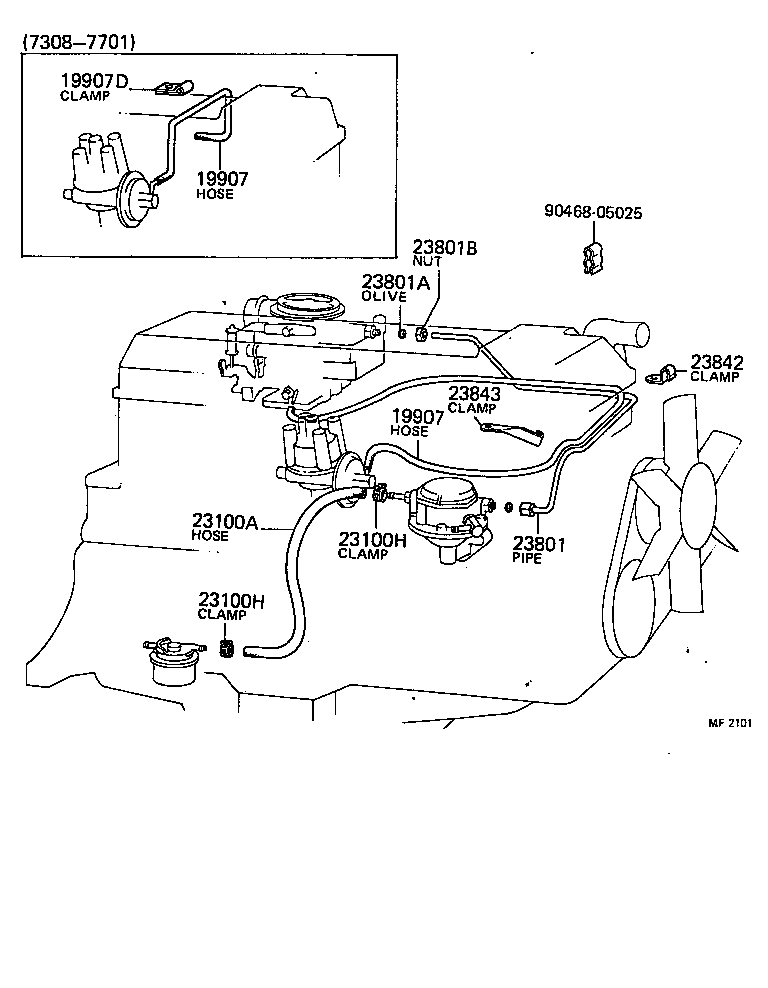

Figure MF0912B MF0912B 1973-08 → 1975-11 Figure MF1447C MF1447C 1975-11 → 1978-08 Figure MF1516 MF1516 1975-12 → 1978-08 Figure MF2101 MF2101 1973-08 → 1979-05

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
19907D Clamp, Distributor Vacuum Hose
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23843 Clamp, Fuel Pipe(HOSE), NO.3
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
