Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pump & Pipe

11 part groups · 2 illustrations

Illustrations

Figure MF0918

MF0918 1973-08 → 1978-08

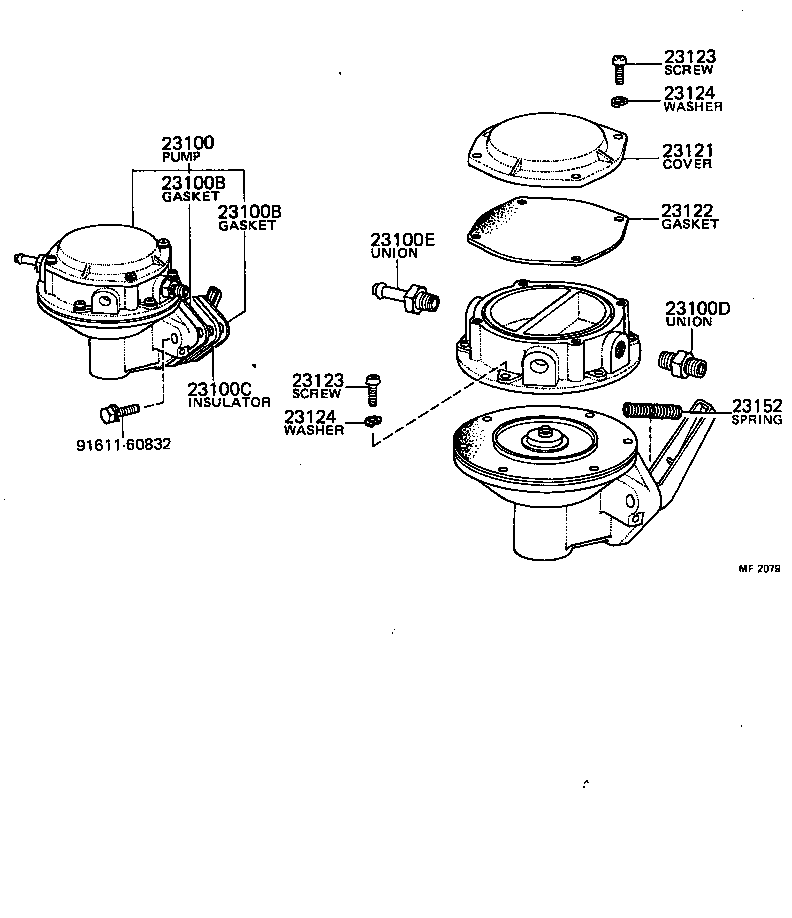

Figure MF2079

MF2079 1973-08 → 1979-05

Part groups

PNC	Description
23100	Pump Assy, Fuel
23100B	Gasket, Fuel Pump
23100C	Insulator, Fuel Pump
23100D	Union, Nipple(FOR FUEL OUTLET)
23100E	Union, Nipple(FOR FUEL INLET)
23115	Stopper, Union Nipple
23121	Cover, Fuel Pump
23122	Gasket, Fuel Pump Cover
23123	Screw, Cover Set, NO.1
23124	Washer, Cover Set, NO.2
23152	Spring, Rocker Arm

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
