Toyota Corona
1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe
Discontinued model
Data version 1979-05

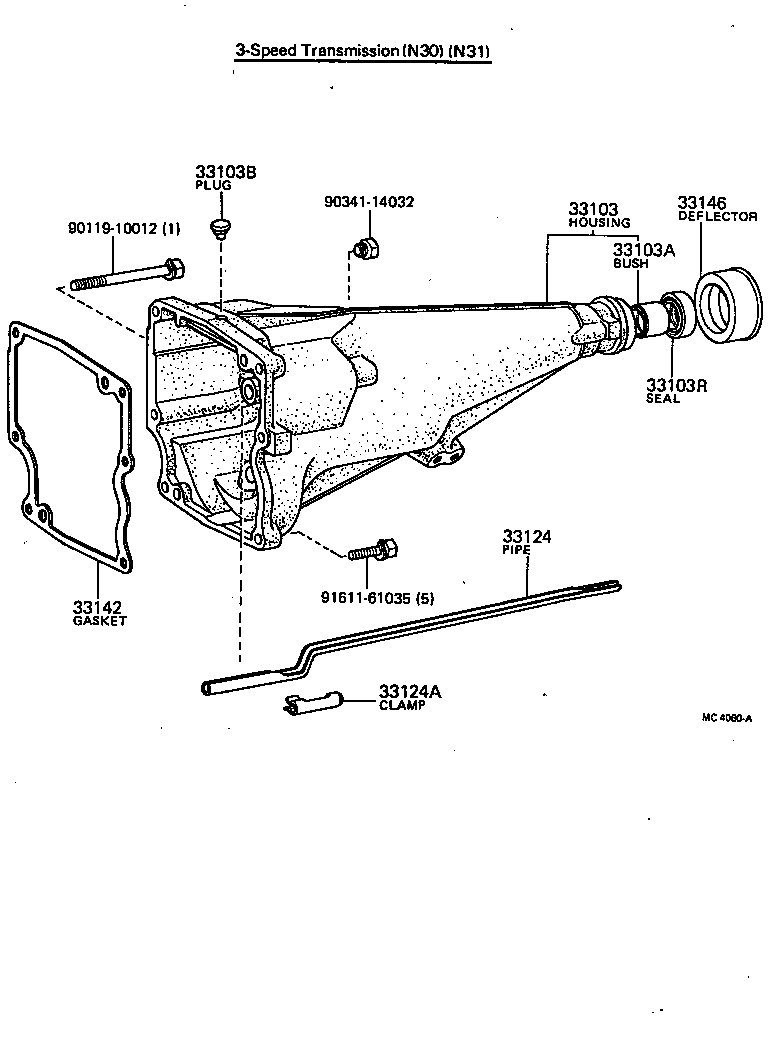

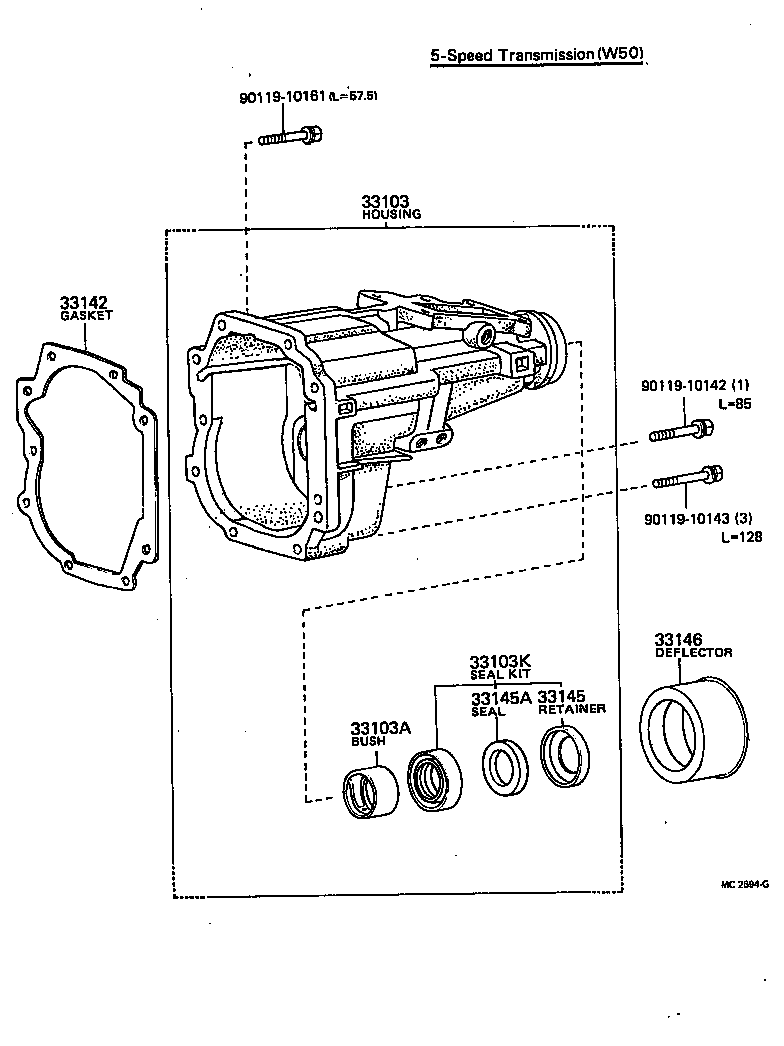

Extension Housing (MTM)
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103B | Plug, Breather(FOR TRANSMISSION EXTENSION HOUSING) |
| 33103C | Plug, NO.1(FOR EXTENSION HOUSING) |
| 33103F | Gasket(FOR EXTENSION HOUSING PLUG NO.1) |
| 33103K | Seal Kit, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33124 | Pipe, Oil Receiver(MTM) |
| 33124A | Clamp(FOR TRANSMISSION OIL RECEIVER PIPE) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33145 | Retainer, Extension Housing Dust Seal(MTM) |
| 33145A | Seal, Dust(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
