Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 3 illustrations

Illustrations

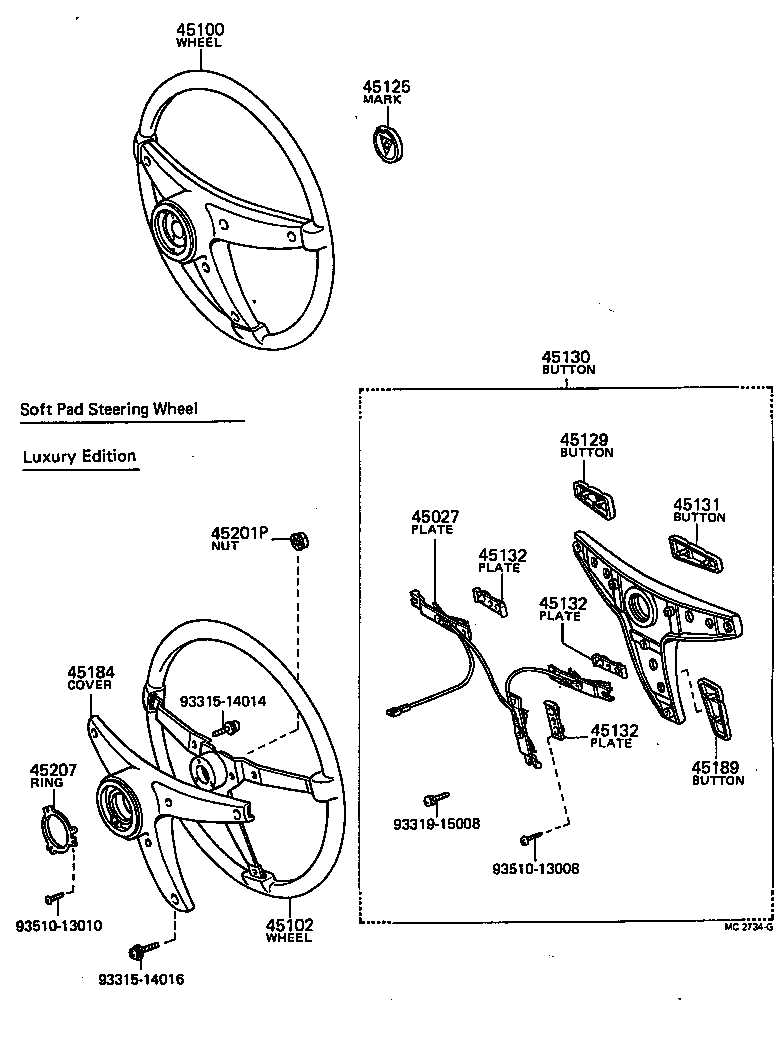

Figure MC2733D MC2733D 1973-08 → 1979-05 Figure MC2734G MC2734G 1973-08 → 1979-05 Figure MC2734G MC2734G 1977-05 → 1979-05

Part groups

PNCDescription
45027 Plate Sub-assy, Horn Button
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45132 Plate, Horn Button Back
45184 Cover, Steering Wheel Boss, Lower
45189 Button, Horn, NO.3
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
