Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

27 part groups · 3 illustrations

Illustrations

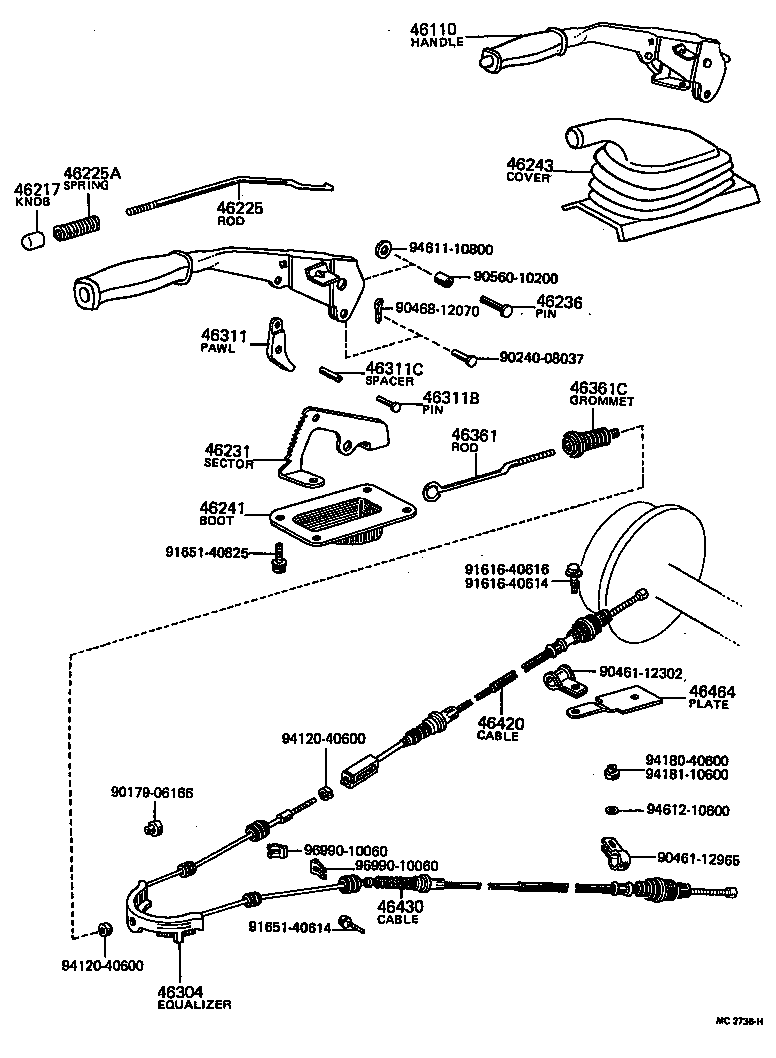

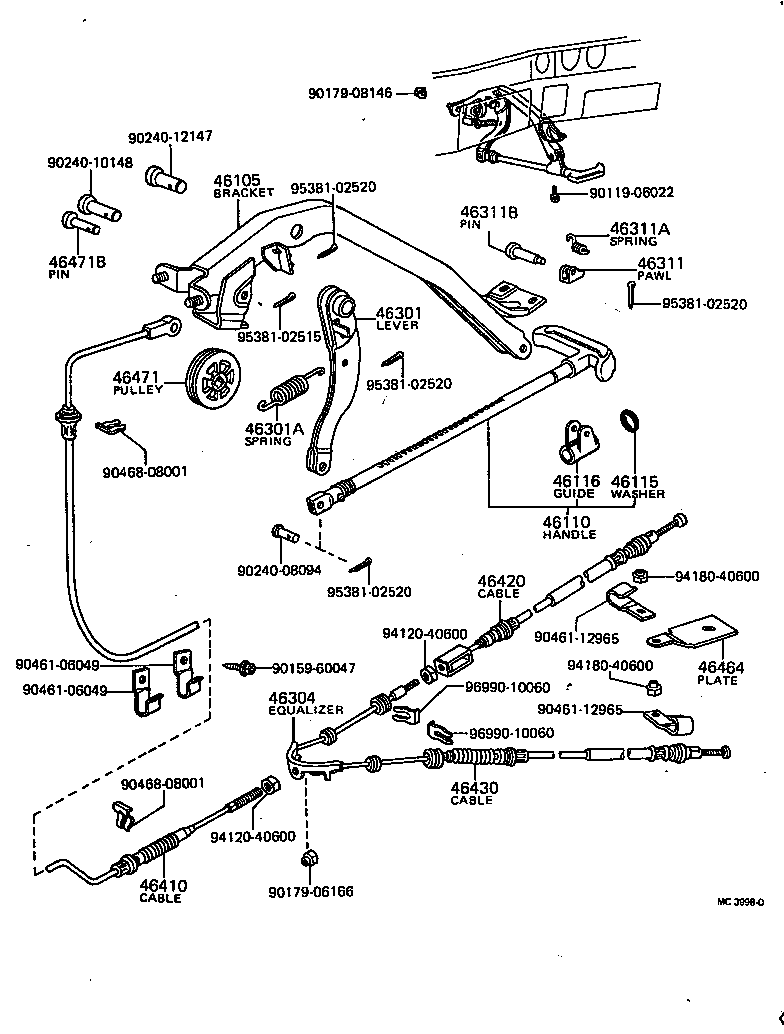

Figure MC2737F MC2737F 1973-08 → 1978-08 Figure MC3998D MC3998D 1975-04 → 1978-08 Figure MC2736H MC2736H 1973-08 → 1979-05

Part groups

PNCDescription
46105 Bracket Sub-assy, Parking Brake Planger OR Pedal
46110 Handle Assy, Parking Brake Control
46115 Washer, Parking Brake Plunger
46116 Guide, Parking Brake Plunger
46217 Knob, Parking Brake Release Rod
46225 Rod, Parking Brake Pawl Release
46225A Spring, Compression(FOR PARKING BRAKE PAWL ROD)
46231 Sector, Parking Brake Lever
46236 Pin, Lever Pivot
46241 Boot, Parking Brake Lever
46243 Cover, Parking Brake Lever
46301 Lever Sub-assy, Parking Brake Intermediate
46301A Spring, Tension(FOR INTERMEDIATE LEVER)
46304 Equalizer Sub-assy, Parking Brake
46311 Pawl, Parking Brake
46311A Spring(FOR PARKING BRAKE PAWL)
46311B Pin, Parking Brake Pawl Pivot
46311C Spacer(FOR PARKING BRAKE PAWL PIVOT)
46361 Rod, Parking Brake Pull
46361C Grommet(FOR PARKING BRAKE PULL ROD)
46410 Cable Assy, Parking Brake, NO.1
46410B Grommet(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46430 Cable Assy, Parking Brake, NO.3
46464 Plate, Cable Clamp Support
46471 Pulley, Wire
46471B Pin, W/Hole(FOR WIRE PULLEY SET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
