Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

26 part groups · 10 illustrations

Illustrations

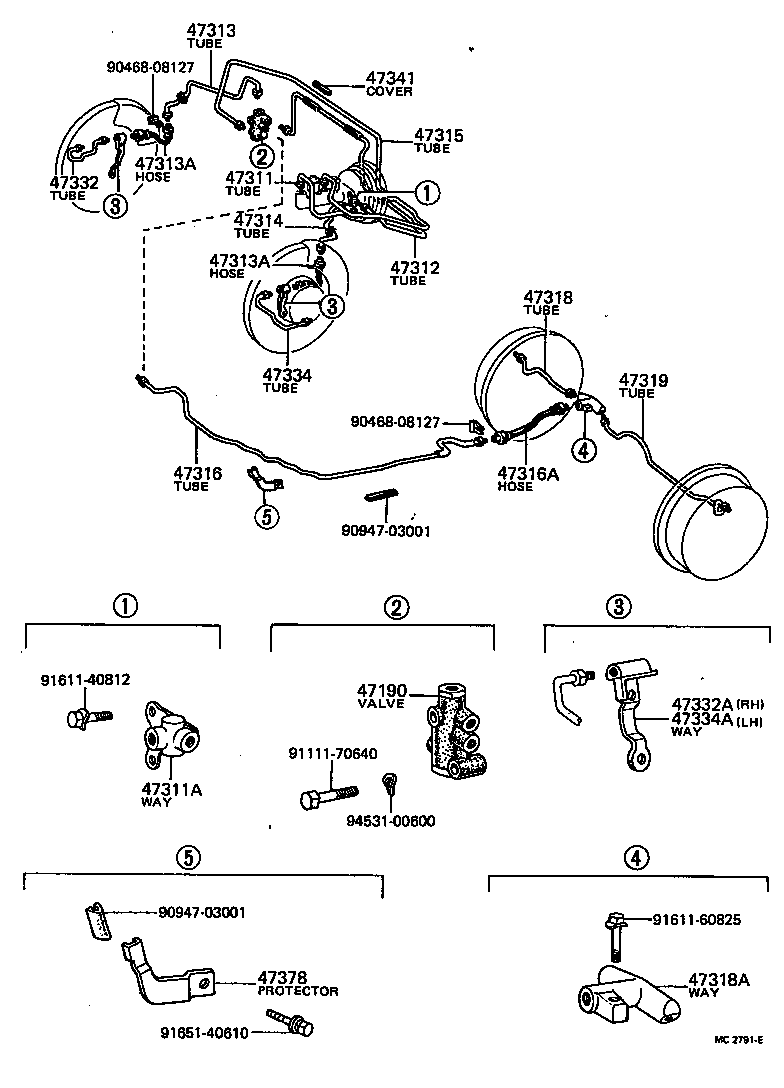

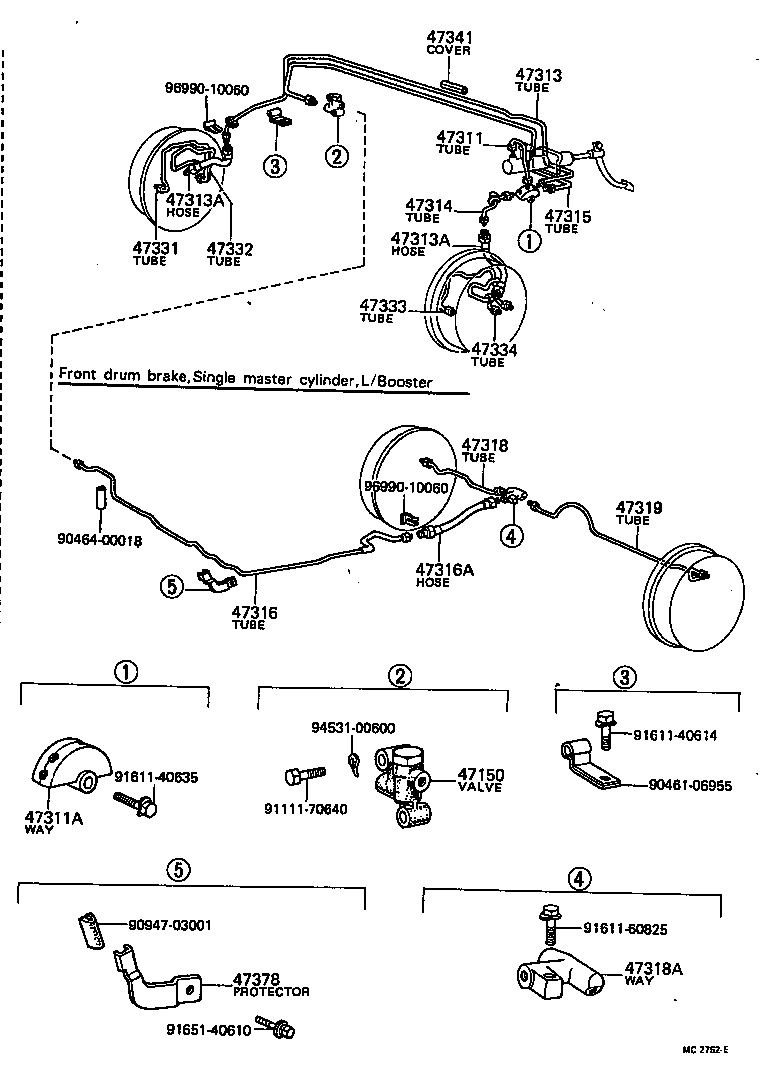

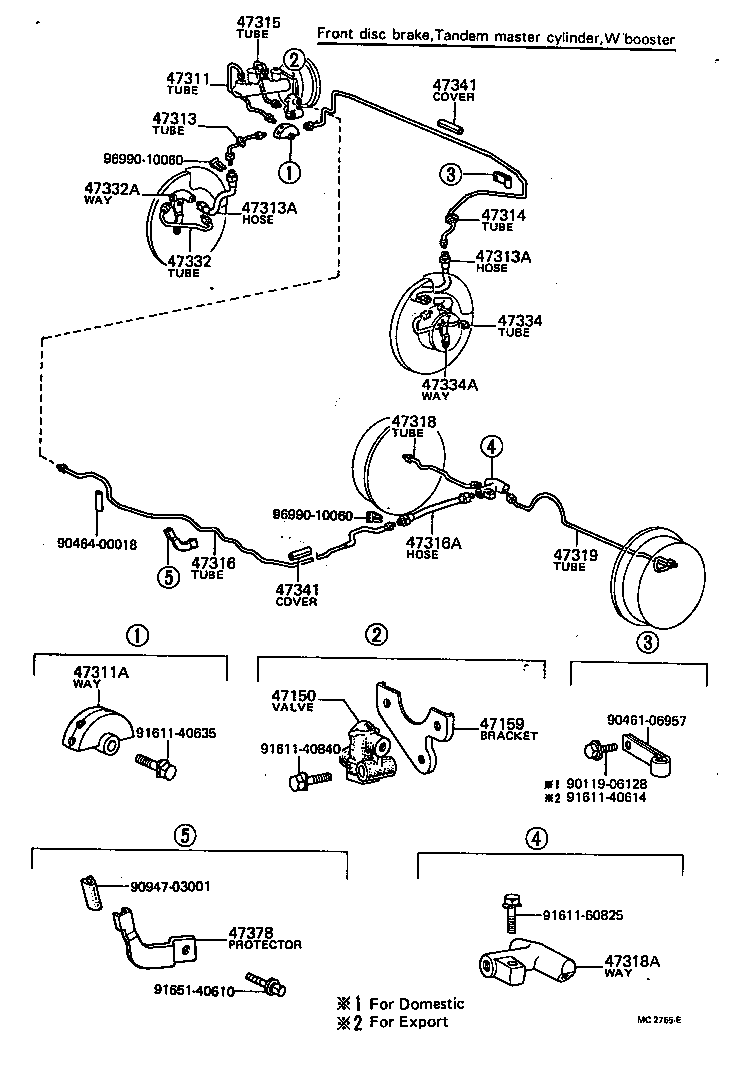

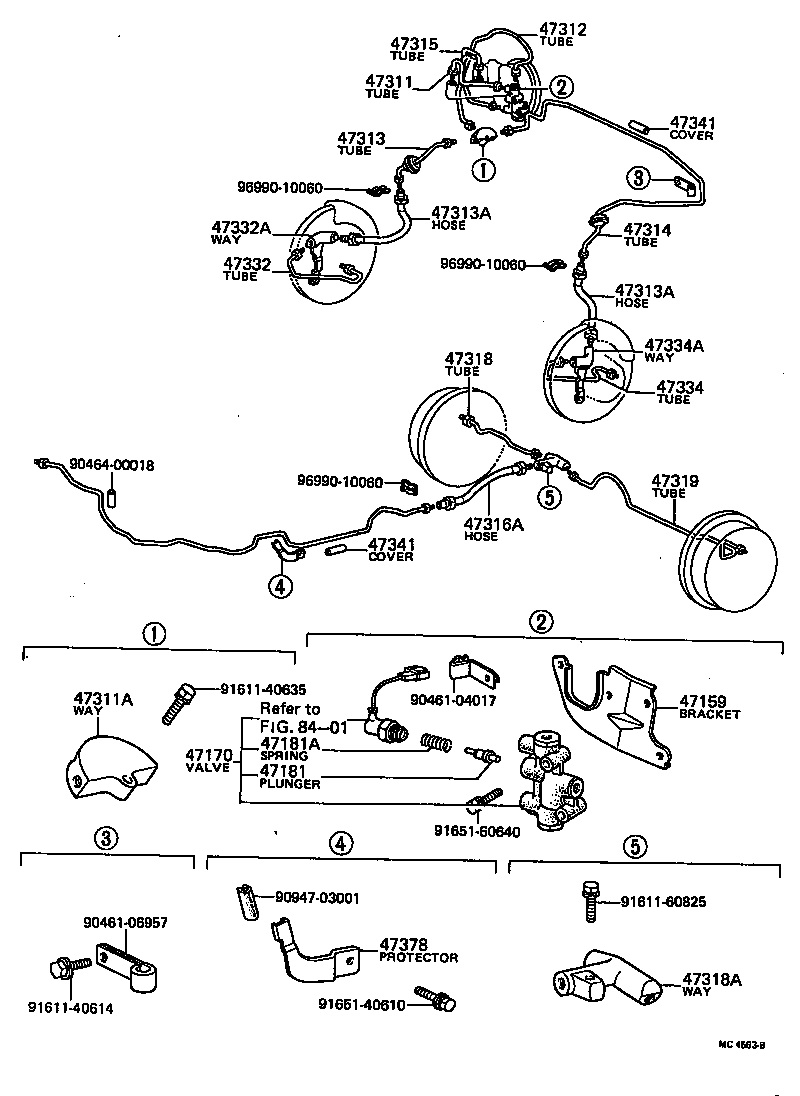

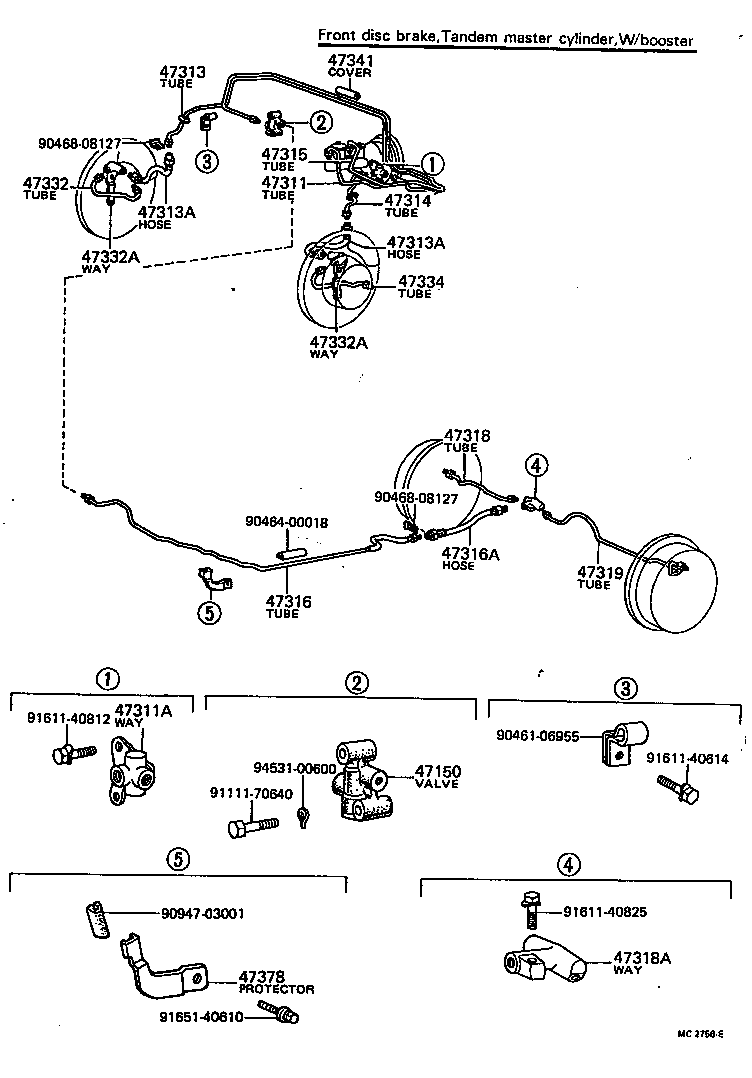

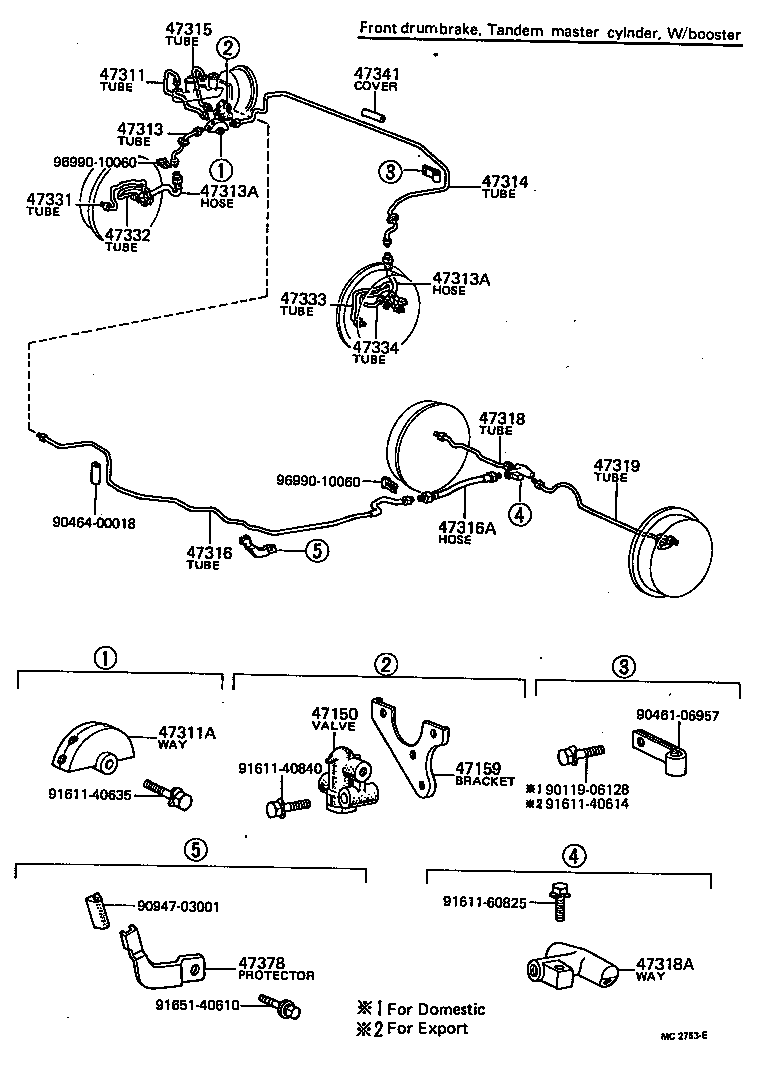

Figure MC2751E MC2751E 1973-08 → 1978-08 Figure MC2752E MC2752E 1973-08 → 1976-05 Figure MC2752E MC2752E 1976-05 → 1978-08 Figure MC2753E MC2753E 1973-08 → 1976-05 Figure MC2753E MC2753E 1976-05 → 1979-05 Figure MC2755E MC2755E 1973-08 → 1976-10 Figure MC2755E MC2755E 1976-10 → 1979-05 Figure MC4563B MC4563B 1976-10 → 1979-05 Figure MC2756E MC2756E 1973-08 → 1979-05 Figure MC2791E MC2791E 1973-08 → 1978-08

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47159 Bracket, Proportioning Valve
47170 Valve Assy, Brake Combination
47181 Plunger, Differential Switch
47181A Spring, Compression(FOR DIFFERENTIAL VALVE SWITCH)
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47332A Way(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47334A Way(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
47341 Cover, Tube
47378 Protector, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
