Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

6 part groups · 2 illustrations

Illustrations

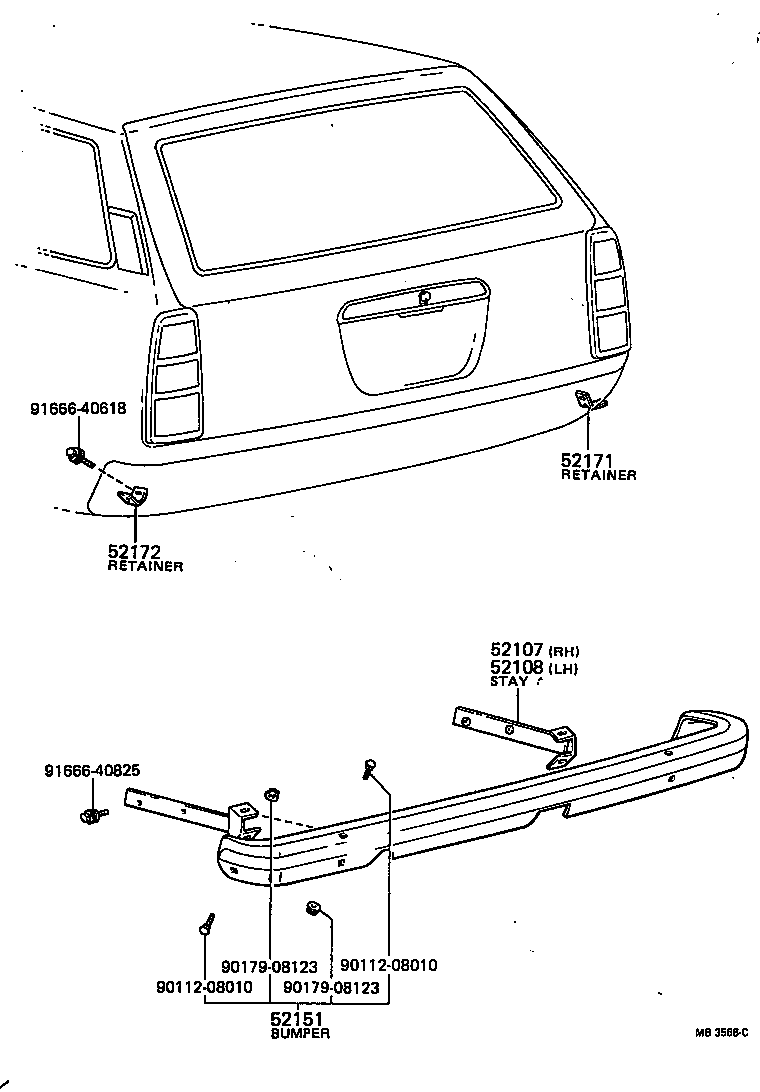

Figure MB3566F MB3566F 1973-08 → 1979-05 Figure MB3568C MB3568C 1973-08 → 1979-05

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
