Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

6 part groups · 2 illustrations

Illustrations

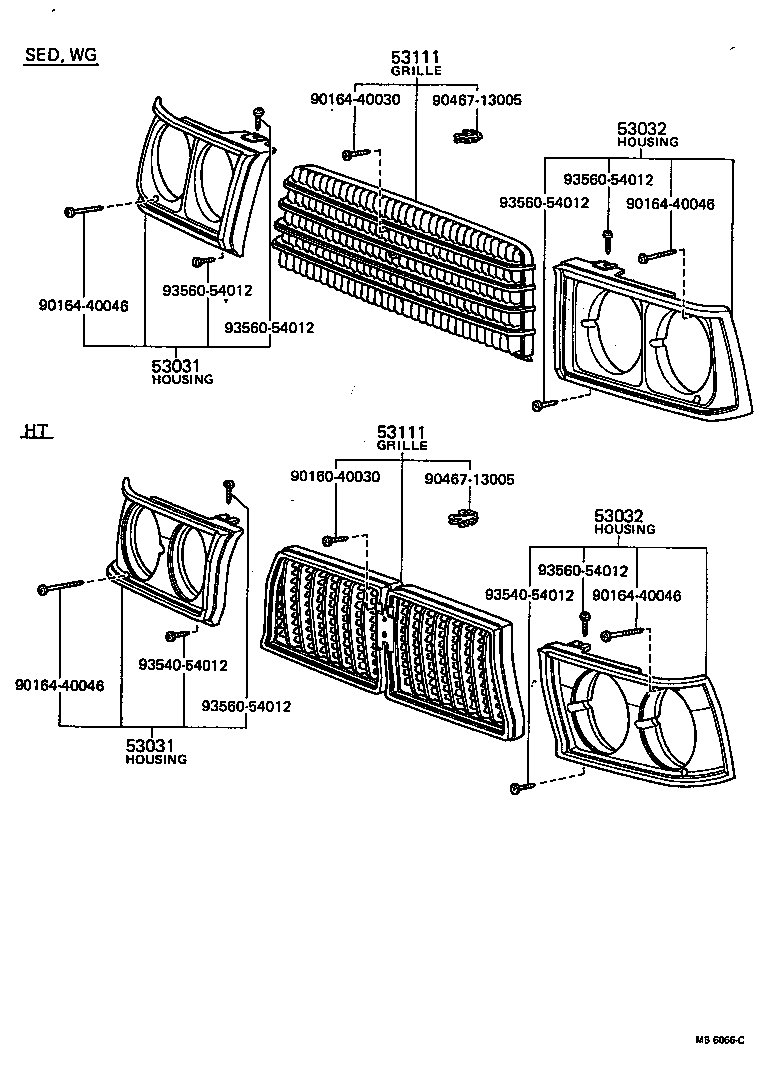

Figure MB6065A MB6065A 1973-08 → 1977-01 Figure MB6066C MB6066C 1977-01 → 1979-05

Part groups

PNCDescription
53031 Housing, Headlamp, RH
53032 Housing, Headlamp, LH
53111 Grille, Radiator
53111C Moulding, Radiator Grille, Upper
53111F Moulding, Radiator Grille, Center
53111G Moulding, Radiator Grille, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
