Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

8 part groups · 3 illustrations

Illustrations

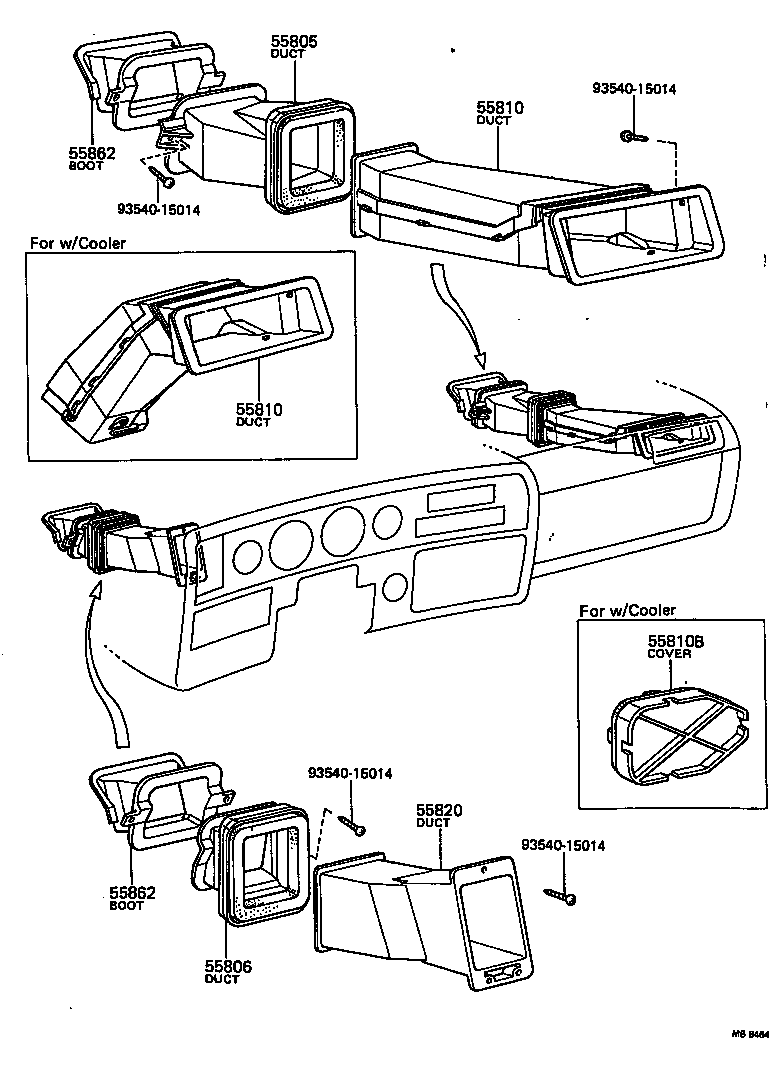

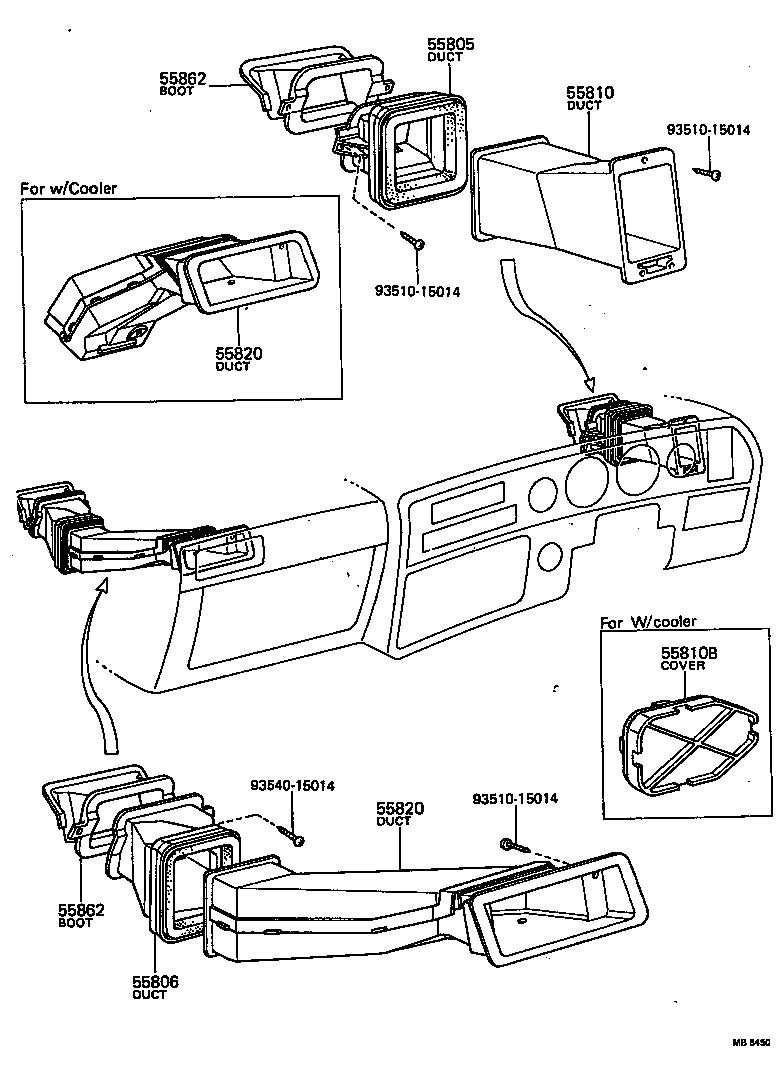

Figure MB5031 MB5031 1973-08 → 1977-01 Figure MB6450 MB6450 1977-01 → 1979-05 Figure MB6464 MB6464 1977-01 → 1979-05

Part groups

PNCDescription
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55810B Cover, Side Ventilator
55819A Spring, Tension(FOR SIDE VENTILATOR CONTROL ROD)
55820 Duct Assy, Side Ventilator, LH
55862 Boot, Side Ventilator
55887 Knob, Side Ventilator Butterfly Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
