Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05

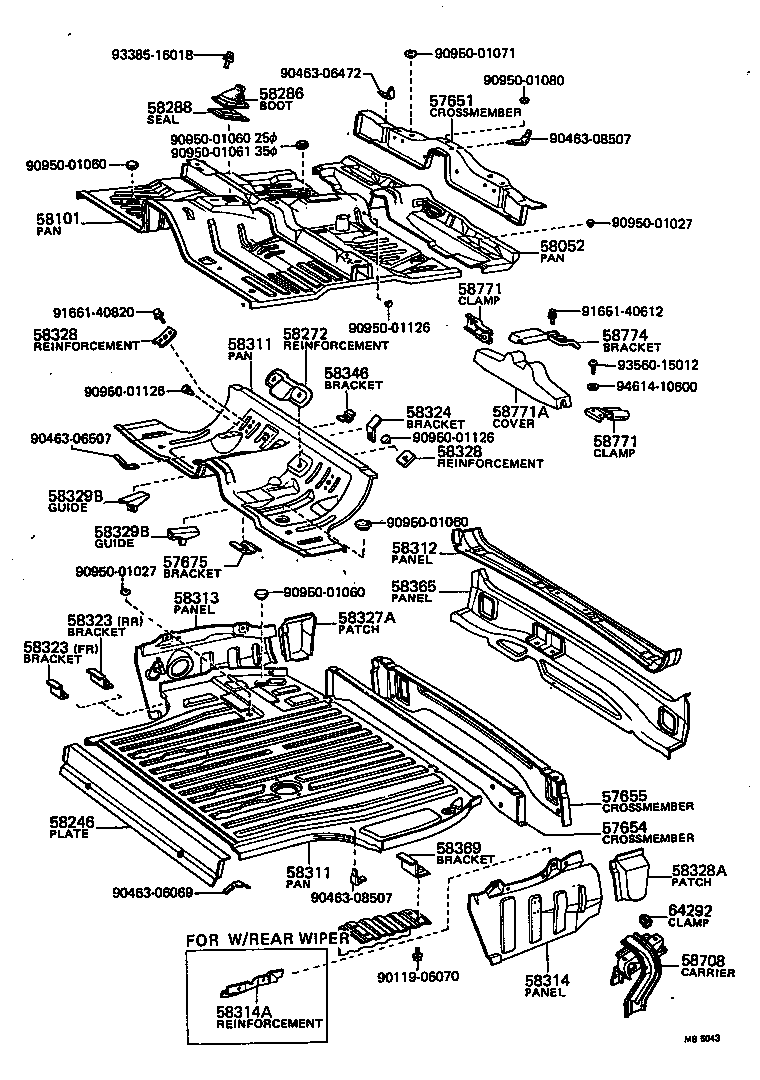

Floor Pan & Lower Back Panel

43 part groups · 2 illustrations

PNC	Description
57651	Crossmember, Rear Floor, Front
57652	Crossmember, Rear Floor, NO.2
57654	Member, Rear Floor Cross, NO.4
57655	Member, Rear Floor Cross, NO.5
57656	Reinforcement, Exhaust Pipe Hanger Support
57674	Bracket, Muffler Hanger Support, NO.3
57675	Bracket, Muffler Hanger Support, NO.1
57676	Bracket, Muffler Hanger Support, NO.2
57677	Bracket, Muffler Hanger Support, NO.4
58052	Pan Sub-assy, Center Floor
58101	Pan Sub-assy, Front Floor
58234	Retainer, Center Bearing
58246	Plate, Rear Floor Silencer
58272	Reinforcement, Belt Anchor TO Floor Pan
58286	Boot, Shift & Select Lever, NO.1
58288	Seal, Shift Lever Boot
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58312	Panel, Rear Body Floor, NO.1
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58314A	Reinforcement, Rear Floor Side
58323	Bracket Sub-assy, Inlet Tube Protector
58324	Bracket, Flexible Hose
58327A	Patch, Rear Floor Side, RH
58328	Reinforcement, Safety Belt Anchorage
58328A	Patch, Rear Floor Side, LH
58329A	Guide, Wire, NO.2
58329B	Guide, Wire, NO.3
58341	Cap, Rear Shock Absorber
58346	Bracket, Rear Floor Heat Insulator
58352	Reinforcement, Jack Clamp
58363	Bracket Sub-assy, Diff Carrier Bumper
58365	Panel, Rear Body Floor, Rear
58369	Bracket, Insulator Heat
58381	Deflector, Rear Bumper Stone
58708	Carrier Sub-assy, Jack
58709	Bracket Sub-assy, Jack Clamp
58771	Clamp, Jack, NO.1
58771A	Cover, Jack
58774	Bracket, Jack, NO.2
64292	Clamp, Jack Handle

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
