Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

13 part groups · 2 illustrations

Illustrations

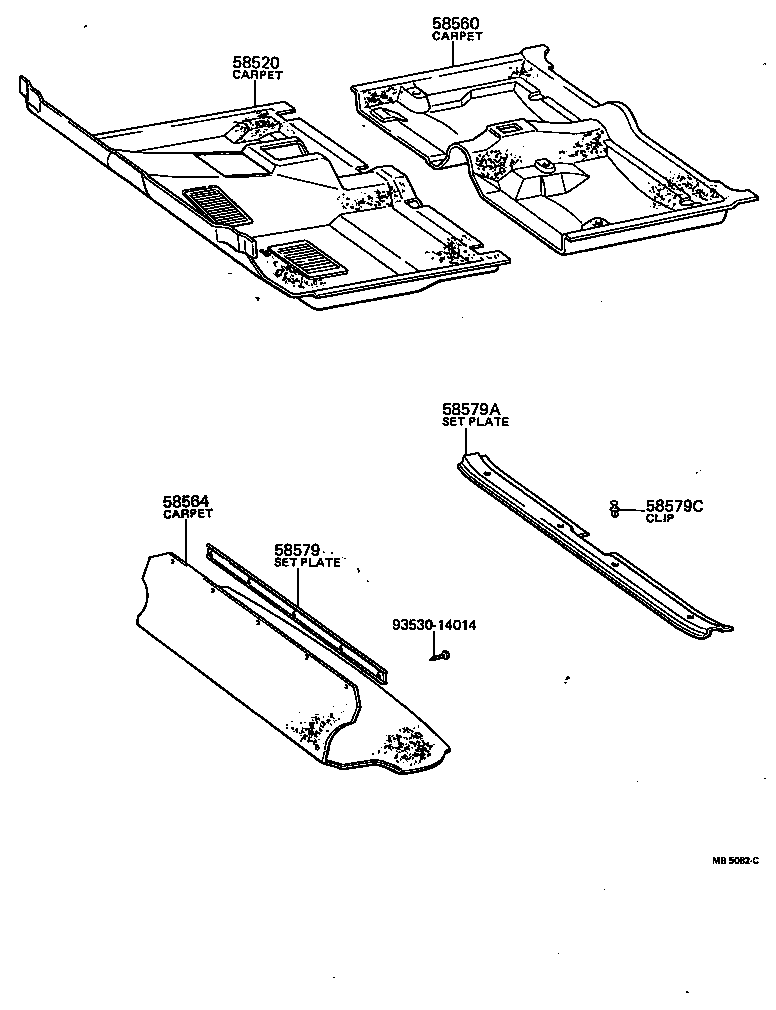

Figure MB4700 MB4700 1973-08 → 1975-09 Figure MB5082C MB5082C 1975-09 → 1979-05

Part groups

PNCDescription
58514 Carpet, Floor, Front Center
58520 Carpet Assy, Front Floor
58530 Carpet Assy, Floor, Front RH
58540 Carpet Assy, Floor, Front LH
58541 Hook, Male, NO.1(FOR CARPET)
58543 Hook, Male, NO.3(FOR CARPET)
58558 Carpet, Rear Seat Side, RH
58559 Carpet, Rear Seat Side, LH
58560 Carpet Assy, Floor, Rear
58564 Carpet, Rear Floor
58579 Set Plate, Rear Floor Carpet, NO.1
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
