Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dash Silencer Board & Floor Silencer Pad

11 part groups · 2 illustrations

Illustrations

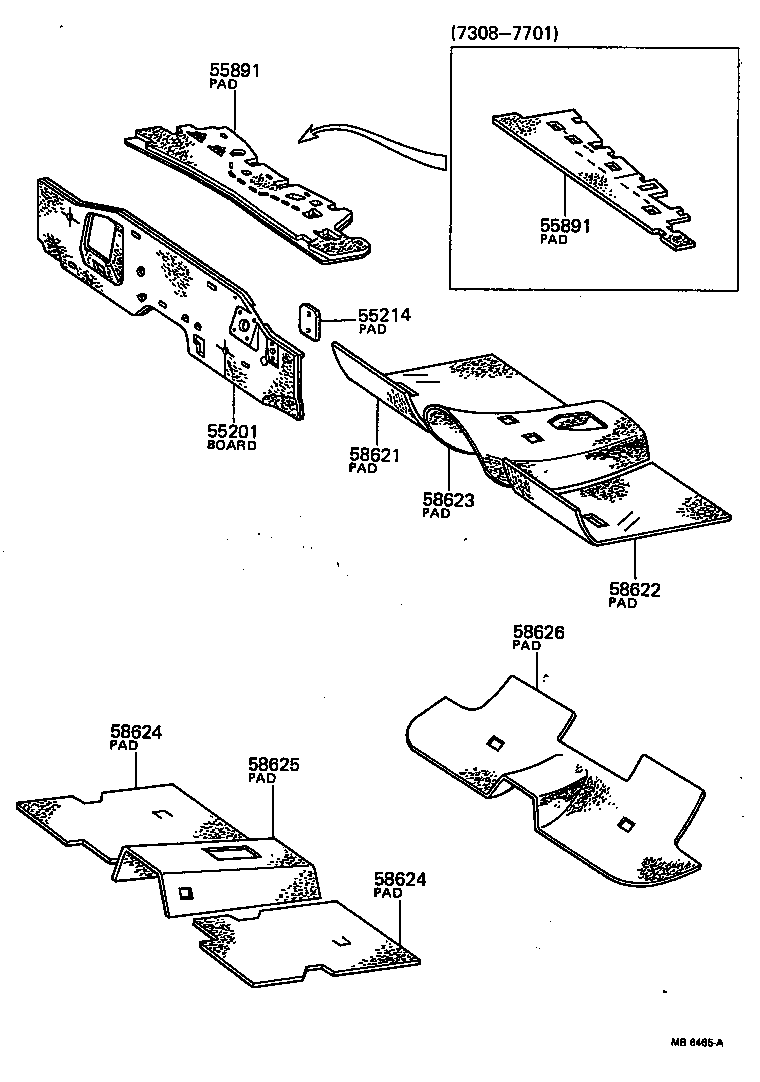

Figure MB6451C MB6451C 1973-08 → 1979-05 Figure MB6465A MB6465A 1973-08 → 1979-05

Part groups

PNCDescription
55201 Board Sub-assy, Dash Panel Silencer
55214 Pad, Dash Panel Insulator, NO.2
55890 Insulator Assy, Cowl Top
55891 Pad, Cowl Top Silencer, Inner RH
55892 Pad, Cowl Top Silencer, Inner LH
58621 Pad, Floor Silencer, Front RH
58622 Pad, Floor Silencer, Front LH
58623 Pad, Floor Silencer, Front Center
58624 Pad, Floor Silencer, Rear Side
58625 Pad, Floor Silencer, Rear Center
58626 Pad, Floor Silencer, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
