Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

12 part groups · 2 illustrations

Illustrations

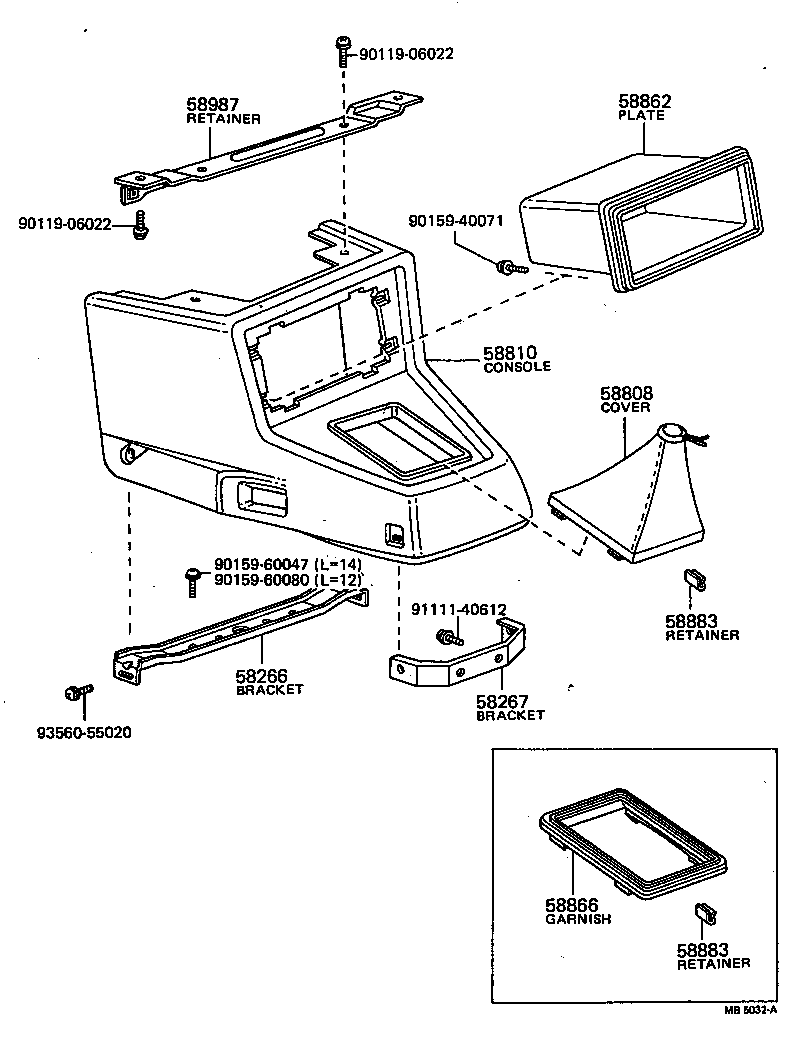

Figure MB5051A MB5051A 1973-08 → 1979-05 Figure MB5032A MB5032A 1973-08 → 1979-05

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58862 Plate, Console Finish
58866 Garnish, Shifting Hole
58879 Cover, Parking Brake Lever
58883 Retainer, Shifting Hole Cover
58895 Cover, Switch Hole, NO.1
58940 Console Assy, Rear
58987 Retainer, Console Box Stereo, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
