Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

10 part groups · 3 illustrations

Illustrations

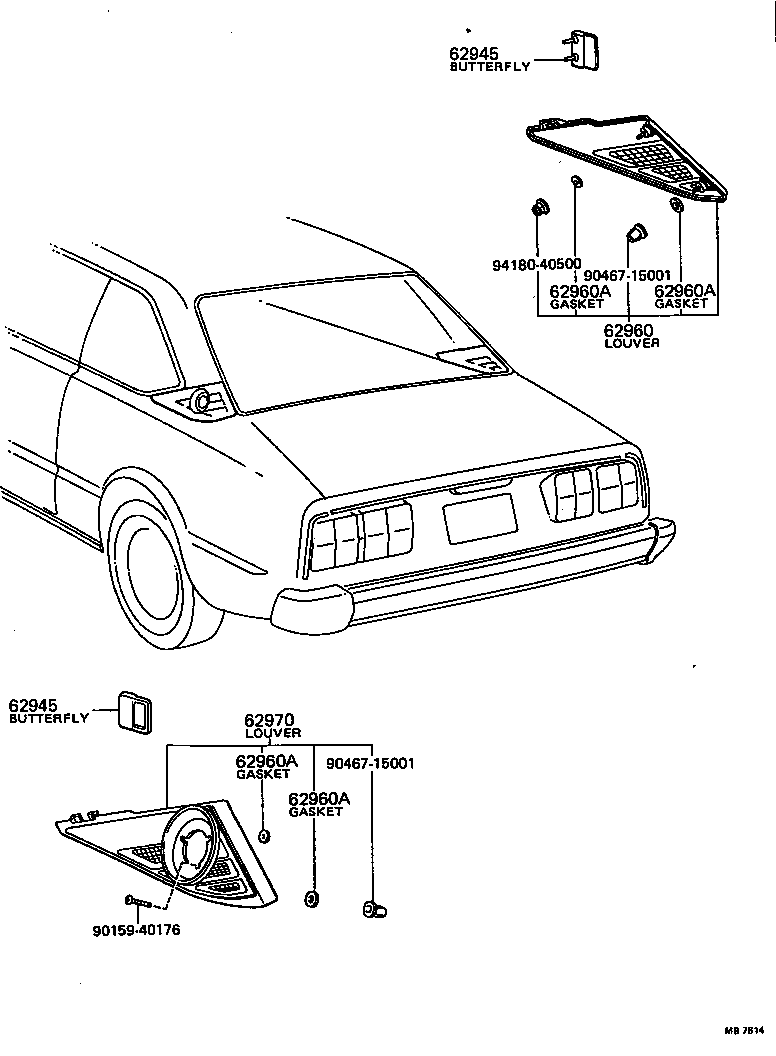

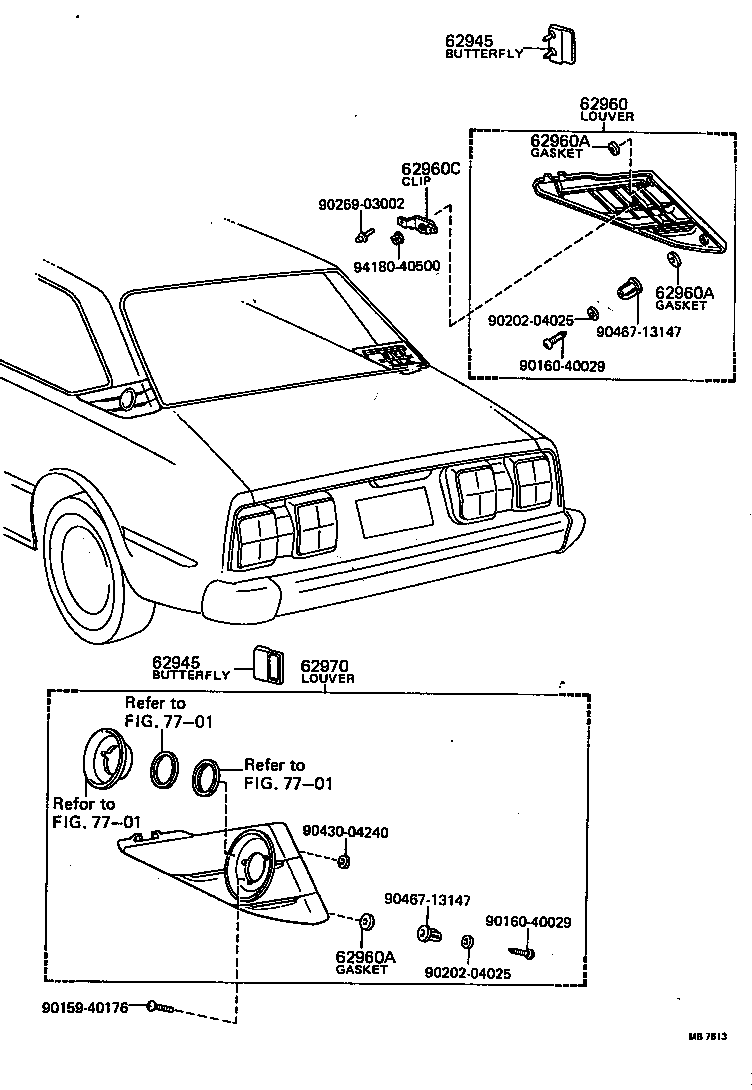

Figure MB5023B MB5023B 1973-08 → 1979-05 Figure MB7613 MB7613 1973-08 → 1977-01 Figure MB7614 MB7614 1977-01 → 1978-08

Part groups

PNCDescription
62580 Garnish Assy, Quarter Ventilation Louver, RH
62590 Garnish Assy, Quarter Ventilation Louver, LH
62930 Duct Assy, Roof Side Vent, RH
62939 Retainer, Roof Side Vent
62940 Duct Assy, Roof Side Vent, LH
62945 Butterfly, Roof Side Vent
62960 Louver Assy, Roof Side Vent, RH
62960A Gasket(FOR ROOF SIDE VENT LOUVER)
62960C Clip, Roof Side Vent Louver
62970 Louver Assy, Roof Side Vent, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
