Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

11 part groups · 2 illustrations

Illustrations

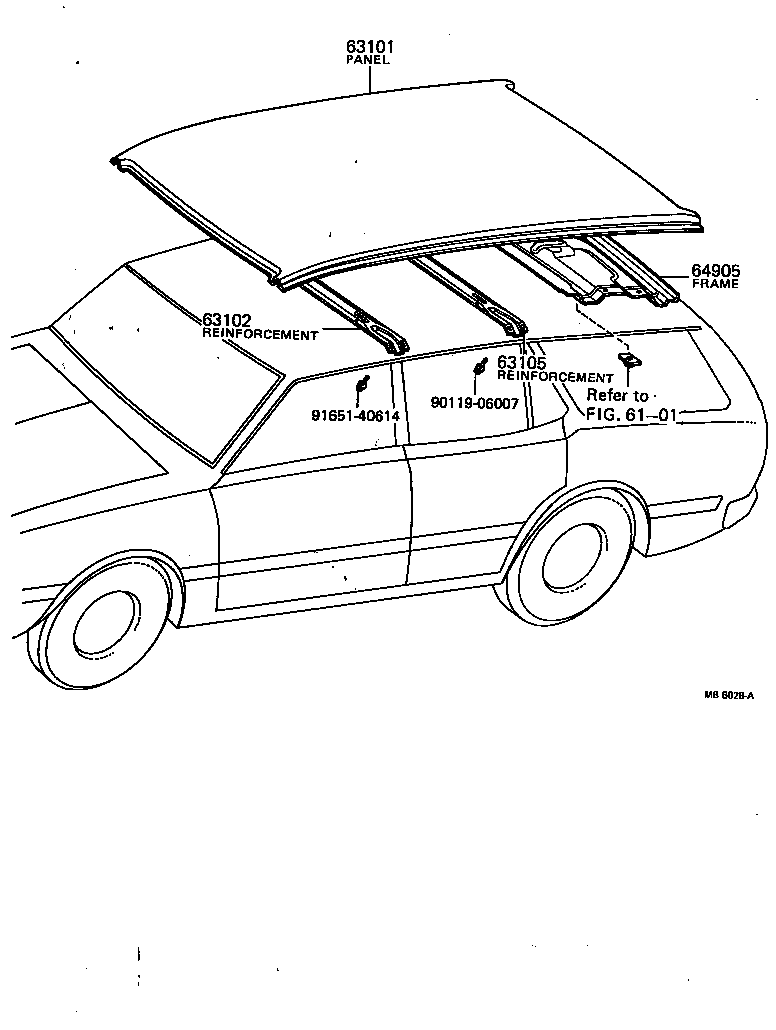

Figure MB5024B MB5024B 1973-08 → 1979-05 Figure MB6028A MB6028A 1973-08 → 1979-05

Part groups

PNCDescription
63101 Panel Sub-assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
63133 Frame, Back Window Opening, Upper
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64818 Spacer, Back Window Glass
64831K Dam Kit, Back Window Glass
64905 Frame Sub-assy, Back Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
