Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 3 illustrations

Illustrations

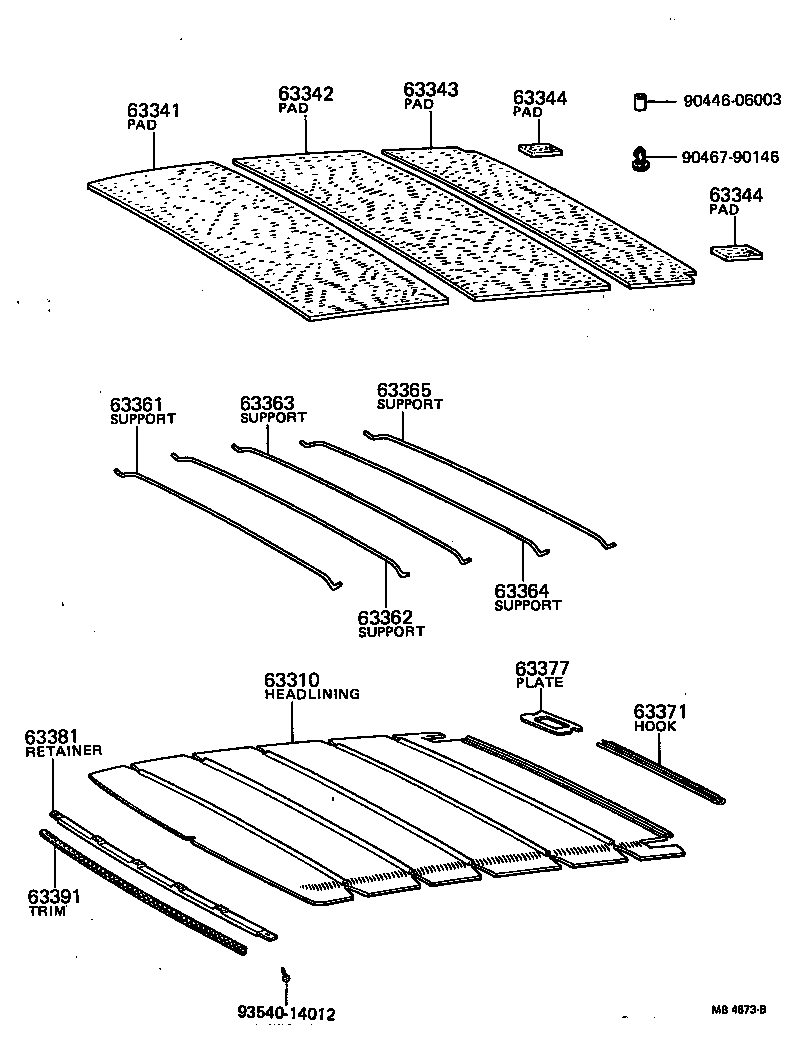

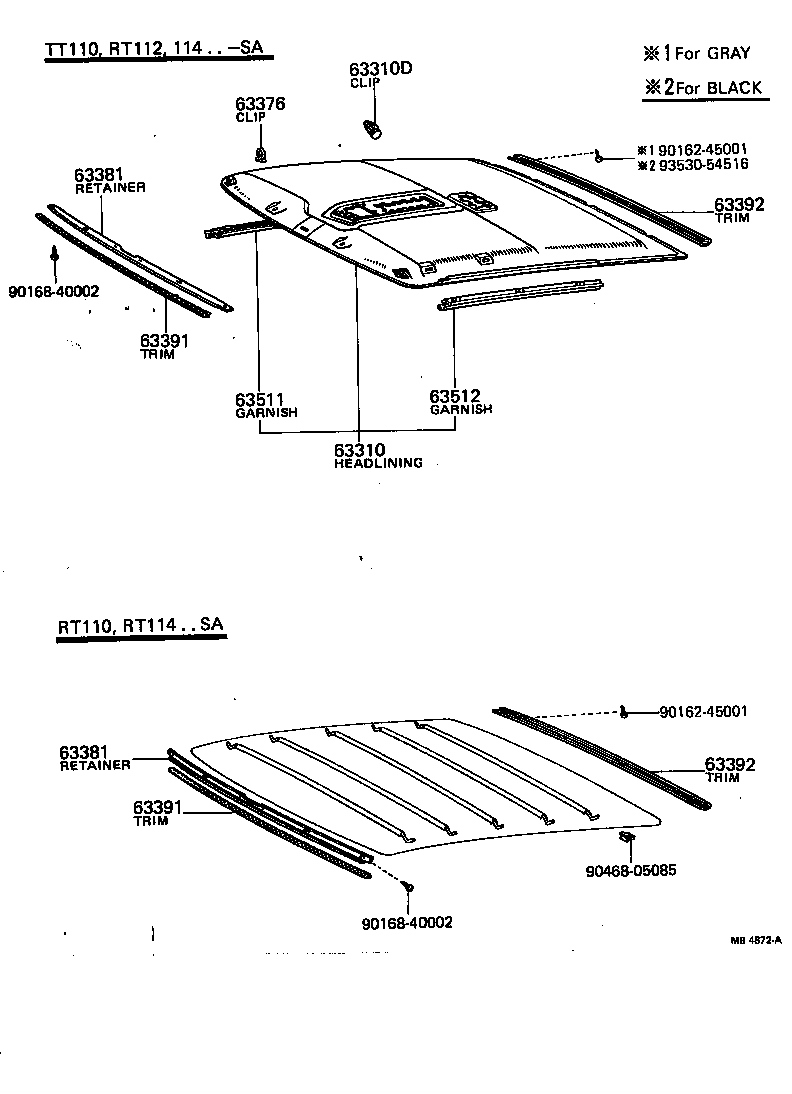

Figure MB4871C MB4871C 1973-08 → 1979-05 Figure MB4872A MB4872A 1973-08 → 1978-08 Figure MB4873B MB4873B 1973-08 → 1979-05

Part groups

PNCDescription
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351 Silencer, Roof Side
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63371 Hook, Roof Headlining Support
63376 Clip, Headlining
63377 Plate, Rear Room Lamp
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63511 Garnish, Roof Headlining Side, Front RH
63512 Garnish, Roof Headlining Side, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
