Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

26 part groups · 2 illustrations

Illustrations

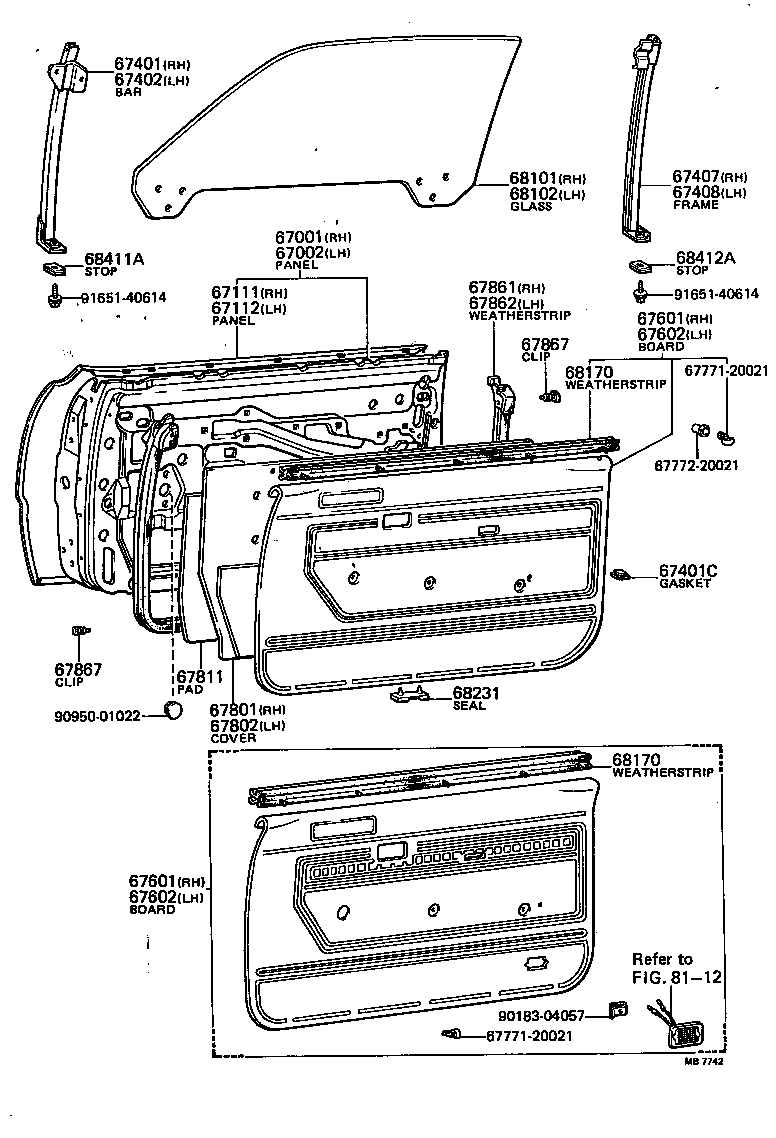

Figure MB7741 MB7741 1973-08 → 1979-05 Figure MB7742 MB7742 1973-08 → 1978-08

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401 Bar Sub-assy, Front Door Window, Front RH
67401C Gasket, Front Door Division Bar
67402 Bar Sub-assy, Front Door Window, Front LH
67407 Frame Sub-assy, Front Door, Rear Lower RH
67408 Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67785 Holder, Front Door Locking Button Collar
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67811 Pad, Front Door Silencer
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867 Clip, Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68170 Weatherstrip Assy, Front Door Glass, Inner
68231 Seal, Front Door Drain Hole Dust
68411A Stopper, Door Window Glass, Lower Front
68412A Stopper, Door Window Glass, Lower Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
