Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

25 part groups · 2 illustrations

Illustrations

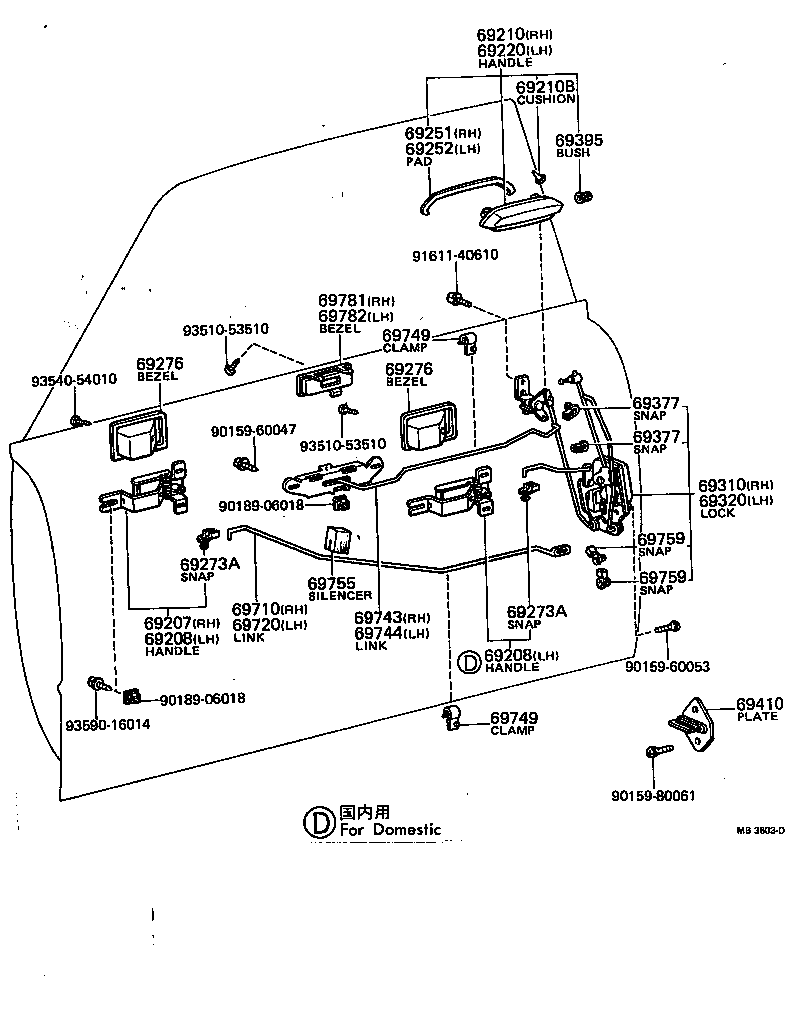

Figure MB3602B MB3602B 1973-08 → 1979-05 Figure MB3603D MB3603D 1973-08 → 1978-08

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69210B Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
69220 Handle Assy, Front Door Outside, LH
69251 Pad, Front Door Outside Handle, Front RH
69252 Pad, Front Door Outside Handle, Front LH
69269A Seal, Door Inside Handle NO.1(FOR FRONT DOOR)
69273A Snap, Door Inside Handle Rod(FOR FRONT DOOR)
69276 Bezel, Front Door Inside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69377 Snap, Front Door Lock Control Rod
69395 Bush(FOR DOOR OUTSIDE HANDLE)
69410 Plate Assy, Front Door Lock Striker
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69743 Link, Front Door Locking Control, NO.1 RH
69744 Link, Front Door Locking Control, NO.1 LH
69747 Button, Door Locking
69749 Clamp, Front Door Lock Link
69755 Silencer, Front Door Lock Link
69759 Snap, Door Lock Control Link, NO.1
69781 Bezel, Door Locking, RH
69782 Bezel, Door Locking, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
