Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

26 part groups · 2 illustrations

Illustrations

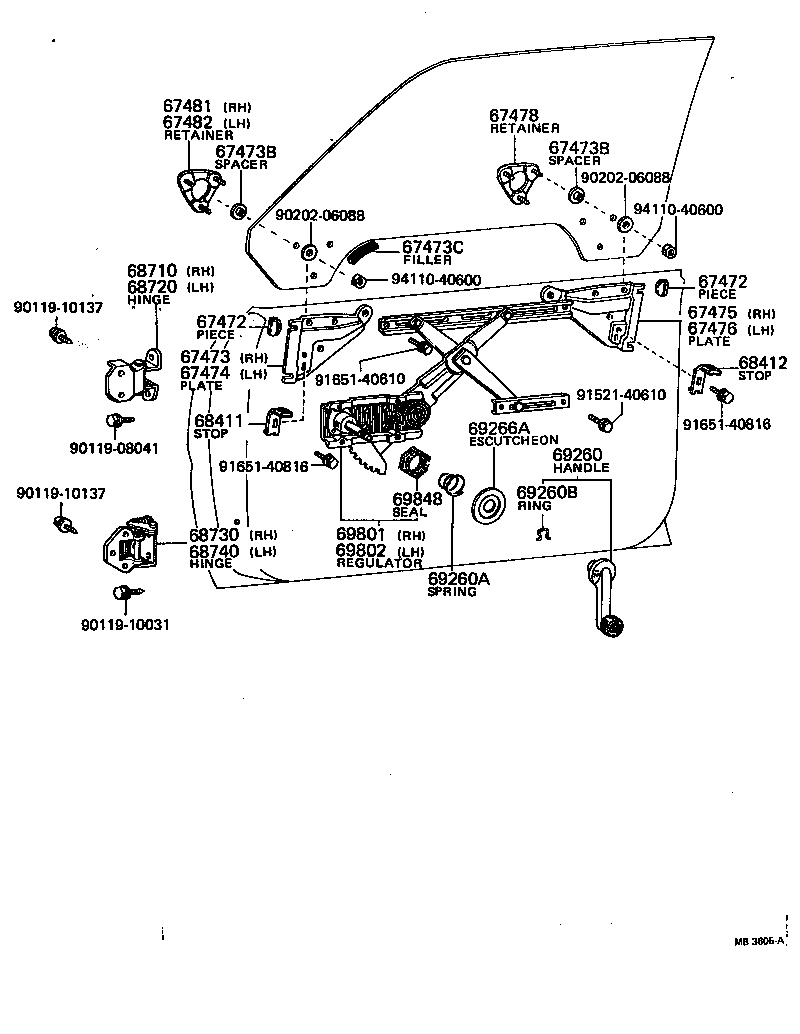

Figure MB3604A MB3604A 1973-08 → 1979-05 Figure MB3605A MB3605A 1973-08 → 1978-08

Part groups

PNCDescription
67472 Piece, Front Door Glass Guide
67473 Plate, Front Door Glass Holder, Front RH
67473B Spacer, Front Door Glass Holder Plate
67473C Fillar, Front Door Glass Bracket, Auxiliary
67474 Plate, Front Door Glass Holder, Front LH
67475 Plate, Front Door Glass Holder, Rear RH
67476 Plate, Front Door Glass Holder, Rear LH
67478 Retainer, Front Door Glass, Rear
67481 Retainer, Front Door Glass, Front RH
67482 Retainer, Front Door Glass, Front LH
68171 Weatherstrip, Front Door Glass Channel
68411 Stopper, Door Window Glass, Upper Front
68412 Stopper, Door Window Glass, Upper Rear
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69260 Handle Assy, Front Door Window Regulator
69260A Spring(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69848 Seal, Window Regulator Hole
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
