Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

26 part groups · 3 illustrations

Illustrations

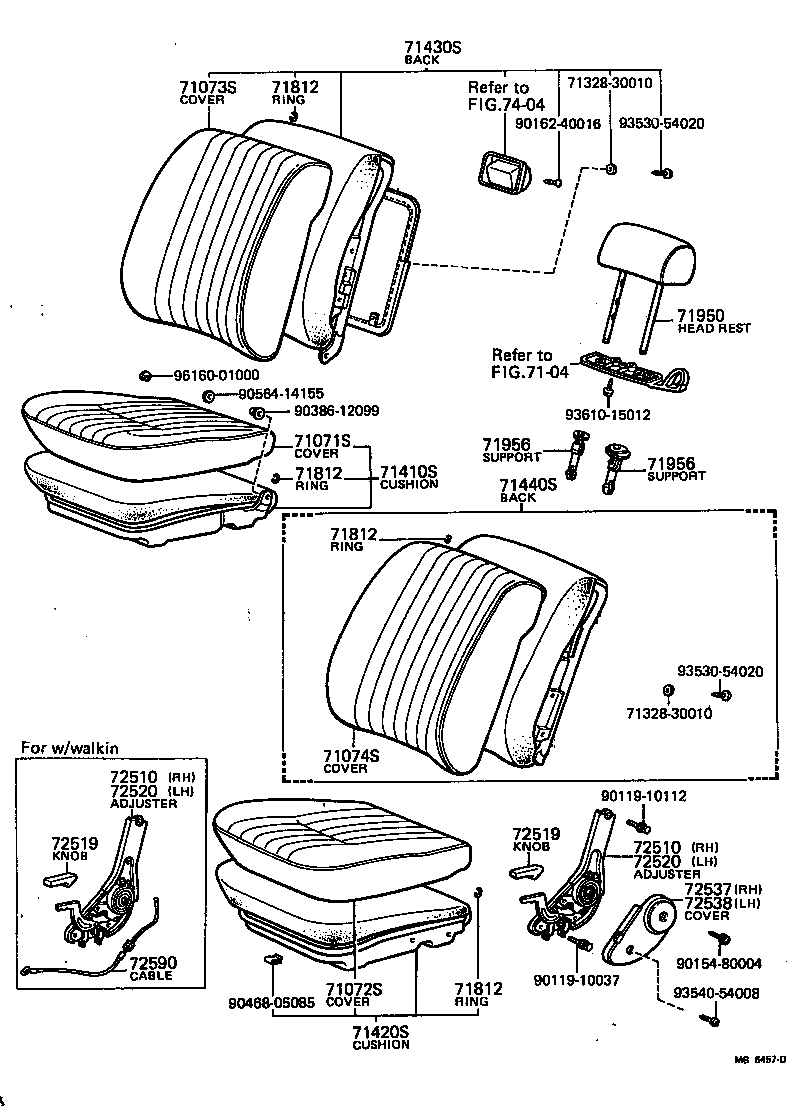

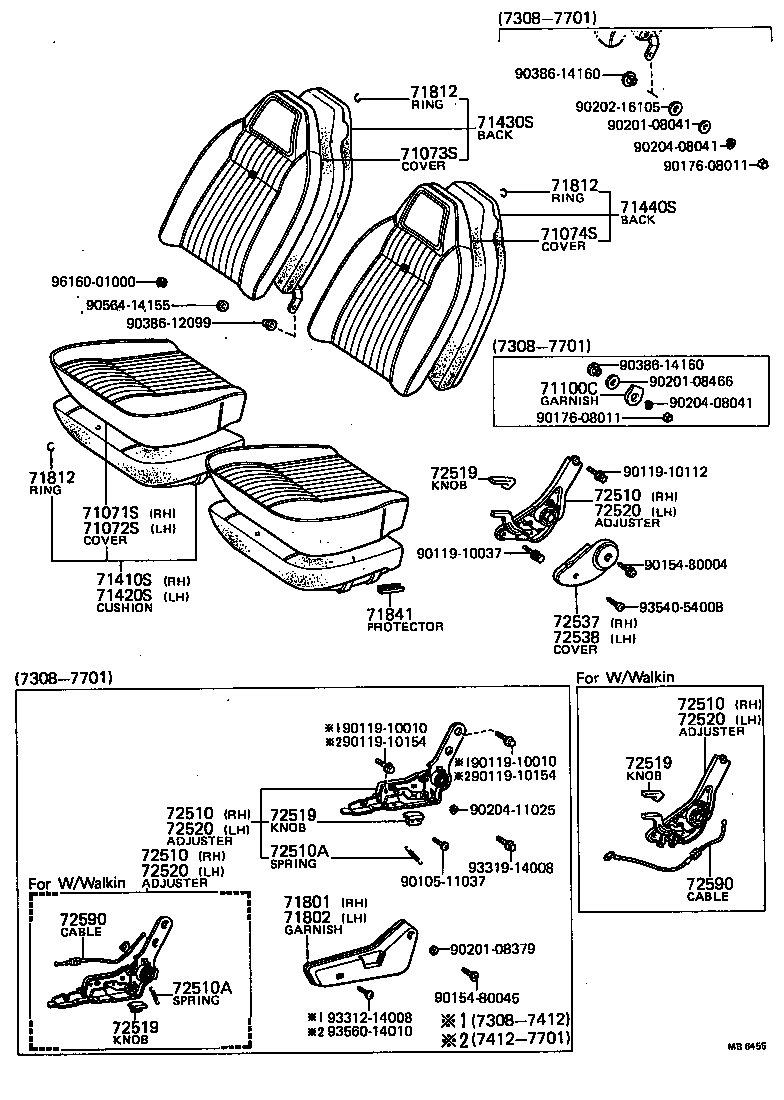

Figure MB6466 MB6466 1973-08 → 1978-08 Figure MB6455 MB6455 1973-08 → 1979-05 Figure MB6457D MB6457D 1977-01 → 1979-05

Part groups

PNCDescription
71071B Cover, Front Seat Cushion(FOR BENCH TYPE)
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073B Cover, Front Seatback(FOR BENCH TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100C Garnish, Front Seat Hinge
71410B Cushion Assy, Front Seat(FOR BENCH TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430B Back Assy, Front Seat(FOR BENCH TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71801 Garnish Sub-assy, Front Seat Cushion, RH
71802 Garnish Sub-assy, Front Seat Cushion, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71841 Protector, Front Seat Cushion Edge
71950 Headrest Assy, Front Seat
71956 Support, Headrest
72510 Adjuster Assy, Reclining Seatback, RH
72510A Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER)
72519 Knob, Reclining Seatback Adjusting Arm
72520 Adjuster Assy, Reclining Seatback, LH
72537 Cover, Reclining Hinge Outer, RH
72538 Cover, Reclining Hinge Outer, LH
72590 Cable Assy, Seatback Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
