Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

33 part groups · 4 illustrations

Illustrations

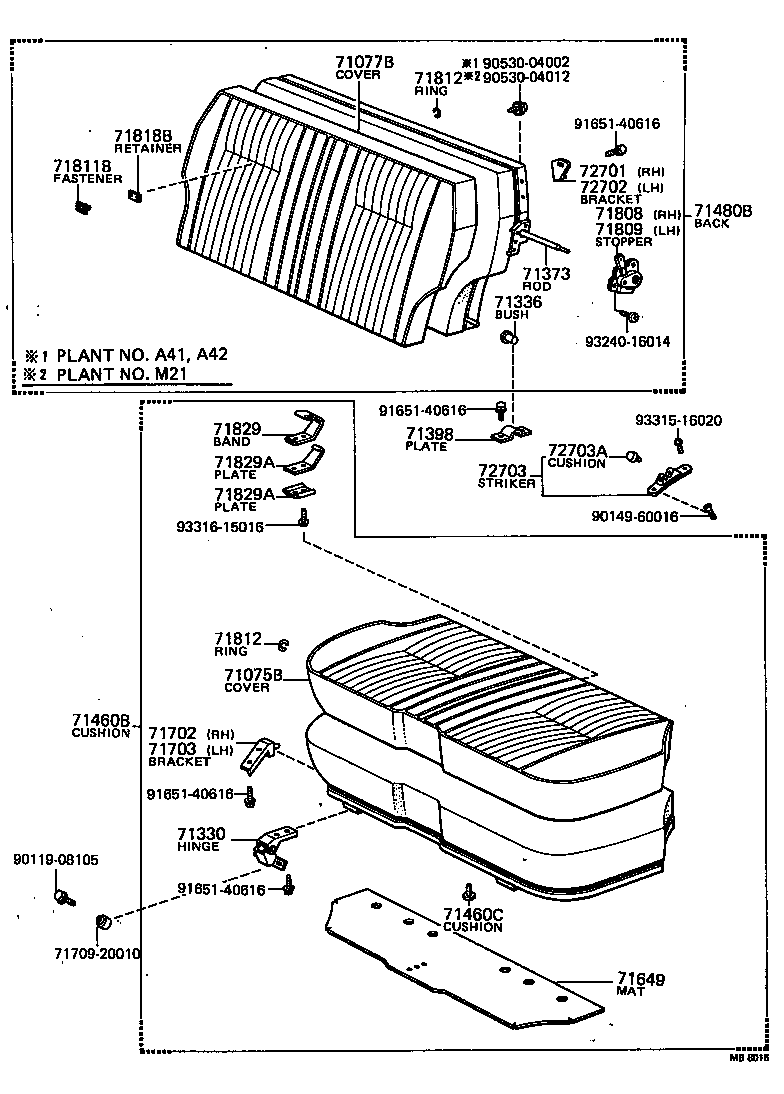

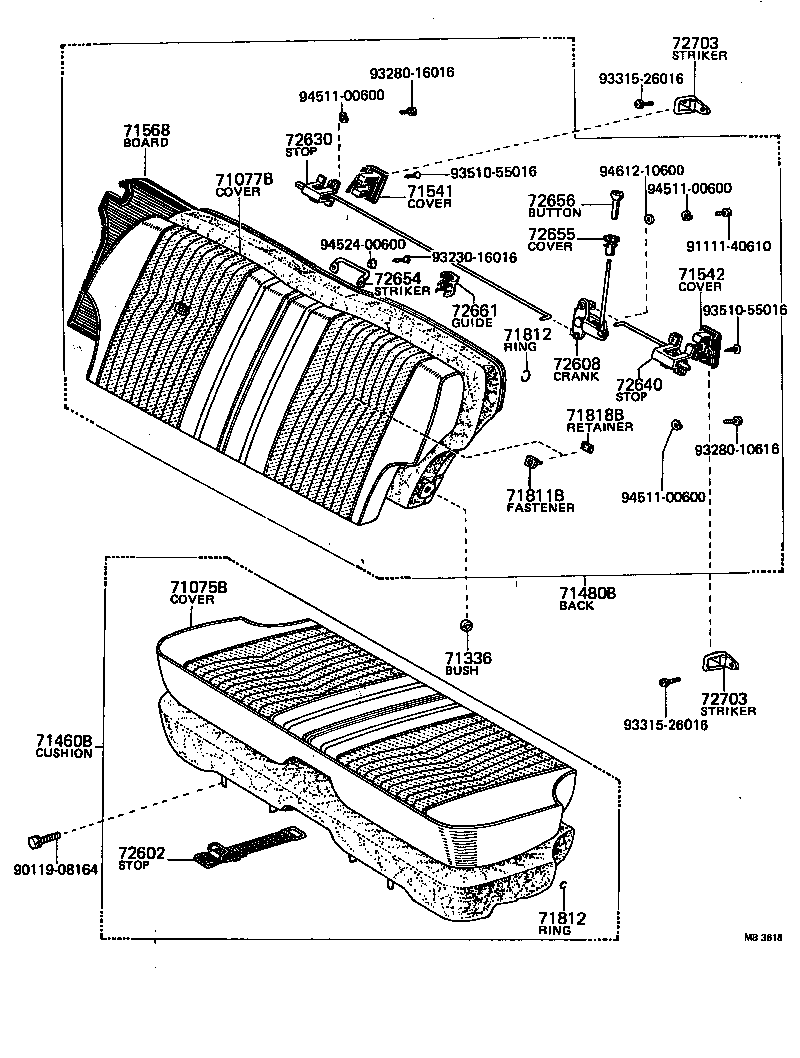

Figure MB3617 MB3617 1973-08 → 1979-05 Figure MB3617 MB3617 1977-01 → 1978-08 Figure MB3618 MB3618 1973-08 → 1977-01 Figure MB8015 MB8015 1973-08 → 1979-05

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71330 Hinge Assy, Rear Seat Cushion
71336 Bush OR Spacer, Rear Seatback Hinge
71373 Rod, Rear Seatback Locking
71398 Plate, Rear Seat Base
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460C Cushion (FOR REAR SEAT CUSHION)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71541 Cover, Rear Seatback Stop, RH
71542 Cover, Rear Seatback Stop, LH
71568 Board, Rear Seatback
71649 Mat, Rear Seat Cushion
71702 Bracket Sub-assy, Rear Seatback Stop, RH
71703 Bracket Sub-assy, Rear Seatback Stop, LH
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71811B Fastener (FOR REAR SEAT COVER)
71818B Retainer, Rear Seat Cover Fastener
71829 Band, Rear Seat Cushion
71829A Plate, Rear Seat Cushion Band Support
72602 Stop Sub-assy, Rear Seatback, Lower
72608 Crank Sub-assy, Rear Seatback Stop
72630 Stop Sub-assy, Rear Seatback Upper, RH
72640 Stop Sub-assy, Rear Seatback, Upper LH
72654 Striker, Rear Seatback Stop, Lower
72655 Cover, Rear Seatback Stop Handle
72656 Button, Rear Seatback Stop Release
72661 Guide, Rear Seatback Stop Rod
72701 Bracket Sub-assy, Rear Seatback Stopper
72702 Bracket Sub-assy, Rear Seatback Striker
72703 Striker Sub-assy, Rear Seatback Stopper
72703A Cushion, Rear Seatback Stopper Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
