Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

10 part groups · 2 illustrations

Illustrations

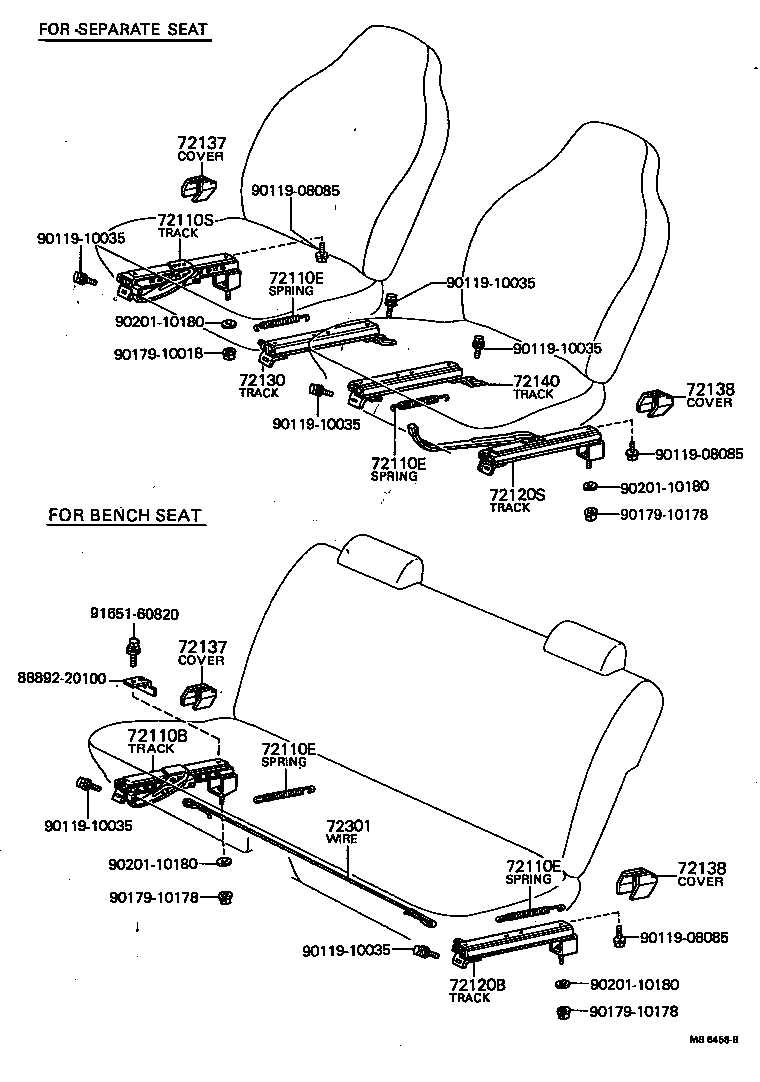

Figure MB3620A MB3620A 1973-08 → 1977-01 Figure MB6458B MB6458B 1977-01 → 1979-05

Part groups

PNCDescription
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72140 Track Assy, LH Seat, Inner
72311 Wire, Front Seat Track Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
