Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 2 illustrations

Illustrations

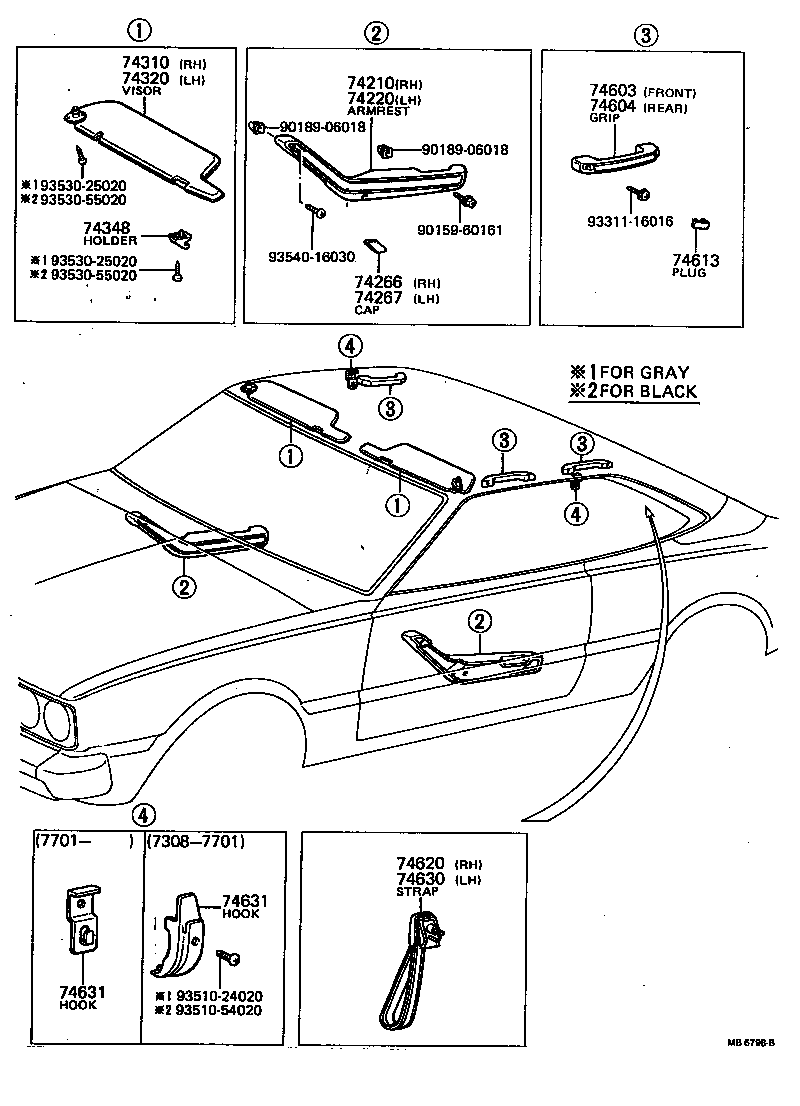

Figure MB3623C MB3623C 1973-08 → 1979-05 Figure MB6798B MB6798B 1973-08 → 1978-08

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74240 Armrest Assy, Rear, LH
74266 Cap, Door Armrest, RH
74267 Cap, Door Armrest, LH
74310 Visor Assy, RH
74310C Seat, Visor Bracket
74320 Visor Assy, LH
74348 Holder, Visor
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74620 Strap, Assist Rear, RH
74630 Strap, Assist Rear, LH
74631 Hook, Coat, A
74810 Pull Assy, Door, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
