Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

28 part groups · 4 illustrations

Illustrations

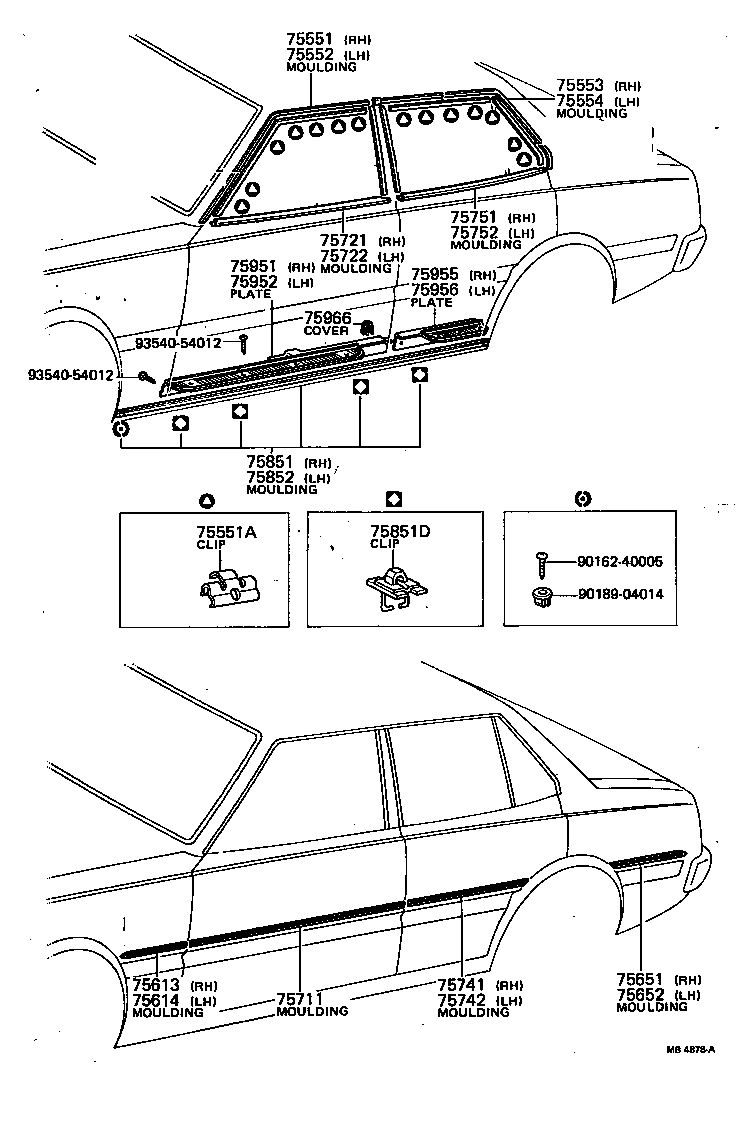

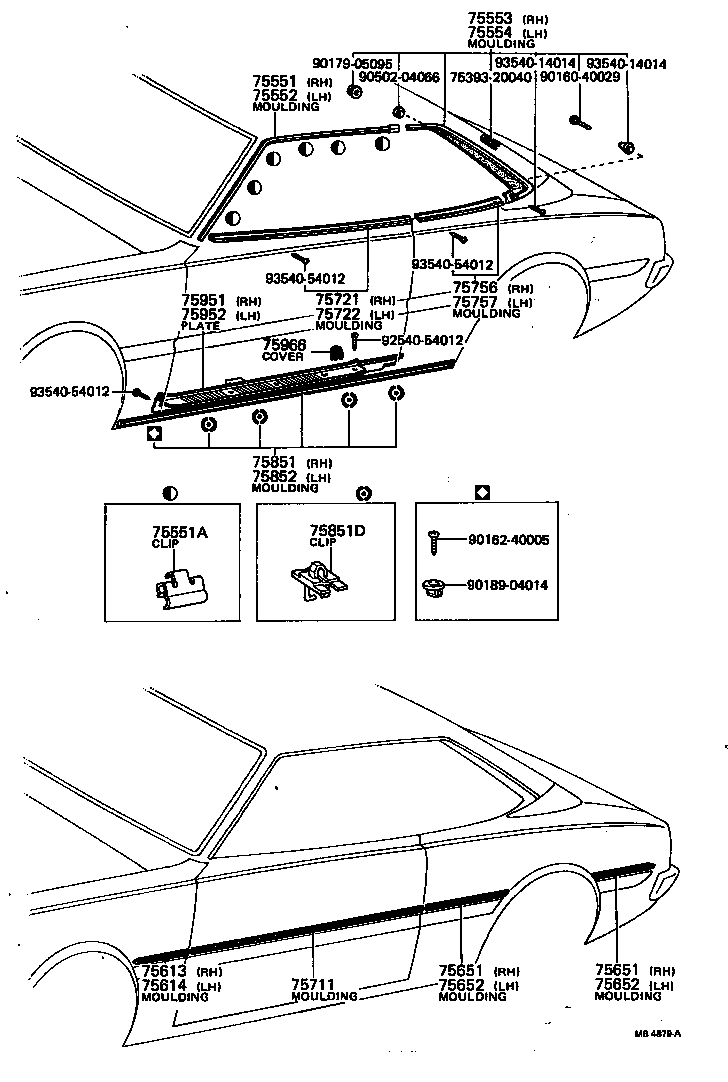

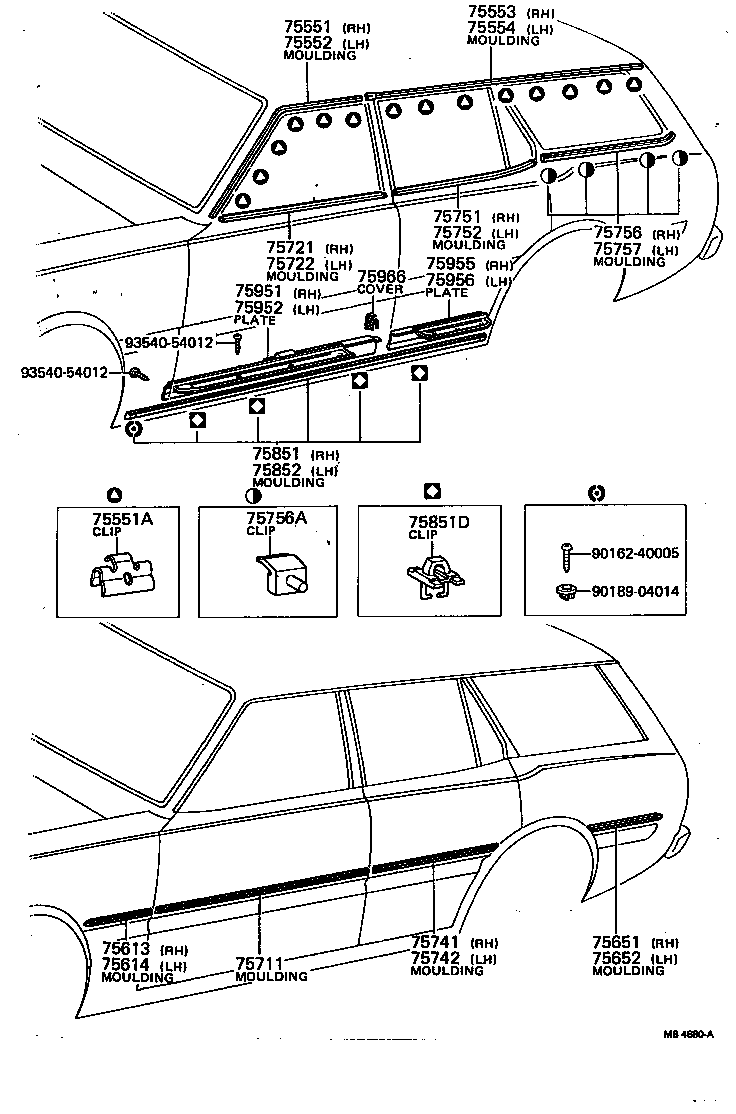

Figure MB4877A MB4877A 1973-08 → 1974-11 Figure MB4878A MB4878A 1973-08 → 1979-05 Figure MB4879A MB4879A 1973-08 → 1978-08 Figure MB4880A MB4880A 1973-08 → 1979-05

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75551A Clip, Roof Drip Moulding, NO.1
75551B Clip, Roof Drip Moulding, NO.2
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75711 Moulding, Front Door Outside, NO.1
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75756 Moulding, Quarter Belt, RH
75756A Clip, Belt Side Moulding
75757 Moulding, Quarter Belt, LH
75851 Moulding, Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75852 Moulding, Rocker Panel, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
75966 Cover, Door Scuff Plate Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
