Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

14 part groups · 3 illustrations

Illustrations

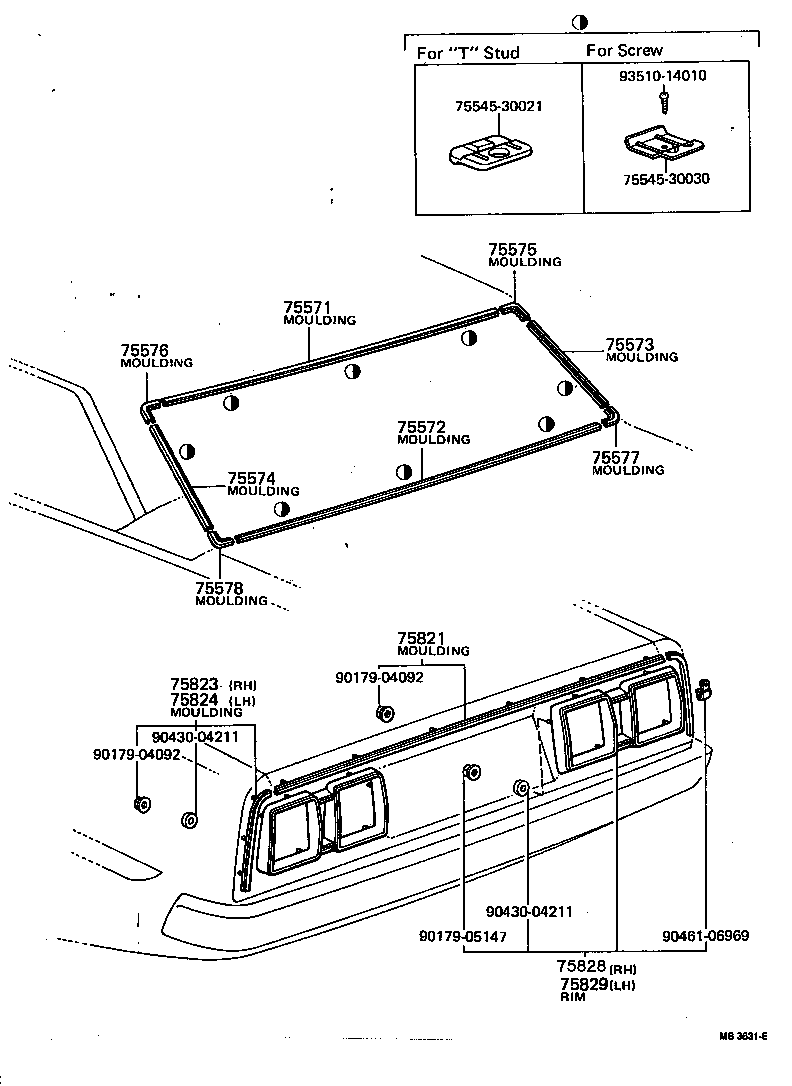

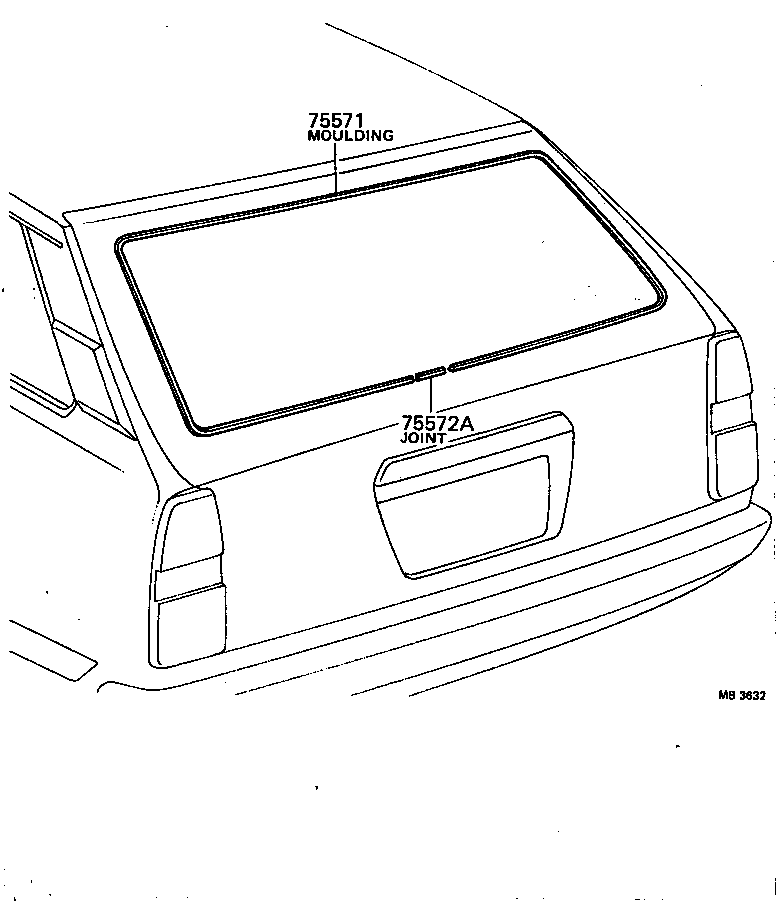

Figure MB3630C MB3630C 1973-08 → 1979-05 Figure MB3631E MB3631E 1973-08 → 1978-08 Figure MB3632 MB3632 1973-08 → 1979-05

Part groups

PNCDescription
75571 Moulding, Back Window, Outside Upper
75572 Moulding, Back Window, Lower
75572A Joint, Back Window Moulding, Lower
75573 Moulding, Back Window Side, RH
75574 Moulding, Back Window Side, LH
75575 Moulding, Back Window Corner, Upper RH
75576 Moulding, Back Window Corner, Upper LH
75577 Moulding, Back Window Corner, Lower RH
75578 Moulding, Back Window Corner, Lower LH
75821 Moulding, Luggage Compartment Door Back
75823 Moulding, Luggage Compartment Door, Side RH
75824 Moulding, Luggage Compartment Door, Side LH
75828 Rim, Rear Combination Lamp Outer, RH
75829 Rim, Rear Combination Lamp Outer, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
