Toyota Corona
1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe
Discontinued model
Data version 1979-05

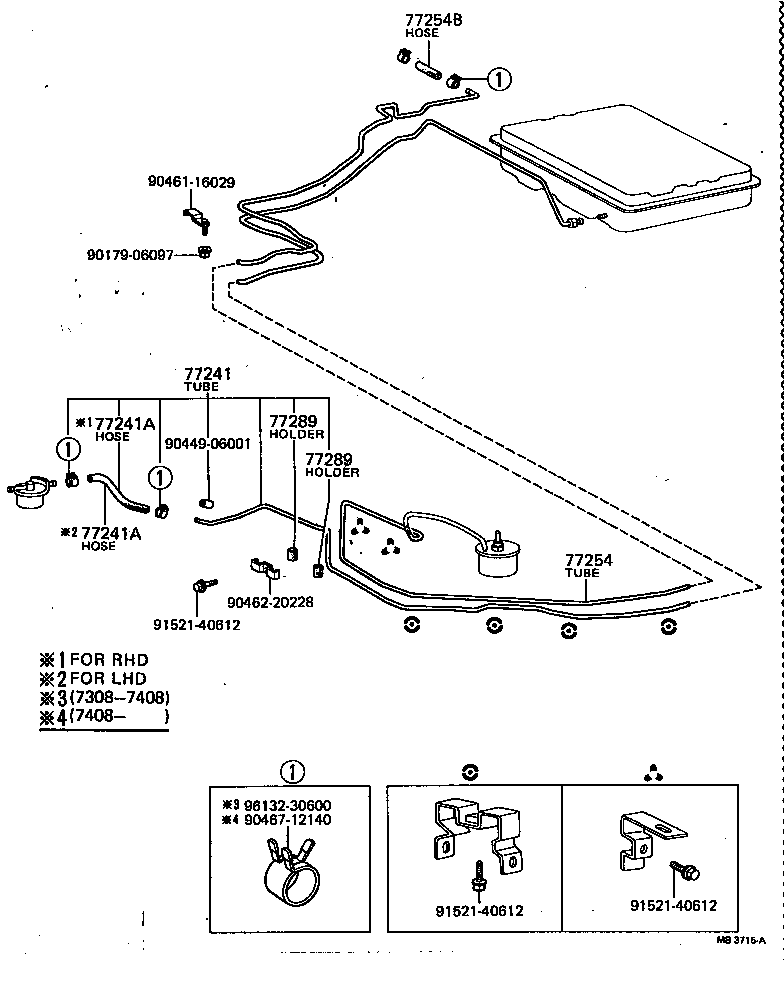

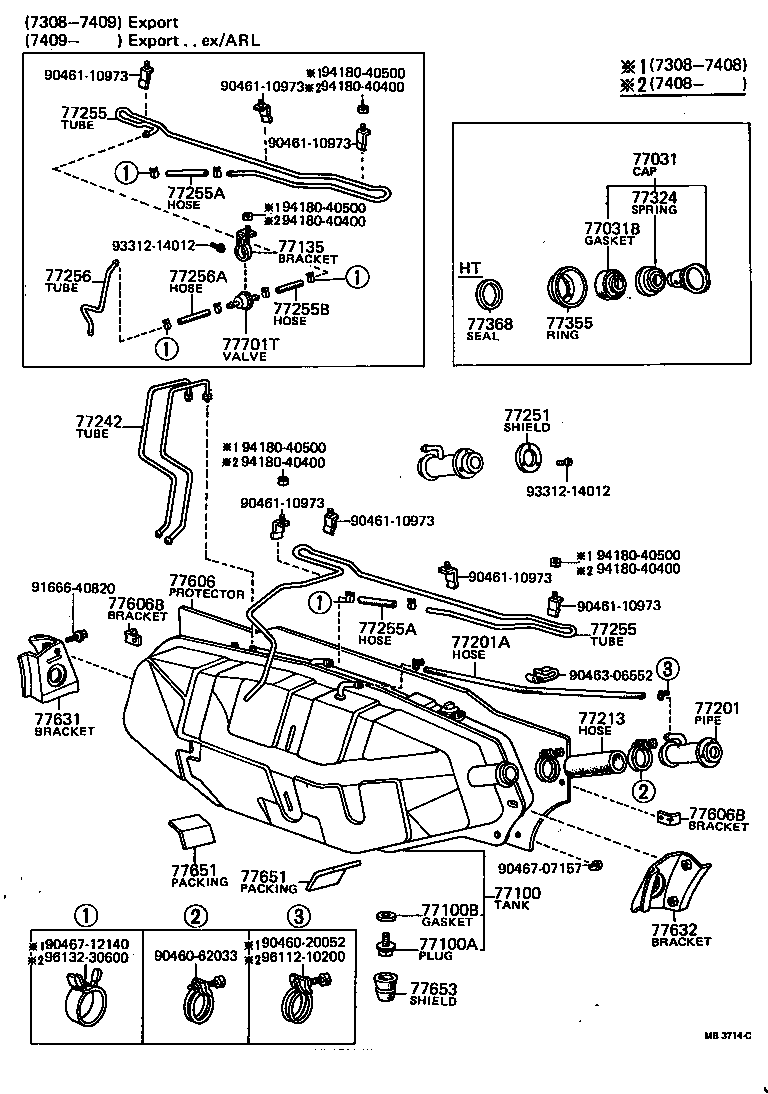

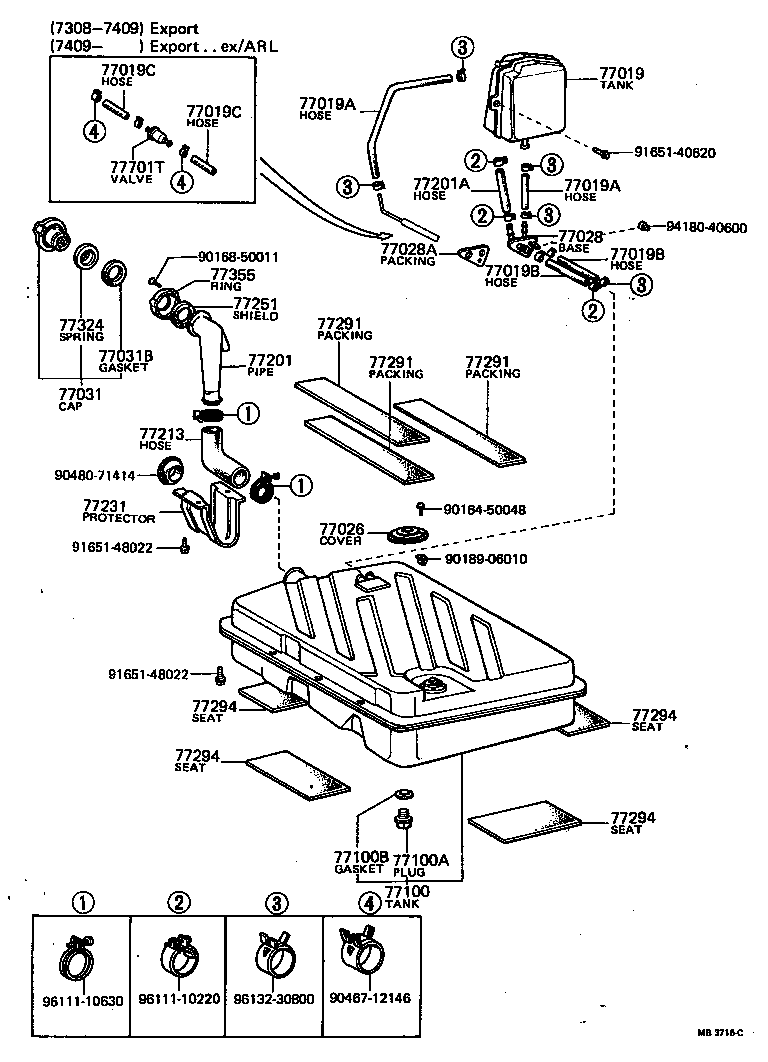

Fuel Tank & Tube
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 77019 | Tank Sub-assy, Fuel Expansion |
| 77019A | Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK) |
| 77019B | Hose, Fuel, NO.2(FOR FUEL EXPANSION TANK) |
| 77019C | Hose, Fuel, NO.3(FOR FUEL EXPANSION TANK) |
| 77026 | Cover Sub-assy, Fuel Sender Gage |
| 77028 | Base Sub-assy, Breather Joint, NO.1 |
| 77028A | Packing, NO.1 (FOR BREATHER JOINT, NO.1) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77135 | Bracket, Check Valve |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77231 | Protector, Inlet Tube |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77252 | Protector, Fuel Tube |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77256 | Tube, Fuel Emission, NO.3 |
| 77256A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3) |
| 77289 | Holder, Fuel Tank Pipe Setting |
| 77291 | Packing, Fuel Tank Support, Upper |
| 77294 | Sheet, Spare Tire Back |
| 77324 | Spring, Fuel Tank Cap |
| 77355 | Ring, Inlet Box |
| 77368 | Seal, Inlet Box |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77606B | Bracket, Fuel Tank Protector, Side |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77651 | Packing, Fuel Tank Bracket |
| 77653 | Shield, Fuel Tank Drain Plug |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
