Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

21 part groups · 3 illustrations

Illustrations

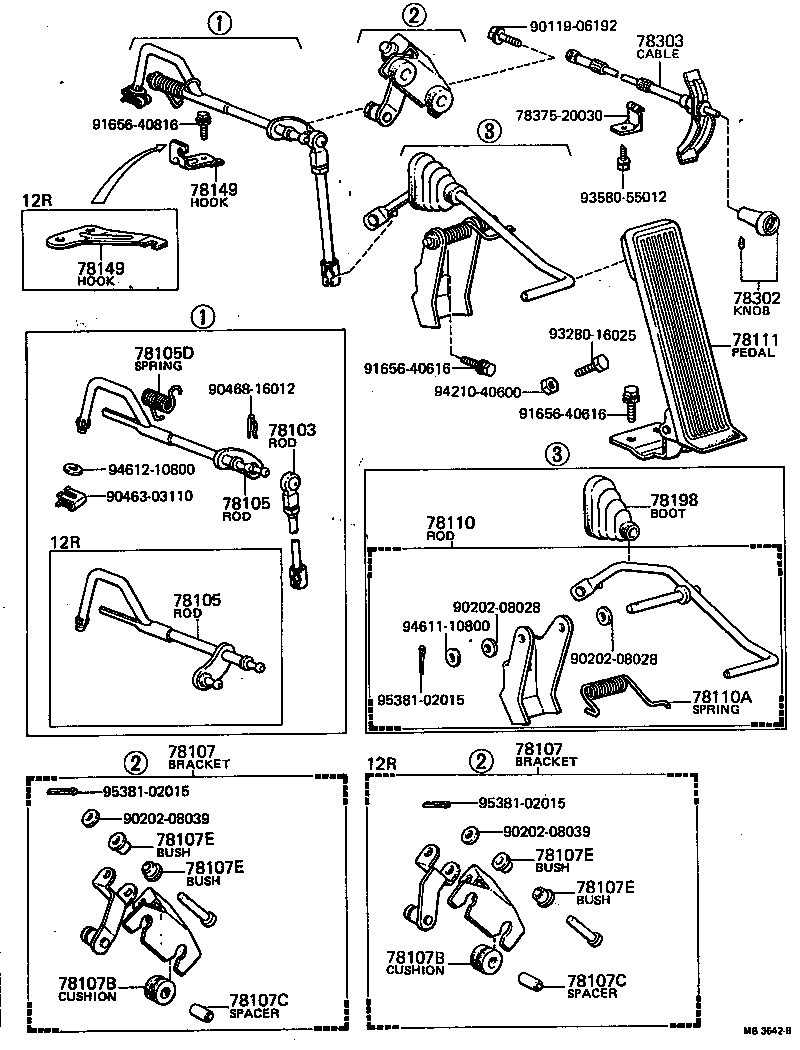

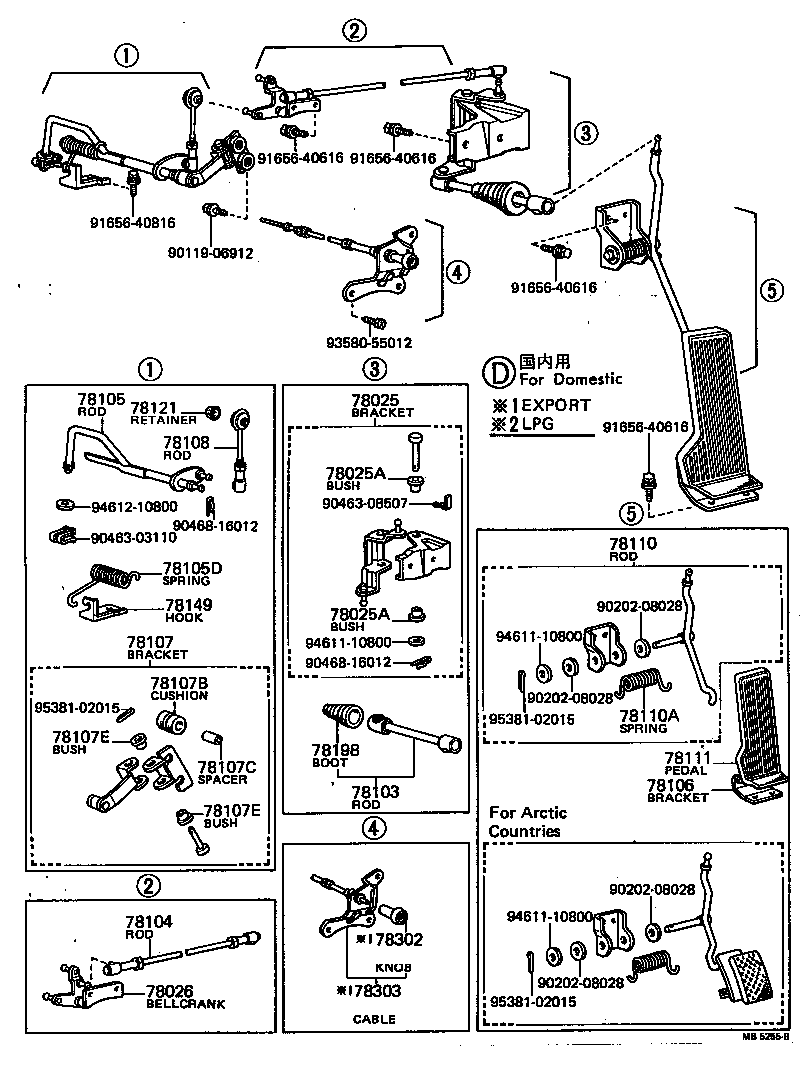

Figure MB3638C MB3638C 1973-08 → 1979-05 Figure MB3642B MB3642B 1973-08 → 1979-05 Figure MB5255B MB5255B 1975-09 → 1979-05

Part groups

PNCDescription
78025 Bracket Sub-assy, Accelerator Connecting Rod Arm
78025A Bush(FOR ACCELERATOR CONNECTING BRACKET)
78026 Bellcrank Sub-assy, Accelerator, NO.2
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78104 Rod Sub-assy, Accelerator Connecting, NO.2
78105 Rod Sub-assy, Accelerator Connecting, NO.3
78105D Spring (FOR ACCELERATOR TORQUE ROD)
78106 Bracket Sub-assy, Accelerator Pedal Support
78107 Bracket Sub-assy, Accelerator Torque Rod
78107B Cushion (FOR ACCELERATOR TORQUE ROD BRACKET)
78107C Spacer (FOR ACCELERATOR TORQUE ROD BRACKET)
78107E Bush (FOR ACCELERATOR TORQUE ROD BRACKET)
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78110 Rod Assy, Accelerator Pedal
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78121 Retainer, Spring (FOR ACCELERATOR LINK ROD)
78149 Hook, Accelerator Torque Rod Spring
78198 Boot, Accelerator Connecting Rod
78302 Knob Sub-assy, Choke Rod
78303 Cable Sub-assy, Choke Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
