Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 5 illustrations

Illustrations

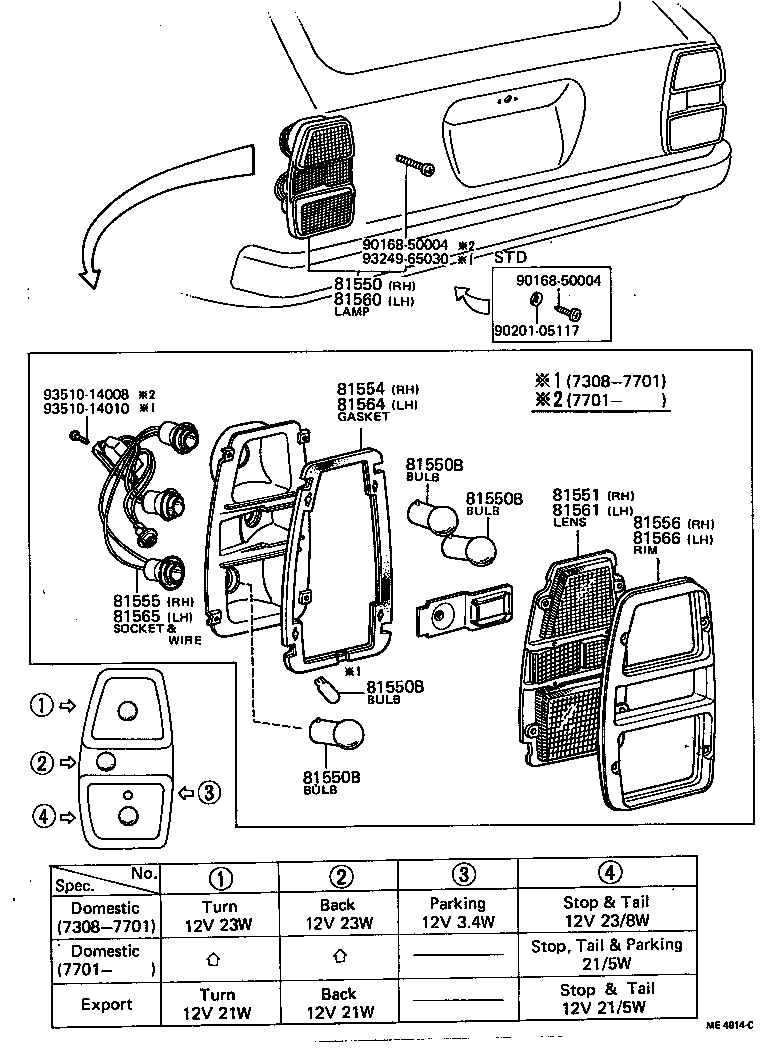

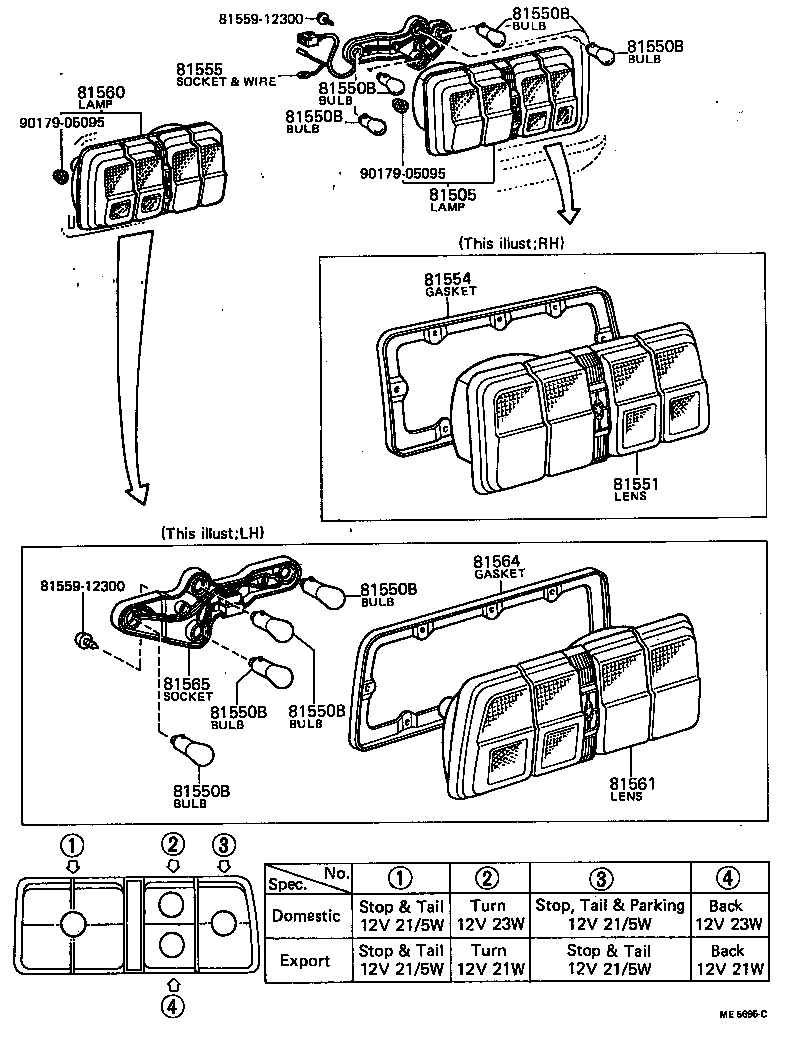

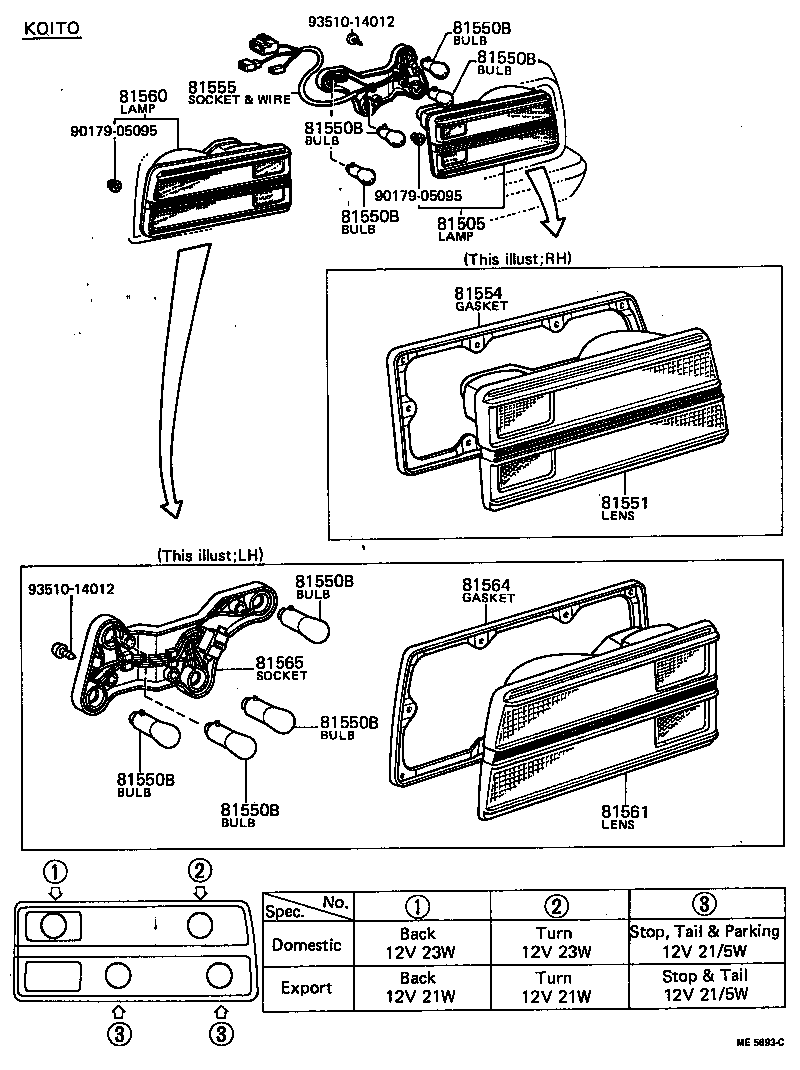

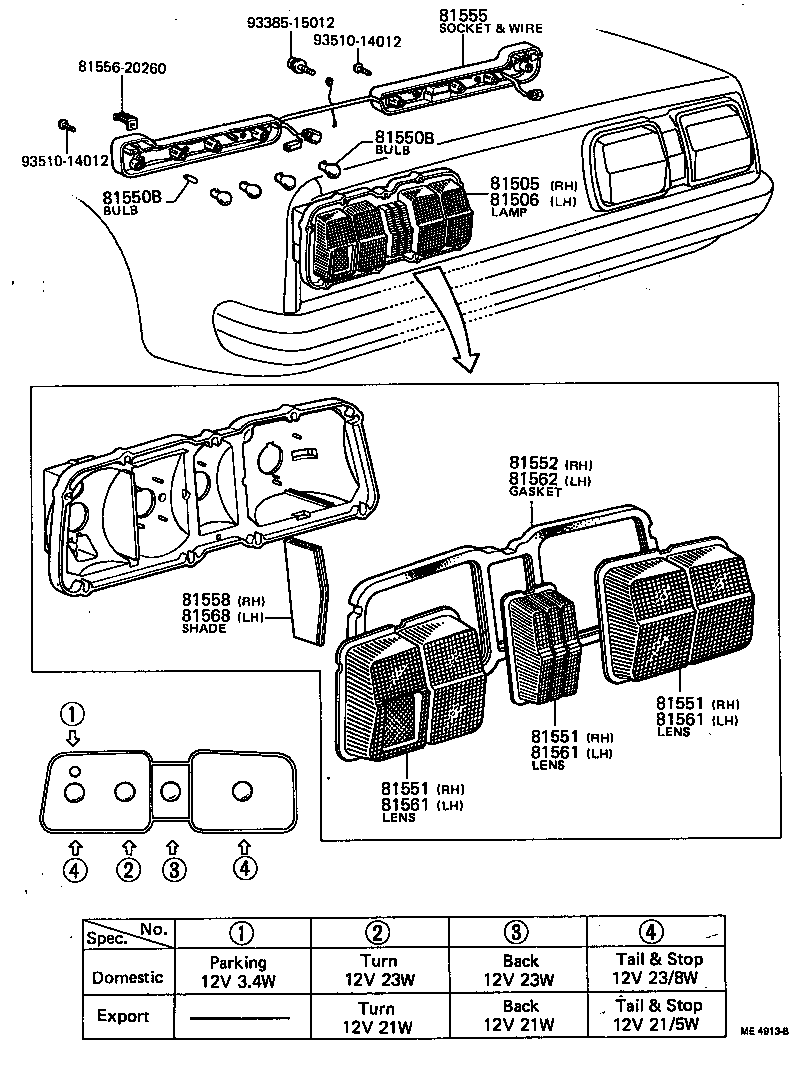

Figure ME4912B ME4912B 1973-08 → 1977-01 Figure ME5693C ME5693C 1977-01 → 1979-05 Figure ME4913B ME4913B 1973-08 → 1977-01 Figure ME5695C ME5695C 1977-01 → 1978-08 Figure ME4914C ME4914C 1973-08 → 1979-05

Part groups

PNCDescription
81505 Lamp Sub-assy, Rear Combination, RH
81506 Lamp Sub-assy, Rear Combination, LH
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
