Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 12 illustrations

Illustrations

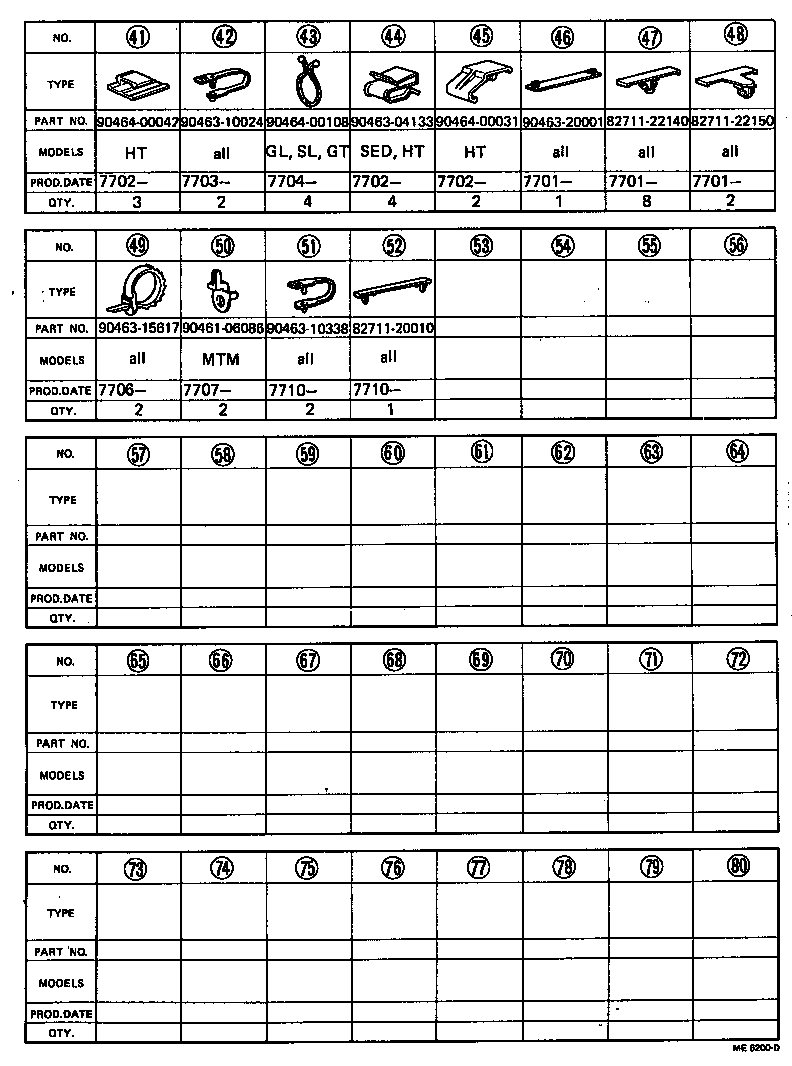

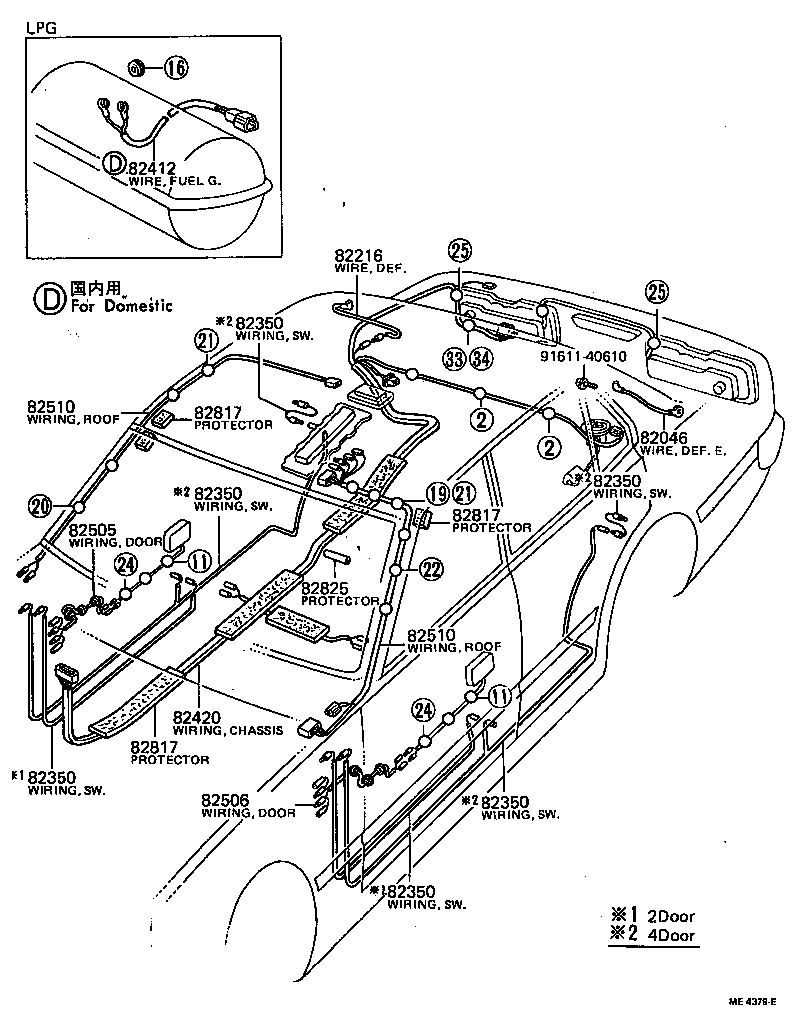

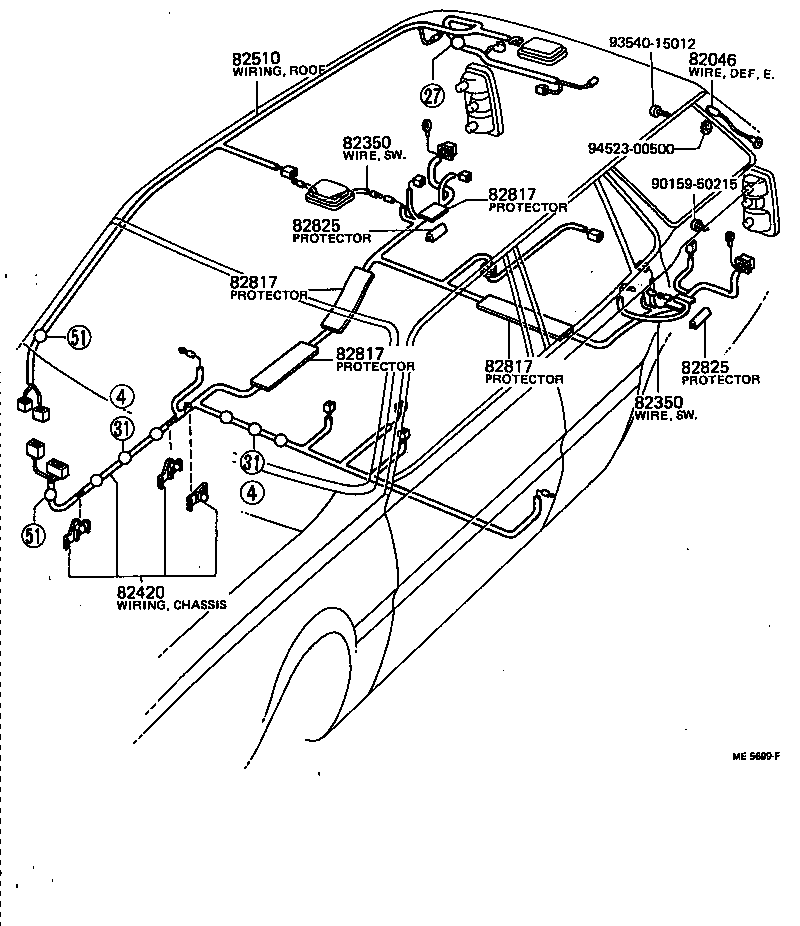

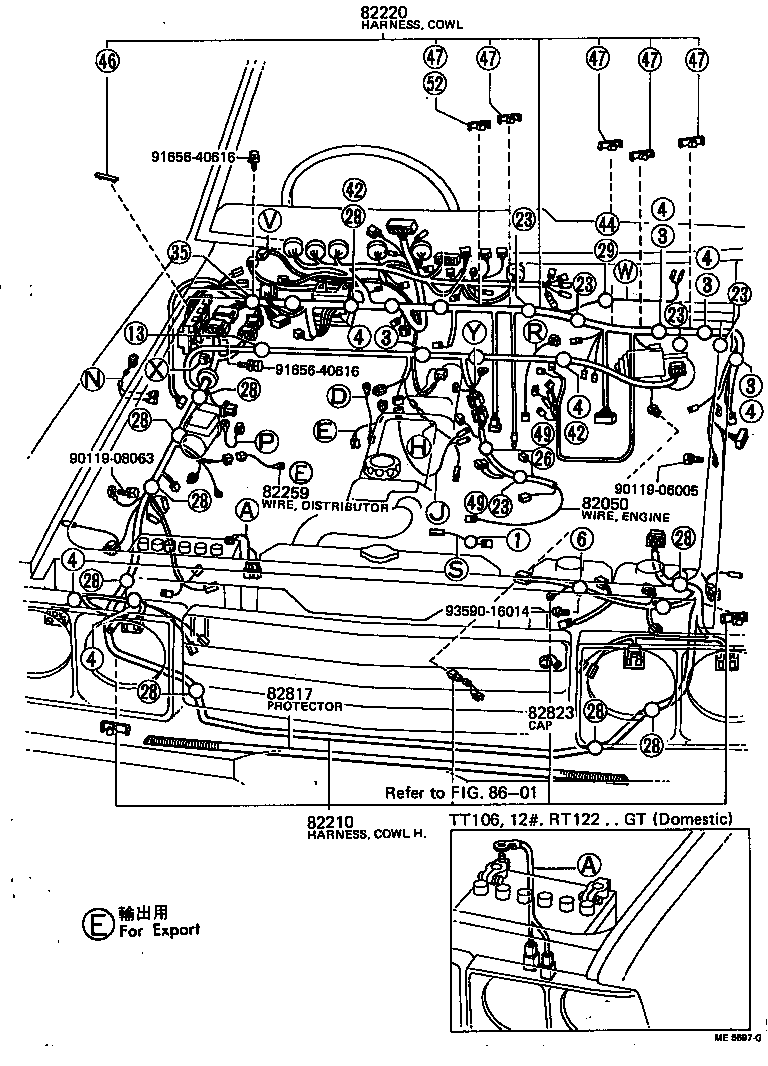

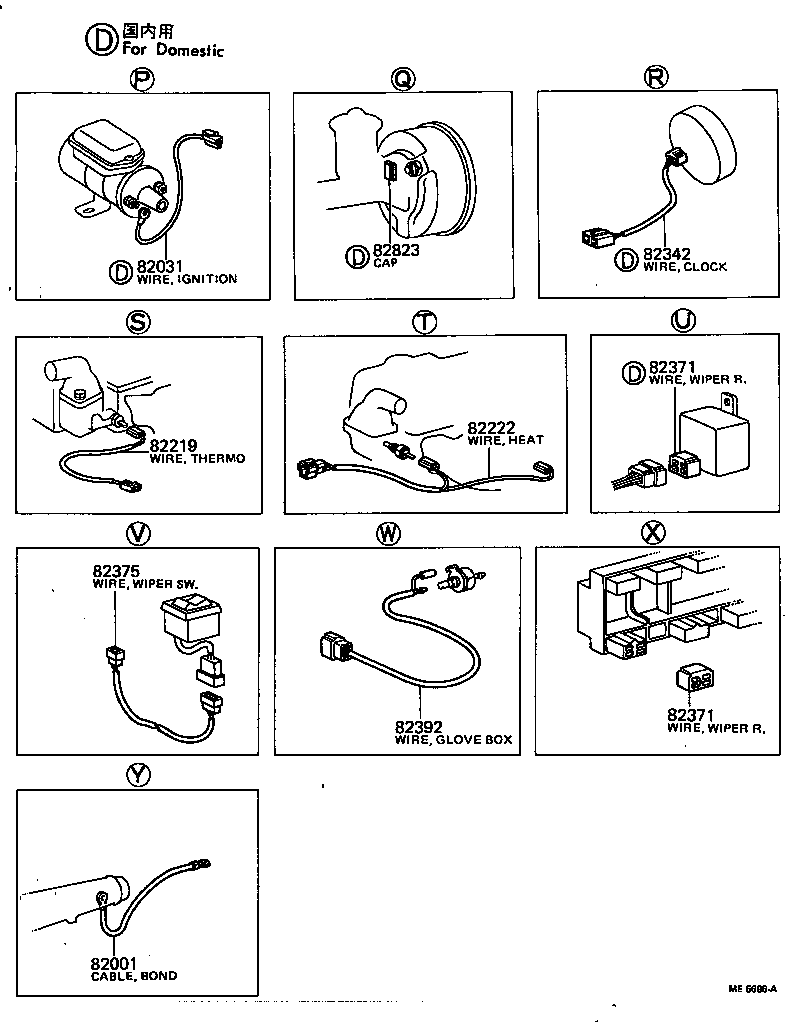

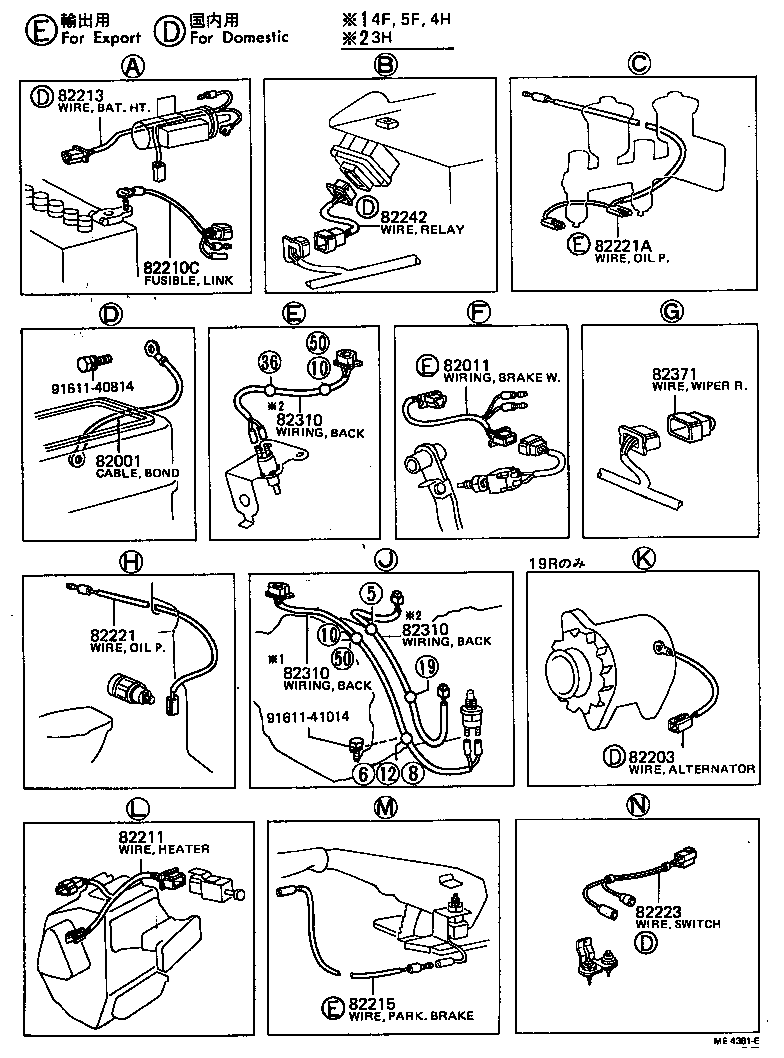

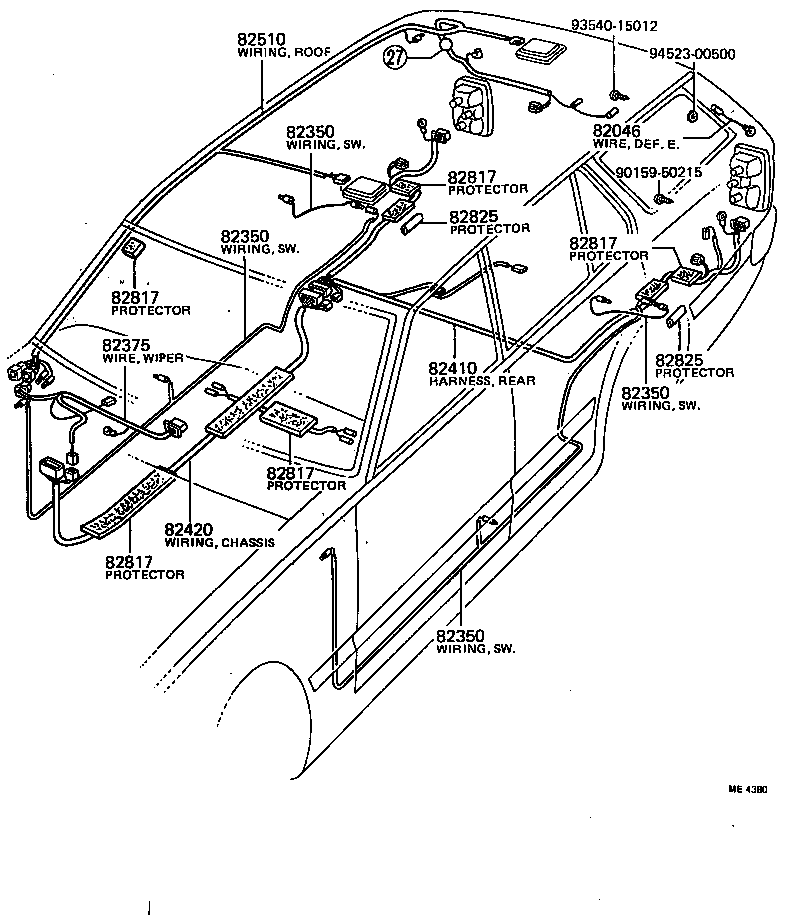

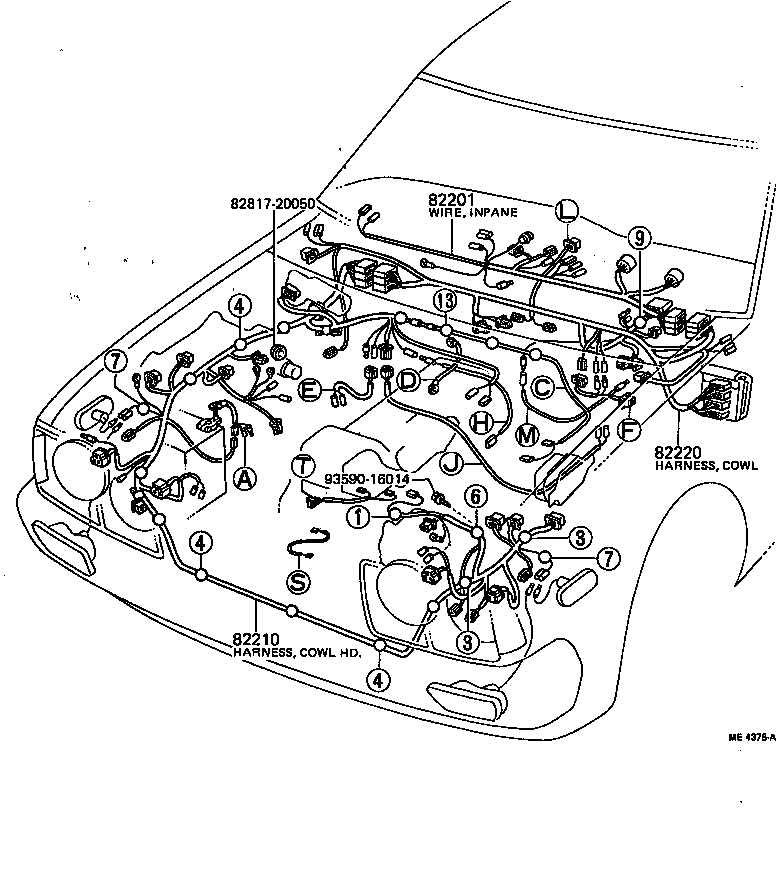

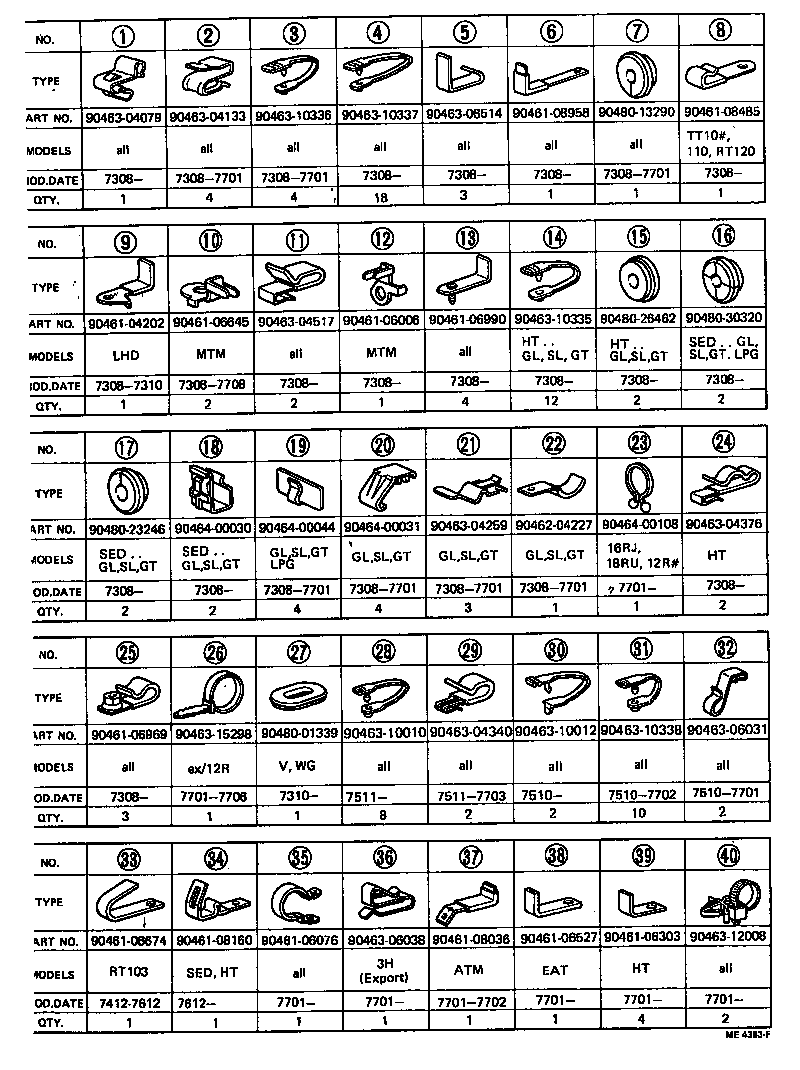

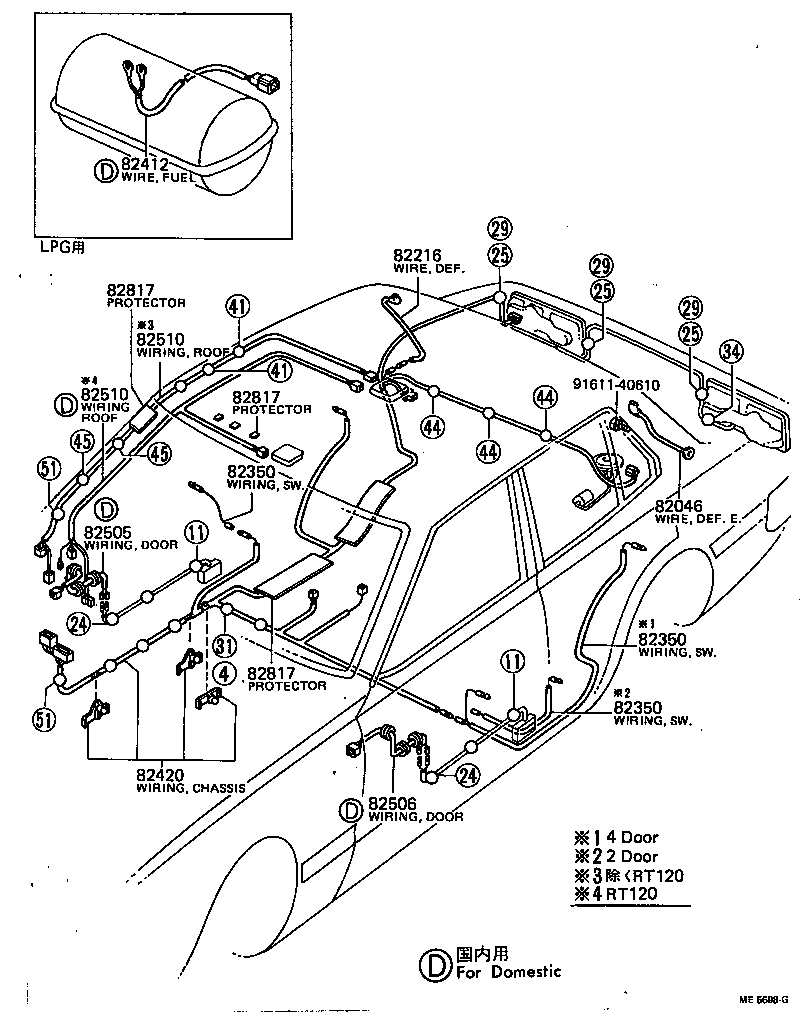

Figure ME4377F ME4377F 1973-08 → 1974-01 Figure ME4377F ME4377F 1974-01 → 1977-01 Figure ME4378A ME4378A 1974-01 → 1977-01 Figure ME5697G ME5697G 1977-01 → 1979-05 Figure ME4381E ME4381E 1973-08 → 1979-05 Figure ME5696A ME5696A 1973-08 → 1979-05 Figure ME4379E ME4379E 1973-08 → 1977-01 Figure ME5698G ME5698G 1977-01 → 1979-05 Figure ME4380 ME4380 1973-08 → 1977-01 Figure ME5699F ME5699F 1977-01 → 1979-05 Figure ME4383F ME4383F 1973-08 → 1979-05 Figure ME6200D ME6200D 1977-01 → 1979-05

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82011 Wiring Assy, Brake Warning System
82046 Wire Sub-assy, Rear Window Defogger Earth
82050 Wire Assy, Engine
82201 Wiring Sub-assy, Instrument Panel
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82211 Wire, Heater Blower Fan Switch
82215 Wire, Parking Brake Lamp Switch
82216 Wire, Rear Window Defogger
82219 Wire, Thermo Sensor
82220 Harness Assy, Wiring Cowl
82221 Wire, Oil Pressure Switch
82221A Wire, Oil Plessure (FOR TANDEM MASTER CYLINDER)
82222 Wire, Heat Gage
82259 Wire, Distributor
82310 Wiring Assy, TO Back UP Lamp Switch
82350 Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR)
82371 Wire, Wiper Relay
82375 Wire, Wiper Switch
82392 Wire, Glove Box Lamp Switch
82410 Harness Assy, Wiring TO Rear Lamp
82420 Wiring Assy, Chassis
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82510 Wiring Assy, Roof
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
