Toyota Corona
1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe
Discontinued model
Data version 1979-05

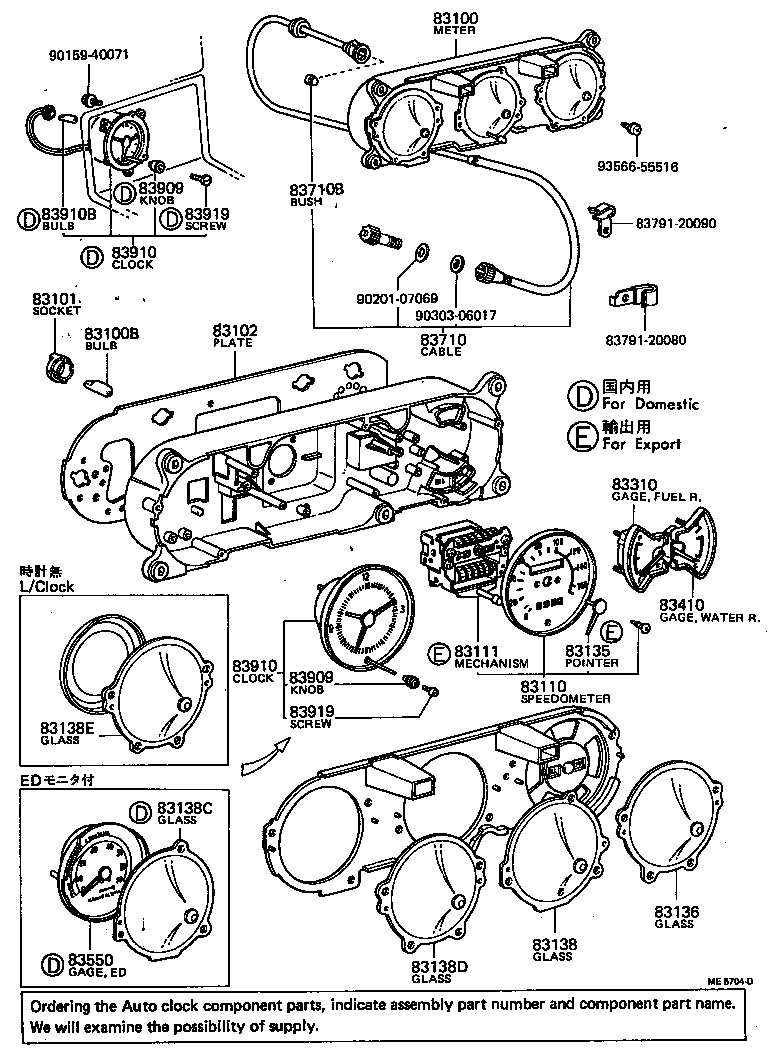

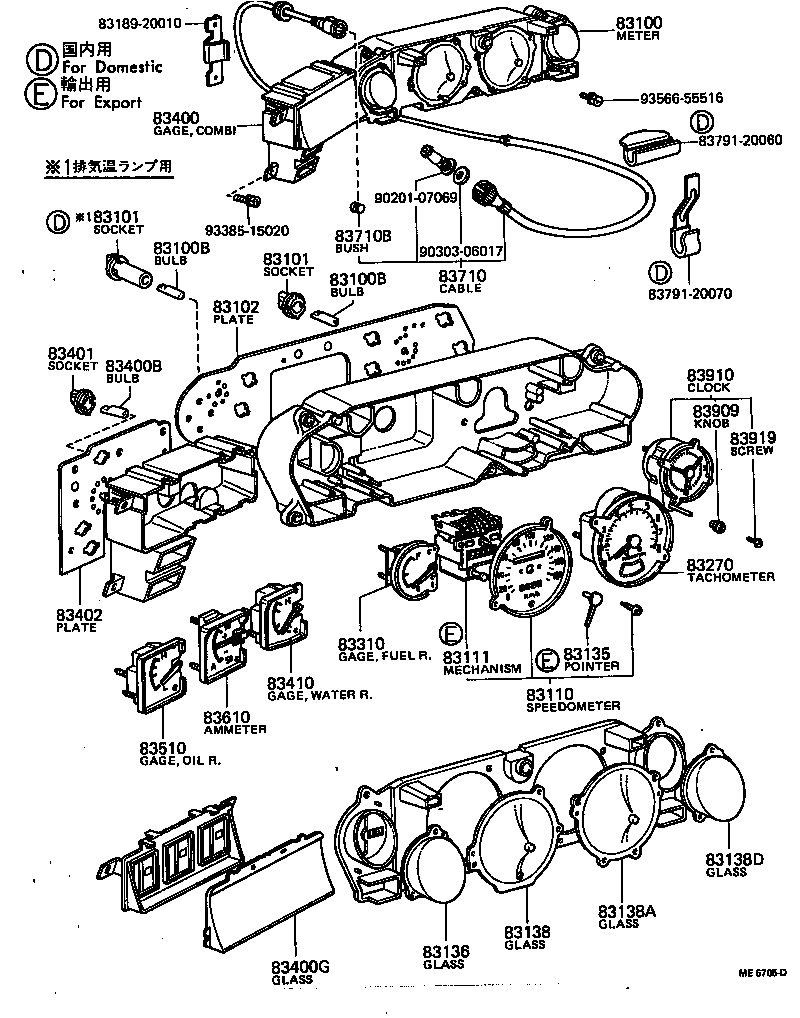

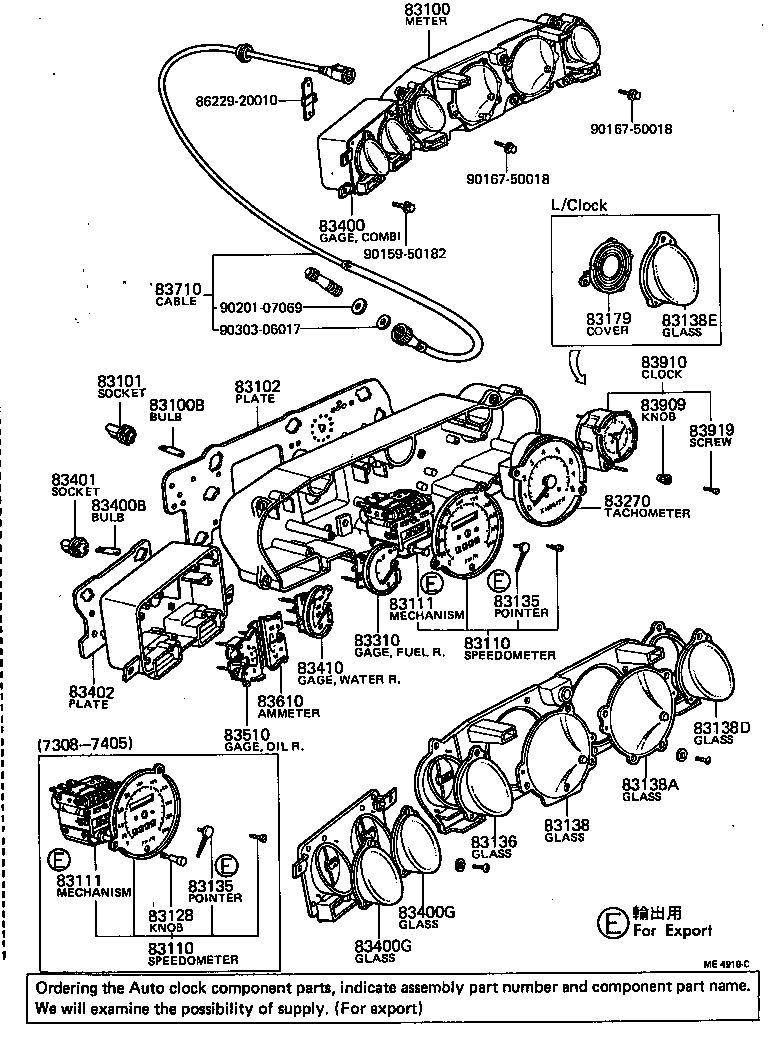

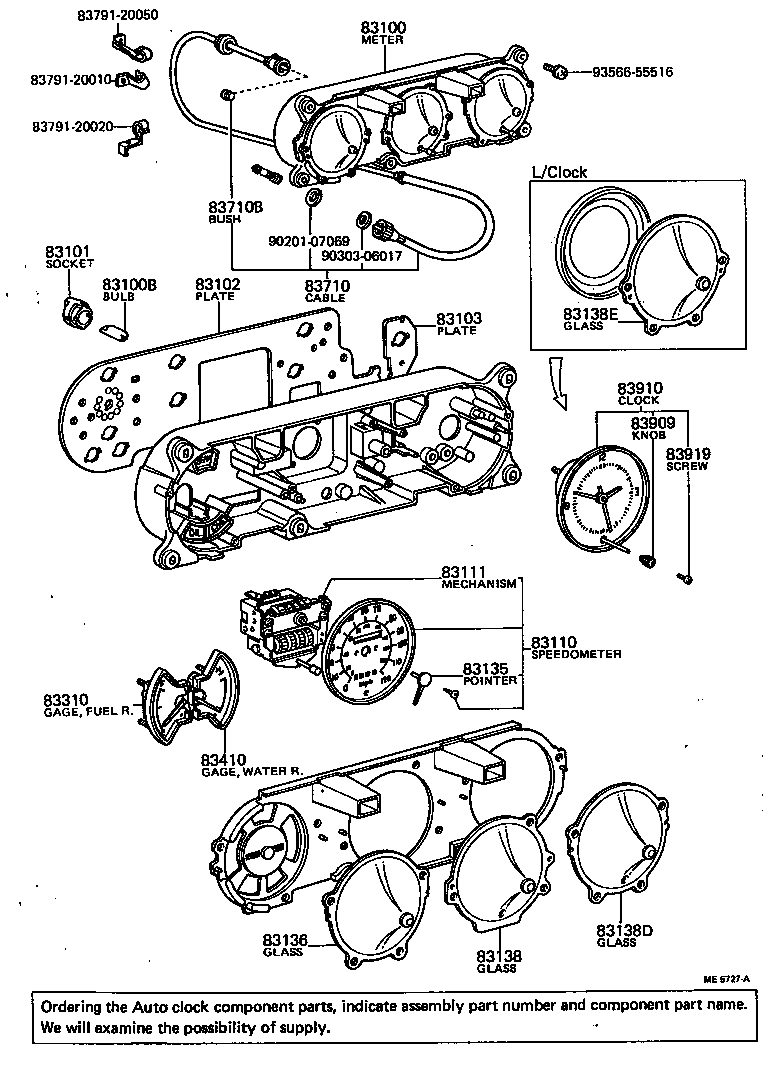

Meter
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83110 | Speedometer Assy |
| 83111 | Mechanism, Speedometer |
| 83128 | Knob, Trip Counter |
| 83135 | Pointer, Speedometer |
| 83136 | Glass, Gage Meter |
| 83138 | Glass, Speedometer |
| 83138A | Glass, Tachometer |
| 83138D | Glass, Clock |
| 83138E | Glass, Meter Cover |
| 83179 | Cover, Combination Meter, Hole |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83400 | Gage Assy, Combination |
| 83400B | Bulb, Combination Gage |
| 83400G | Glass, Combination Gage |
| 83401 | Socket Sub-assy, Combination Gage Bulb |
| 83402 | Plate Sub-assy, Combination Gage Circuit |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83510 | Gage Assy, Oil Pressure Receiver |
| 83610 | Ammeter Assy |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710B | Bush, Speedometer Drive Cable |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
