Toyota Corona

1973-08 → 1979-05 · chassis RT10#,11# · catalogue 261230 · Europe

Discontinued model Data version 1979-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

61 part groups · 11 illustrations

Illustrations

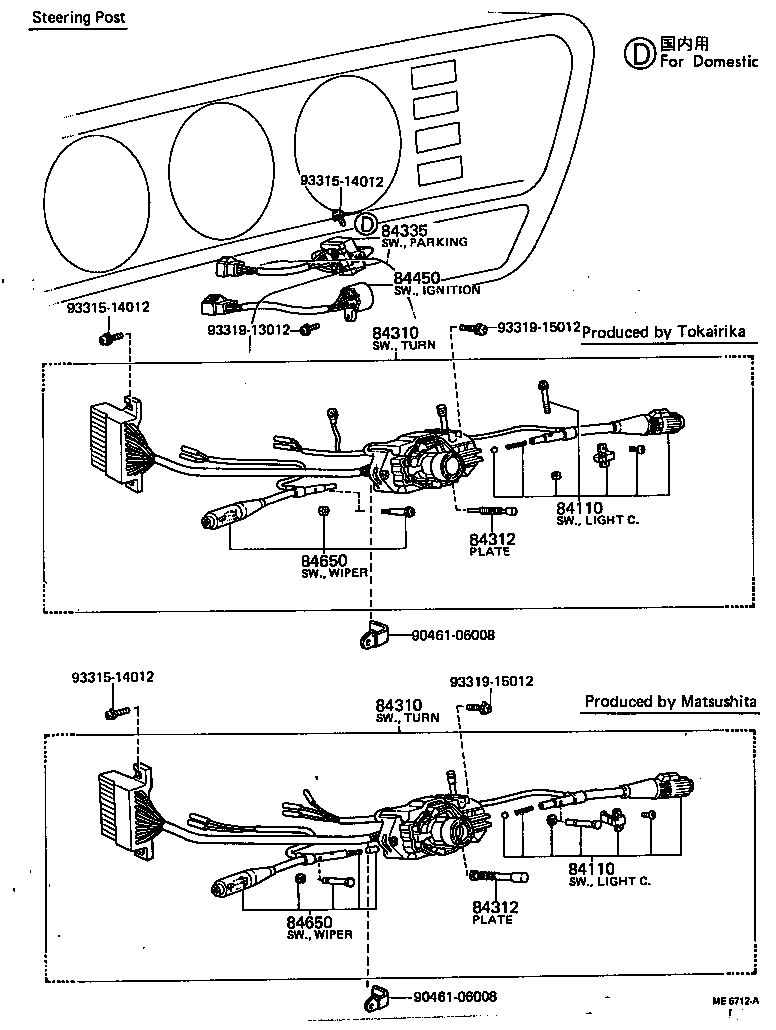

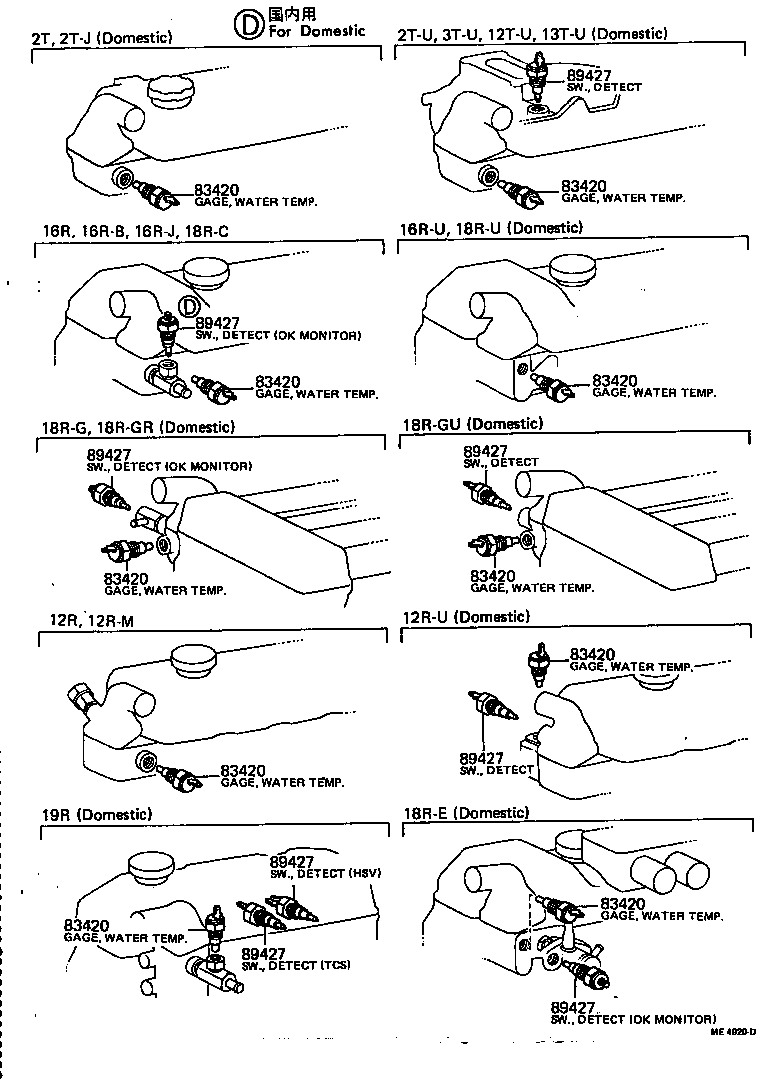

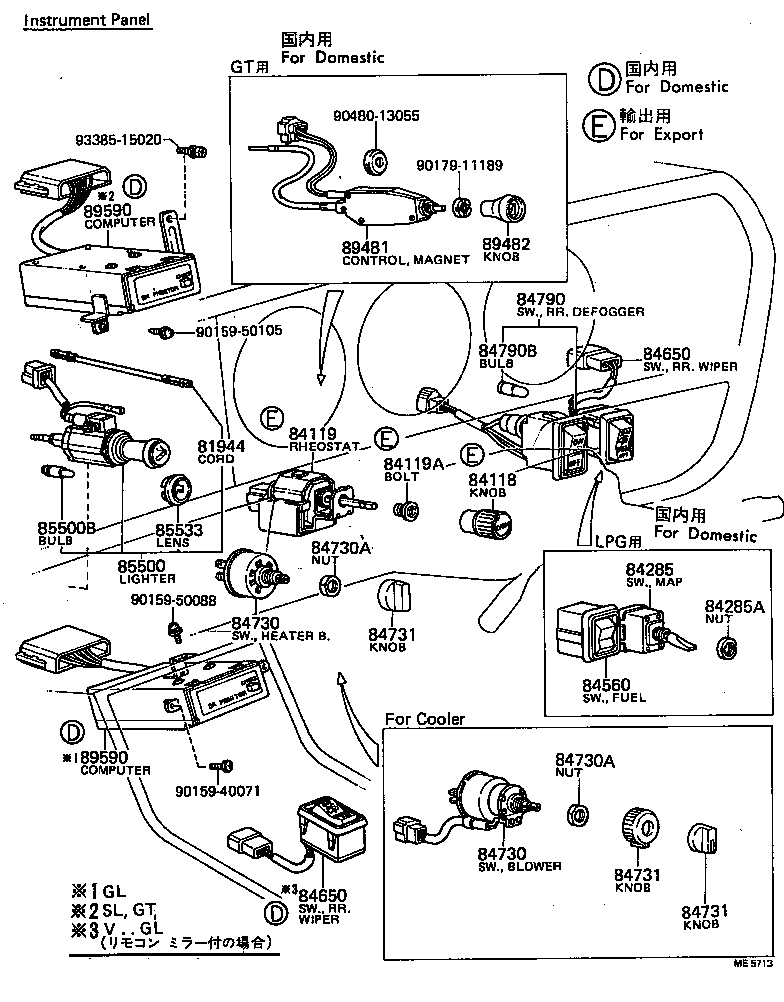

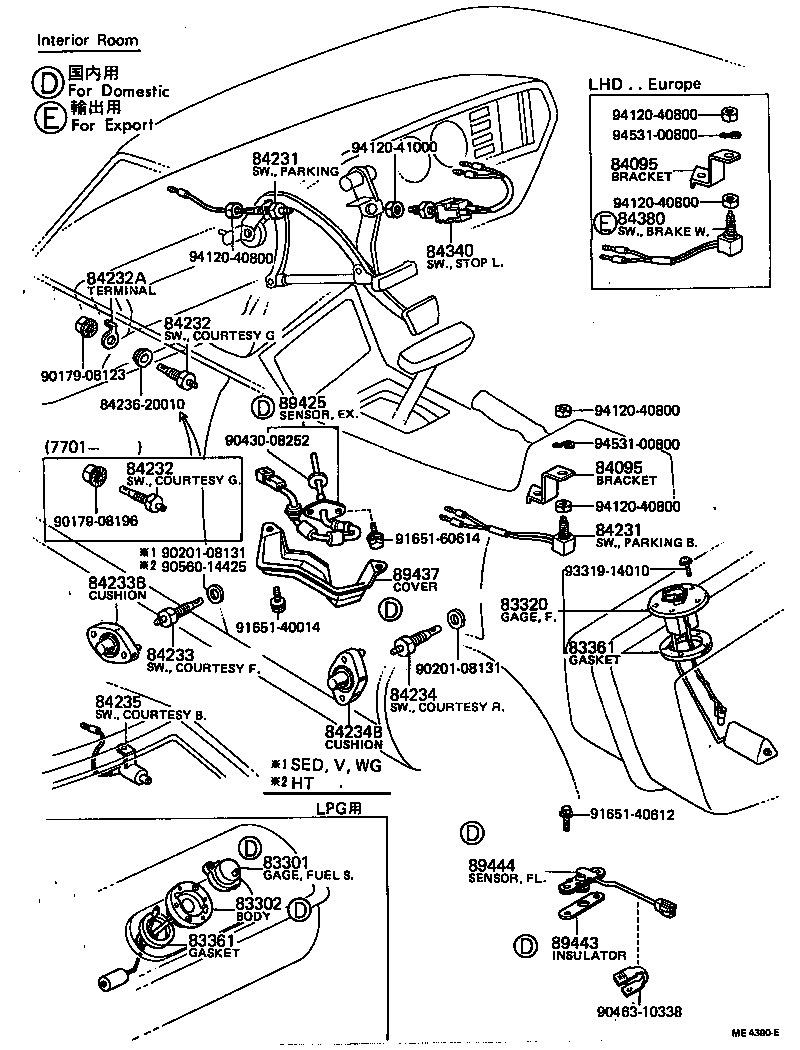

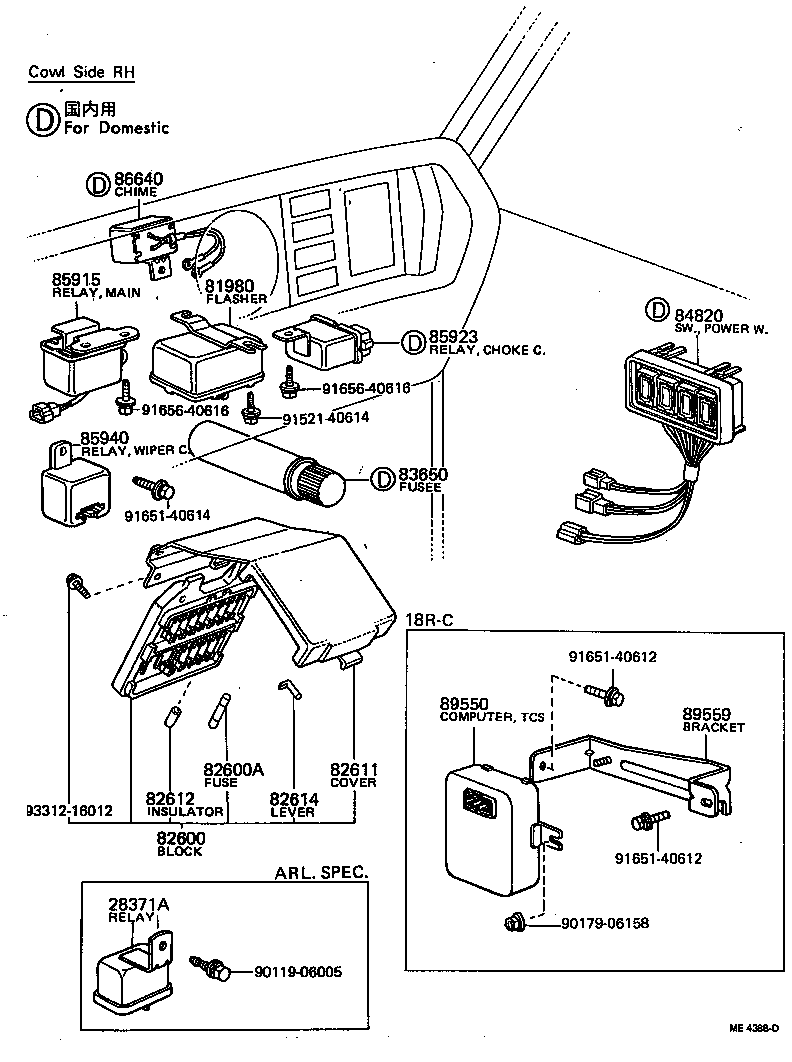

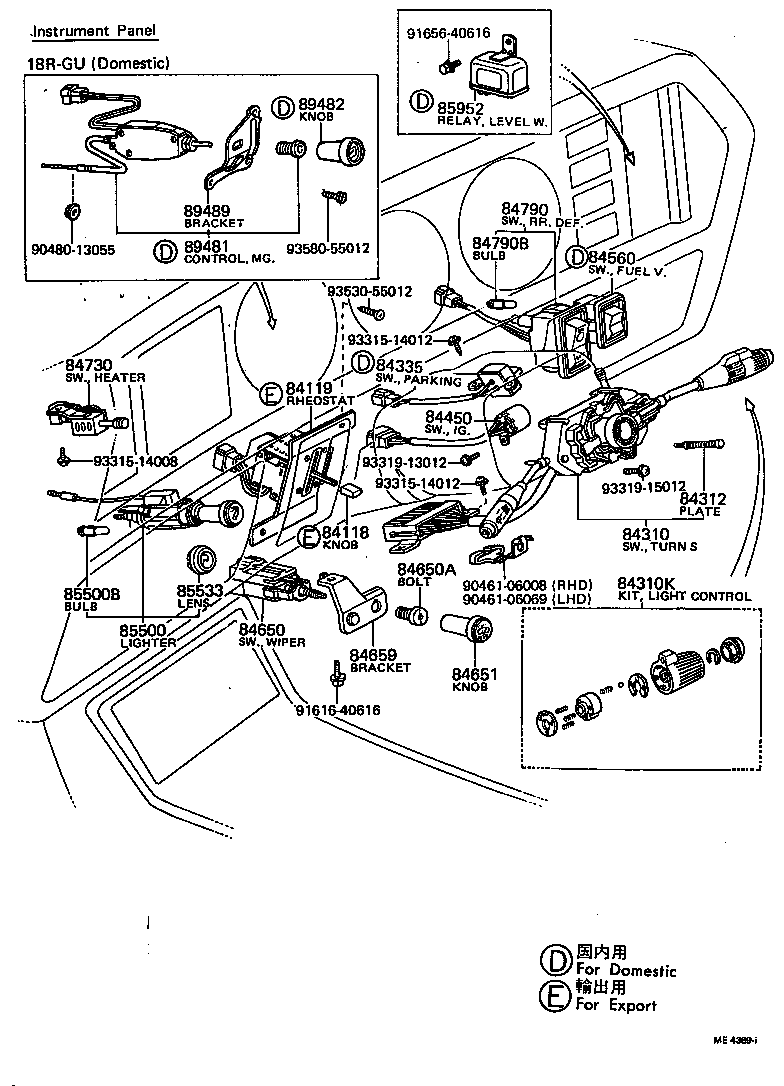

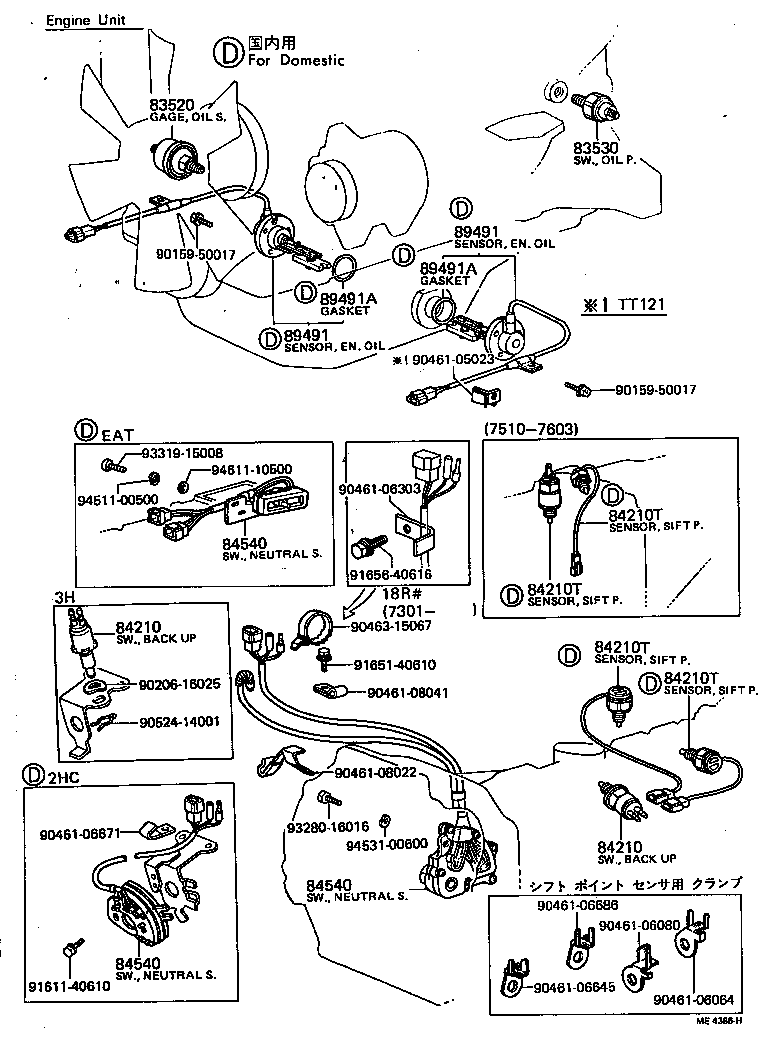

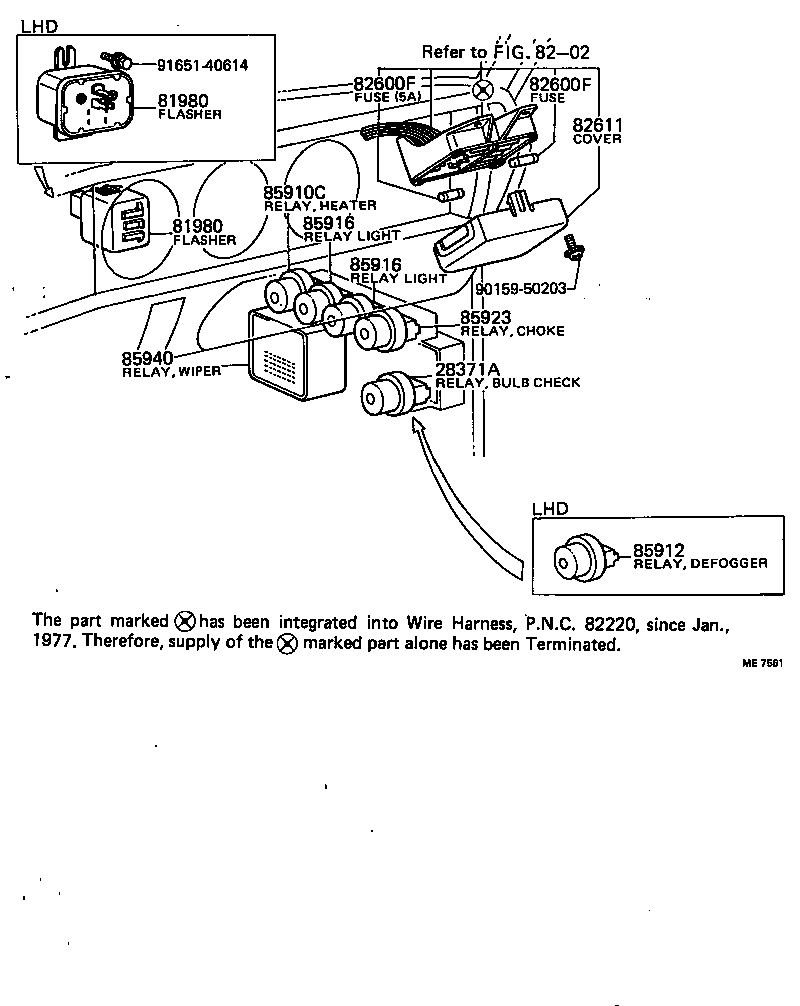

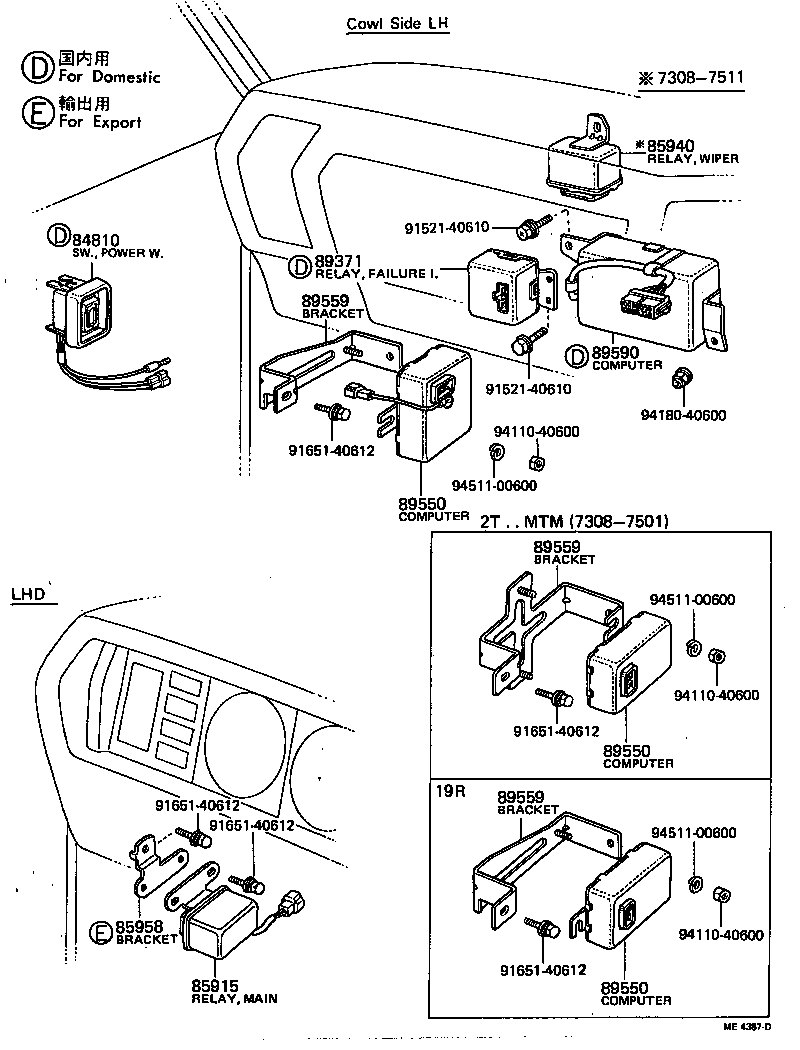

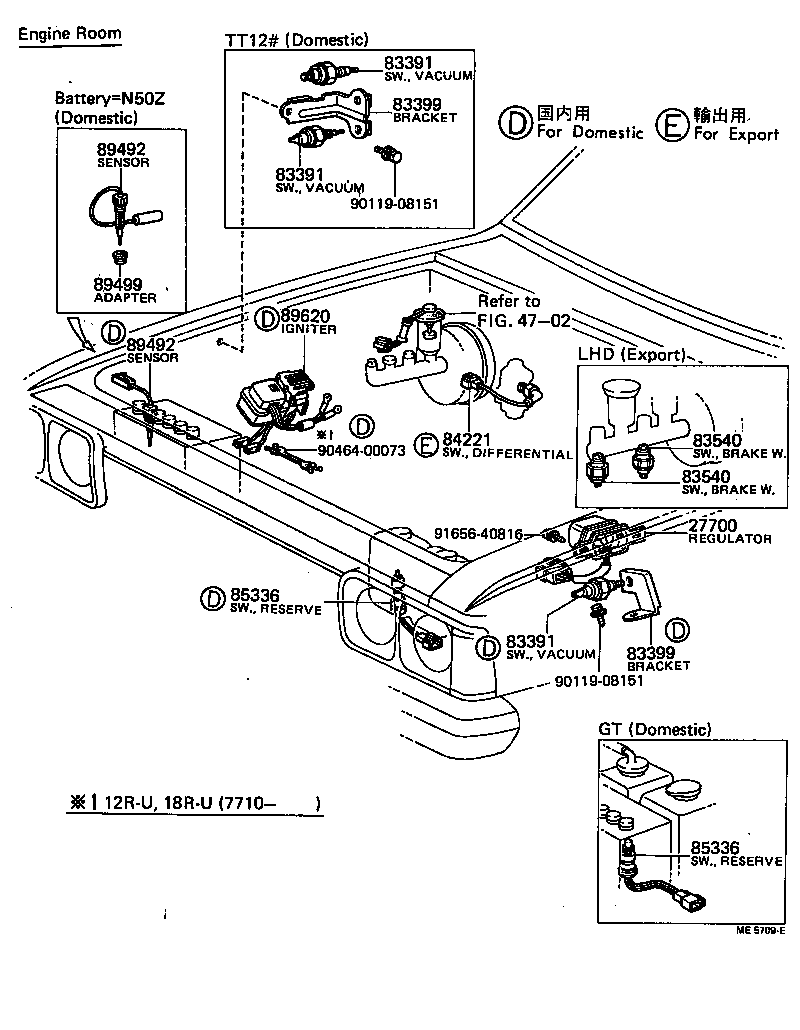

Figure ME4385C ME4385C 1973-08 → 1977-01 Figure ME5709E ME5709E 1977-01 → 1979-05 Figure ME4920D ME4920D 1973-08 → 1979-05 Figure ME4386H ME4386H 1973-08 → 1979-05 Figure ME4387D ME4387D 1973-08 → 1977-01 Figure ME4388D ME4388D 1973-08 → 1977-01 Figure ME7561 ME7561 1977-01 → 1979-05 Figure ME4389I ME4389I 1973-08 → 1977-01 Figure ME5712A ME5712A 1977-01 → 1979-05 Figure ME5713 ME5713 1977-01 → 1979-05 Figure ME4390E ME4390E 1973-08 → 1979-05

Part groups

PNCDescription
27700 Regulator Assy, Generator
28371A Relay, Bulb Check
81944 Cord, Optical Fiber
81980 Flasher Assy, Turn Signal
82600 Block Assy, Fuse
82600F Fuse, Fuse Block
82611 Cover, Fuse Block
82612 Insulator, Fuse Block Terminal
82614 Lever, Fuse
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83420 Gage Assy, Water Temperature Sender
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83540 Switch Assy, Brake Warning (FOR TANDEM MASTER CYLINDER)
84095 Bracket Sub-assy, Hand Brake Signal Switch
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84119A Bolt OR Nut, Rheostat Control Set
84210 Switch Assy, Back-up Lamp
84221 Switch Assy, Differential Valve
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84231 Switch Assy, Courtesy Lamp (FOR PARKING BRAKE)
84232 Switch Assy, Courtesy Lamp (FOR GLOVE BOX)
84232A Terminal, Courtesy Switch (FOR GLOVE BOX)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B Cushion, Courtesy Switch (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84234B Cushion, Courtesy Switch (FOR REAR DOOR)
84235 Switch Assy, Courtesy Lamp(FOR BACK DOOR)
84310 Switch Assy, Turn Signal
84310K Switch Kit, Light Control
84312 Plate, Horn Contact
84340 Switch Assy, Stop Lamp
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84650A Bolt OR Nut, Windshield Wiper Switch Set
84651 Knob, Windshield Wiper Switch
84659 Bracket, Rear Wiper Switch
84730 Switch Assy, Heater Blower
84730A Nut, Heater Blower Switch
84731 Knob, Heater Blower Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85915 Relay, Main
85916 Relay, Light Control
85923 Relay, Choke Control
85926 Relay, Headlamp Dimmer
85940 Relay Assy, Windshield Wiper
85958 Bracket, Main Relay
86530 Relay Assy, Horn
89550 Computer Assy, Emission Control
89559 Bracket, Emission Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
